【Technology Outlook】The PCBA Revolution in Edge AI Devices: How to Build High-Performance Hardware Platforms for Smart Cameras and AI Boxes

As artificial intelligence moves from the cloud to the edge, more computer vision, voice processing, and industrial control tasks are being executed directly on local devices. Whether it is a smart camera, industrial AI box, edge gateway, or embedded inference terminal, competitive performance depends not only on algorithms, but also on the quality of the underlying PCBA (Printed Circuit Board Assembly).

Compared with conventional electronics, edge AI devices impose significantly higher demands on PCBA design, including high-speed data transmission, high-power SoCs, advanced thermal management, electromagnetic compatibility, and long-term operational stability. This article provides an engineering-focused analysis of the key technologies involved in designing and manufacturing PCBAs for AI hardware.

1. Why Edge AI Devices Demand More from PCBA Design

Edge AI products typically integrate the following modules:

  • High-performance AI processors (such as NVIDIA Jetson, Rockchip, and Intel SoCs)
  • DDR4/DDR5 high-speed memory
  • eMMC and NVMe SSD storage
  • Gigabit or 10 Gigabit Ethernet
  • MIPI CSI camera interfaces
  • Wi-Fi, Bluetooth, and 5G communication modules

When these modules operate simultaneously, they create several engineering challenges:

  1. Complex high-speed signal routing
  2. High power consumption and concentrated heat density
  3. Severe EMI concerns
  4. Multi-rail power architecture complexity
  5. Strict long-term reliability requirements

As a result, edge AI PCBA design is fundamentally a multidisciplinary challenge involving signal integrity, power integrity, thermal engineering, reliability, and advanced manufacturing.

2. High-Speed PCB Design: The Foundation of Stable AI Performance

2.1 DDR Routing Design

DDR4 and DDR5 memory interfaces operate at several thousand MT/s, requiring highly disciplined PCB design.

Key design techniques include:

  • Length matching
  • Fly-by topology
  • Controlled impedance routing
  • Via stub optimization

Even minor layout issues can cause memory training failures, system crashes, or reduced performance.

2.2 MIPI CSI and DSI Interfaces

Camera and display interfaces typically use MIPI differential signaling.

Critical design considerations include:

  • 100 Ω differential impedance control
  • Differential pair length matching
  • Minimizing via transitions
  • Maintaining continuous reference planes

2.3 PCIe and USB 3.x

Edge AI devices often use PCIe to connect NVMe SSDs, accelerator cards, or high-speed NICs.

Key parameters to monitor include:

  • Insertion loss
  • Return loss
  • Crosstalk

3. Power Integrity (PI): The Core of AI SoC Stability

3.1 Multi-Rail Power Architecture

A typical AI mainboard may require more than ten power rails, including:

  • Core voltage
  • DDR voltage
  • I/O voltage
  • Analog power
  • RF power

3.2 Decoupling Strategy

A robust decoupling network generally includes:

  • Bulk capacitors for low-frequency ripple
  • MLCCs for mid- and high-frequency noise
  • High-frequency capacitors placed close to power pins

3.3 PDN Analysis

Power Distribution Network (PDN) simulation is used to evaluate impedance across frequency and ensure stable power delivery under dynamic loads.

4. Thermal Design: The Key to Unlocking AI Performance

4.1 Major Heat Sources

Typical heat-generating components include:

  • AI SoCs and NPUs
  • PMICs
  • DDR memory
  • NVMe SSDs

4.2 Thermal Management Solutions

Common approaches include:

  • Large copper pours
  • Thermal via arrays
  • Heat sinks and fans
  • Vapor chambers

4.3 Thermal Throttling Risks

If cooling is insufficient, AI processors may enter thermal throttling mode, significantly reducing inference throughput.

5. Electromagnetic Compatibility (EMC): Ensuring Stable Operation in Complex Systems

5.1 Major EMI Sources

  • High-frequency clocks
  • DC-DC converters
  • Wi-Fi and 5G modules

5.2 EMC Design Techniques

  • Solid ground planes
  • Clock shielding and isolation
  • Input and output filtering
  • Functional partitioning

5.3 Pre-Compliance Testing

Recommended tests before mass production include:

  • Radiated emissions
  • Conducted emissions
  • ESD testing

6. Recommended PCB Stackup

A typical 8-layer stackup may consist of:

  1. Signal
  2. Ground
  3. Signal
  4. Power
  5. Power
  6. Signal
  7. Ground
  8. Signal

This configuration provides strong SI and PI performance while helping to control EMI.

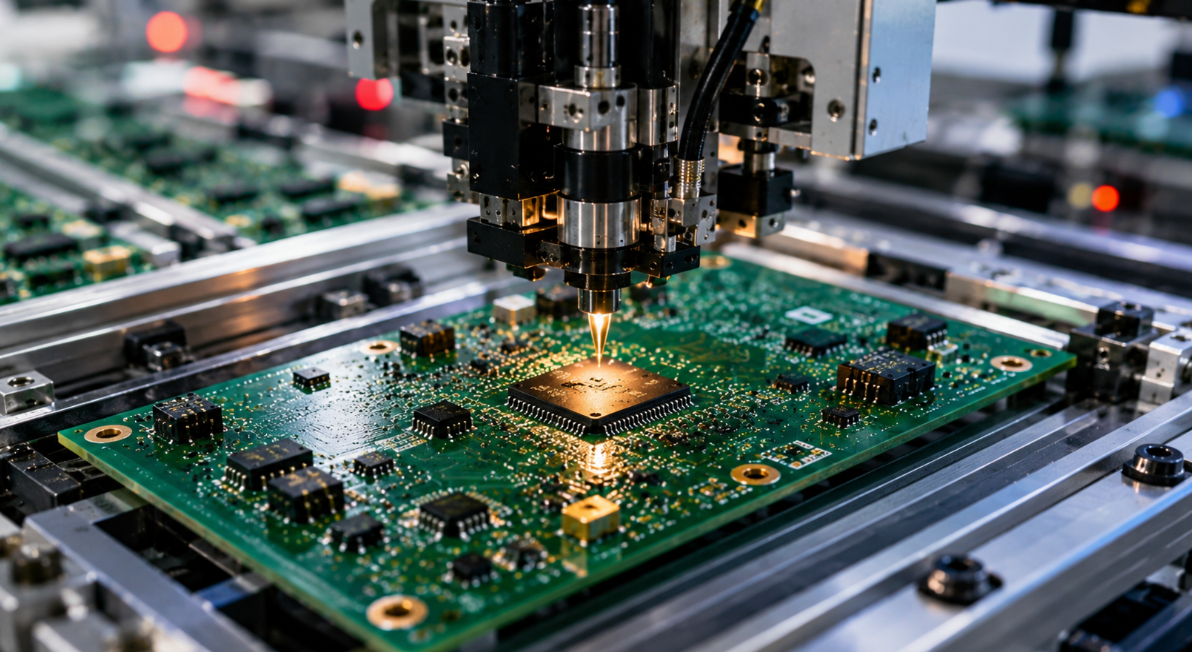

7. PCBA Manufacturing Challenges

7.1 Fine-Pitch BGA Assembly

AI SoCs are commonly packaged in high-pin-count BGAs, requiring:

  • X-ray inspection
  • Precise reflow profile control
  • Advanced BGA rework capability

7.2 Miniaturized Components

0402, 0201, and even 01005 packages are widely used, demanding highly accurate SMT equipment.

7.3 Cleanliness and Protection

For industrial applications, additional measures may include:

  • Ionic contamination testing
  • Conformal coating

8. Reliability Validation

Edge AI devices are often expected to operate continuously 24/7.

Recommended qualification tests include:

  • Thermal cycling
  • Burn-in testing
  • HALT (Highly Accelerated Life Testing)
  • Vibration testing

9. Case Study: Key Design Considerations for a Smart Camera Mainboard

A typical 4K AI camera mainboard may include:

  • 8-layer PCB
  • Rockchip RK3588 processor
  • LPDDR4X memory
  • Dual MIPI CSI interfaces
  • Gigabit Ethernet
  • Wi-Fi 6

Primary design challenges:

  • DDR routing and timing closure
  • NPU thermal management
  • MIPI signal integrity
  • PoE power noise suppression

After simulation and optimization, the platform can achieve 72 hours of continuous operation without thermal throttling.

10. Future Trends in Edge AI PCBA Design

10.1 Higher Integration

System on Module (SoM) and System in Package (SiP) solutions will continue to gain adoption.

10.2 Faster Interfaces

PCIe Gen5, DDR5, and 10G Ethernet are becoming increasingly common.

10.3 Greater Reliability Requirements

As AI hardware expands into industrial automation, transportation, and security applications, expectations for PCBA quality and reliability will continue to rise.

In the era of edge AI, competition is no longer defined solely by algorithms. Hardware engineering capability has become equally critical.

A well-designed PCBA enables AI processors to deliver maximum performance while maintaining stable operation in demanding environments.

For electronics manufacturers, mastering high-speed design, thermal management, EMC, and high-reliability assembly processes is essential to entering and succeeding in the AI hardware market.

If you are developing smart cameras, industrial AI boxes, or other edge computing devices, building a systematic engineering approach at the PCBA design stage will play a decisive role in your product’s commercial success.
