A Perfectly Assembled PCBA Can Still Fail: Why Firmware Programming Is the Missing Manufacturing Step
A PCB can pass visual inspection.
Every component can be correctly placed.
The solder joints can look perfect.
AOI can report no obvious assembly defects.
And yet, when the PCBA is powered on, nothing happens.
No communication.
No control signal.
No sensor response.
No user interface.
The hardware may be perfectly assembled, but the product still does not work.
The missing link may not be a hardware problem at all.
It may be firmware.
As electronic products become more intelligent, PCBA manufacturing is no longer limited to placing components and forming solder joints. Microcontrollers, processors, communication chips, sensors, and embedded systems increasingly require software to become functional products.
This creates a new manufacturing reality:
A PCBA is not truly finished when the components are soldered. It is finished when the hardware and firmware work together.
That is why firmware programming is becoming an increasingly important part of modern PCBA manufacturing.
What Is Firmware Programming in PCBA Manufacturing?
Firmware programming is the process of loading embedded software into a programmable device installed on the PCBA.
The target device may include:
- Microcontrollers
- Microprocessors
- SoCs
- DSPs
- Communication modules
- Memory devices
- Embedded controllers
The firmware may control:
- Hardware initialization
- Sensor communication
- Motor control
- Power management
- Communication protocols
- User interfaces
- Data processing
- Security functions
Depending on the product, firmware may be loaded through interfaces such as:
JTAG, SWD, UART, SPI, I²C, ISP, USB, or dedicated programming interfaces.
The exact programming method depends on the processor architecture, bootloader design, PCB layout, and manufacturing requirements.
Why Hardware Assembly Alone Is Not Enough
Traditional PCB assembly focuses heavily on physical manufacturing.
The process may include:
PCB Fabrication → Solder Paste Printing → SMT Placement → Reflow → Inspection → Testing
But intelligent electronics require another layer:
Firmware Programming
Consider a motor control board.
The PCB may contain:
- MCU
- MOSFETs
- Gate drivers
- Current sensors
- Communication interface
- Power management circuit
Every component may be soldered correctly.
But without firmware, the MCU does not know:
- How to initialize the peripherals
- How to read current feedback
- How to control the motor
- How to communicate with the host system
- How to respond to fault conditions
The hardware exists.
The electronics are assembled.
But the product is not operational.
This is why firmware programming should be treated as a manufacturing process rather than an optional final step.
Where Does Firmware Programming Fit Into PCBA Production?
Firmware can be programmed at different stages depending on the product architecture.
One common workflow is:
PCB Assembly → AOI → Firmware Programming → Functional Test
Another approach may program certain devices before final assembly.
The best sequence depends on the product.
Programming too early may create unnecessary handling or expose programmed devices to additional manufacturing operations.
Programming too late may make fault isolation more difficult.
For many products, the most useful strategy is to connect firmware programming directly with functional testing.
This creates a closed manufacturing loop:
Program → Boot → Test → Verify → Record
JTAG, SWD, UART and Other Programming Interfaces
Different embedded platforms use different programming methods.
JTAG
JTAG is widely used for debugging, programming, and testing digital systems.
It can provide access to processor-level functions and is particularly useful during development and engineering validation.
SWD
Serial Wire Debug, or SWD, is commonly used with ARM-based microcontrollers.
It requires fewer physical connections than traditional JTAG while providing programming and debugging capabilities.
UART
UART is often used for communication and bootloader-based firmware updates.
It can be particularly useful when the target device supports serial programming.
SPI and I²C
These interfaces may be used for programming or configuring external memory and peripheral devices, depending on system architecture.
The important point is that the programming interface should be considered during PCB design.
A PCBA cannot be efficiently programmed if the required programming access was never properly designed into the board.
Programming Points Should Be Designed Into the PCB
One of the most overlooked aspects of firmware programming is the physical interface between the programming equipment and the PCB.
Engineers may use:

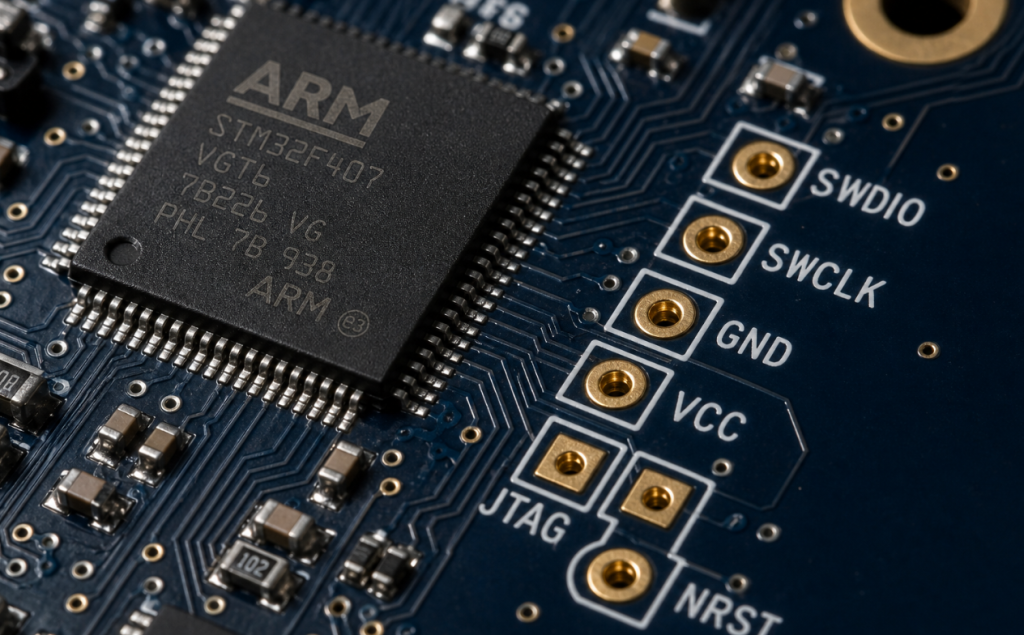

- Test pads
- Programming headers

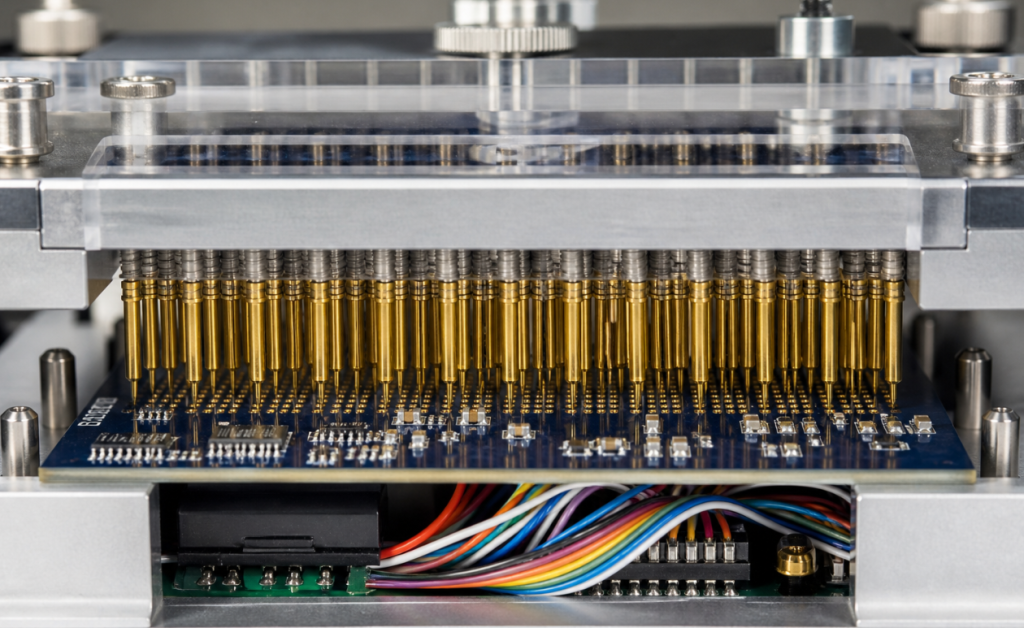

- Spring-loaded pogo pins
- Bed-of-nails fixtures
- Custom programming fixtures
For high-volume manufacturing, pogo-pin fixtures can provide repeatable electrical contact without requiring permanent connectors on every board.
This can reduce unnecessary BOM cost and simplify production.
However, programming points require careful PCB layout.
Engineers need to consider:
- Pad spacing
- Probe accessibility
- Board edge clearance
- Signal integrity
- Fixture alignment
- Ground reference
- Mechanical interference
Programming is therefore connected directly to PCB design.
The Manufacturing Fixture Is Part of the Programming System
A firmware programming fixture is more than a mechanical holder.
It can combine:
Mechanical Positioning + Electrical Contact + Programming Interface + Process Control
A fixture may automatically establish connections to:
- Power
- Ground
- SWD
- JTAG
- UART
- Reset
- Boot mode pins
Once the PCBA is positioned, the programming equipment can communicate with the target device.
This makes the process repeatable.
For production environments, repeatability is critical.
An operator manually connecting wires to every board may work for a prototype.
It becomes inefficient and error-prone at higher production volumes.
Firmware Version Control Becomes a Manufacturing Requirement
Imagine producing 10,000 PCBAs.
The first 5,000 units use firmware version V1.2.
The next 5,000 use V1.3.
If the production records do not clearly identify which firmware was programmed into each PCBA, future troubleshooting becomes difficult.
This is why firmware version control should be connected with manufacturing records.
A production database may record:
- PCB serial number
- Firmware version
- Hardware revision
- Programming timestamp
- Programming result
- Operator or machine ID
- Test result
This creates a digital relationship between the physical PCBA and its software configuration.
Hardware Revision and Firmware Compatibility
Firmware does not exist independently from hardware.
A firmware version developed for PCB Revision A may not work correctly on PCB Revision B.
A hardware change could involve:
- MCU replacement
- Sensor change
- Pin assignment modification
- Power circuit revision
- Communication interface update
Even a seemingly small PCB change can affect firmware behavior.
Therefore, manufacturers should control the relationship between:
Hardware Revision ↔ Firmware Version
This prevents incompatible software from being loaded onto the wrong PCBA.
What Happens When Programming Fails?
A failed programming operation does not necessarily mean the PCBA is defective.
Potential causes include:
- Incorrect firmware file
- Incorrect programming interface
- Poor electrical contact
- Insufficient power
- Wrong boot mode
- Communication failure
- MCU protection settings
- Corrupted memory
- Fixture alignment problems
This is where automated programming systems become valuable.
Instead of simply reporting:
“Programming Failed”
a better manufacturing system can identify the failure stage.
For example:
Power Check → Device Detection → Memory Erase → Firmware Download → Verification → Boot Test
This makes troubleshooting much faster.
Firmware Verification Is More Important Than Firmware Download
Programming a file into memory does not automatically prove that the correct firmware was successfully installed.
A robust programming process may include verification.
The system can compare:
- Firmware checksum
- CRC
- Hash value
- Version number
- Device ID
For example:
Expected Firmware Hash ≠ Programmed Firmware Hash
The system can immediately identify a mismatch.
This creates a stronger manufacturing control than simply checking whether the programming tool displayed “Success.”
Firmware Programming and Functional Testing Should Work Together
Firmware programming becomes much more powerful when connected to functional testing.
A typical workflow may be:
1. Program Firmware
↓
2. Verify Firmware
↓
3. Boot Device
↓
4. Initialize Hardware
↓
5. Test Communication
↓
6. Test Inputs and Outputs
↓
7. Record Result
This approach can identify both programming problems and hardware assembly problems.
For example, if the firmware boots but cannot detect a sensor, the problem could involve:
- Incorrect component
- Soldering defect
- PCB trace issue
- Power supply problem
- Sensor address conflict
- Firmware configuration
The test system can help narrow down the failure mechanism.
Firmware Can Also Improve PCBA Testing
Firmware is not only something that gets programmed after assembly.
It can become a testing tool.
A dedicated manufacturing test firmware can instruct the PCBA to perform controlled operations.
For example, it can:
- Activate GPIOs
- Read ADC channels
- Communicate with sensors
- Test communication buses
- Drive motors
- Monitor voltage
- Measure current
- Check memory
- Verify peripheral devices
This creates a direct bridge between hardware and automated testing.
In other words:
Firmware can turn the PCBA itself into a test instrument.
Secure Firmware Provisioning Is Becoming More Important
Connected electronic products increasingly process sensitive data and communicate with external systems.
This creates another manufacturing requirement:
Secure firmware provisioning.
Manufacturers may need to manage:
- Device-specific keys
- Digital certificates
- Secure boot
- Encryption credentials
- Unique device IDs
- Authentication information
Instead of programming identical information into every PCBA, production systems can provision unique data to each device.
This can create a unique identity for every manufactured unit.
For connected products, that identity can later support:
- Device authentication
- Cloud registration
- OTA updates
- Service management
- Product traceability

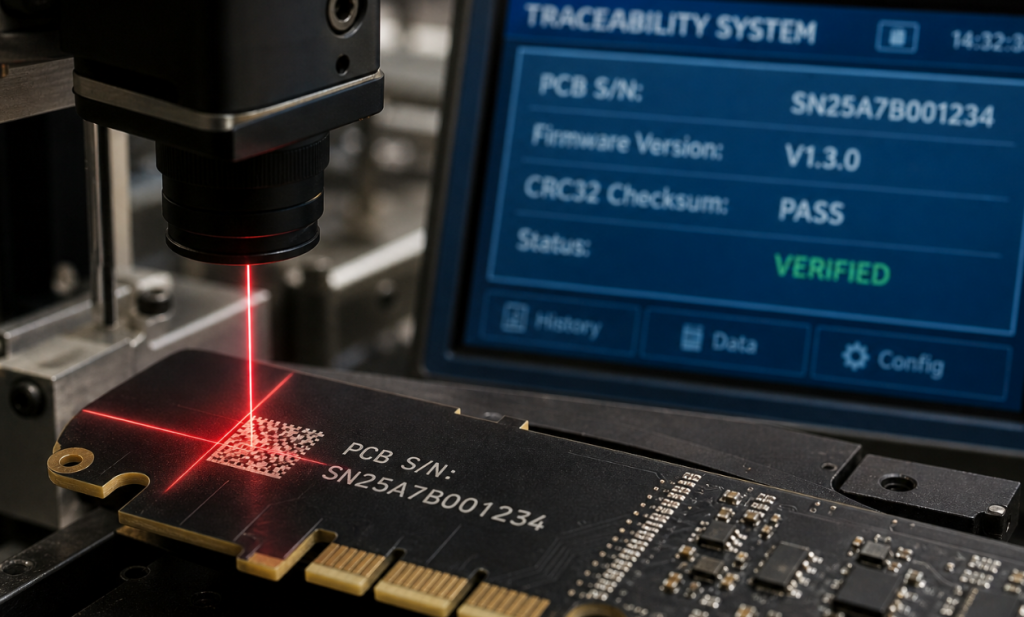

PCBA Traceability Meets Firmware Traceability
Traditional PCBA traceability may record:
PCB → Components → SMT Process → Inspection → Test
Modern intelligent manufacturing can extend this chain:
PCB → Components → Assembly → Firmware → Functional Test → Serial Number
This provides much more useful product information.
If a field failure occurs, engineers may be able to determine:
- Which hardware revision was used
- Which firmware version was installed
- When the board was manufactured
- Which production line assembled it
- What test results were recorded
This can significantly improve failure analysis.
Why Firmware Programming Should Be Planned Early
Firmware programming should not be treated as an afterthought.
During PCB development, engineers should already consider:
- Programming interface
- Debug access
- Test points
- Boot mode
- Reset control
- Fixture accessibility
- Power requirements
- Security requirements
If these requirements are ignored during PCB layout, production programming may later require expensive modifications.
A few test pads designed into the PCB during development can save significant production effort later.
From Prototype Programming to Mass Production
Programming requirements change as production volume increases.
Prototype Stage
Engineers may use:
- Development boards
- USB programmers
- Manual cables
- Debug probes
Speed is less important than flexibility.
Low-Volume Production
A simple fixture can improve repeatability.
Mass Production
Automated programming stations can:
- Detect the PCBA
- Load the correct firmware
- Verify the firmware
- Record serial numbers
- Perform functional tests
- Upload manufacturing data
This is where firmware programming becomes a true PCBA manufacturing process.
The New Definition of a Finished PCBA
The traditional definition of PCBA completion is physical:
All components assembled and soldered correctly.
For intelligent electronics, this definition is incomplete.
A more complete manufacturing chain is:
PCB Fabrication
↓
Component Assembly
↓
Inspection
↓
Firmware Programming
↓
Firmware Verification
↓
Functional Testing
↓
Traceability
↓
Final PCBA
This represents a shift from simply manufacturing an assembled circuit board to manufacturing a functional electronic unit.
The PCBA Is More Than the Hardware
The most interesting change in modern electronics manufacturing is that the boundary between hardware production and software production is disappearing.
A PCB provides the physical architecture.
Components provide electrical functions.
SMT and THT processes create the physical connections.
Firmware gives the system its behavior.
Testing verifies that the entire system works as intended.
That means modern PCBA manufacturing should not stop at soldering.
The real objective is to deliver a board that is:
Assembled → Programmed → Verified → Tested → Traceable
As embedded electronics become more intelligent and connected, firmware programming will become an increasingly important part of the PCBA manufacturing workflow.
The next generation of electronics factories will not simply ask:
“Was every component assembled correctly?”
They will also ask:
“Is every PCBA running the right firmware, with the right identity, and has its complete function been verified?”
Because in modern electronics, a perfectly assembled board is only hardware.
A programmed and verified PCBA is a functioning product.
Leave A Comment
