1. Introduction to Agricultural Laser Receiving Systems

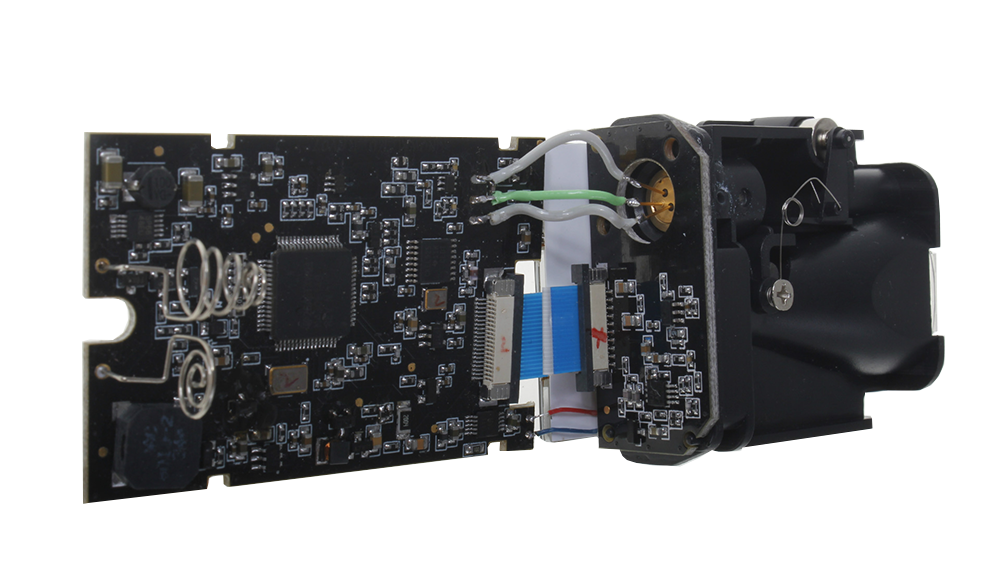

Agricultural automation is developing rapidly, and laser leveling systems play a key role in global agricultural modernization. The Laser Receiving System is a core device used to receive laser signals and perform photoelectric conversion and signal amplification. It is mainly composed of:

  • Optical Receiving System: captures laser signals;
  • Photodetector: converts light into electrical signals;
  • Amplifiers (preamplifier and main amplifier): amplifies weak signals;
  • Circuit Control System: ensures signal stability and anti-interference.

These systems are widely applied in laser leveling, agricultural machinery, and autonomous farming equipment. This article takes an actual project for a Canadian client as an example, analyzing the PCBA (Printed Circuit Board Assembly) of an agricultural laser receiver from design to production.

2. Project Background and Customer Requirements

Our Canadian client has been active in the agricultural laser leveling field since 2005. For this new-generation product, their goal was to enhance system stability and simplify installation. Their requirements included:

PCB Specifications

  • 2-layer PCB
  • Material: TG140
  • Thickness: 1.6mm
  • Copper thickness: 2oz
  • Surface finishing: ENIG (Electroless Nickel Immersion Gold)
  • Solder mask: Green
  • Silkscreen: White
  • Board size: 192mm × 108mm

Manufacturing and Certifications

  • Compliance with IPC-6012 Class 2
  • Hole registration tolerance: ±0.005 inch
  • Conductor width tolerance: ±20%
  • UL approval and RoHS certification

Assembly Requirements

  • Double-sided mounting (SMD + DIP)
  • 13 chips on board
  • More than 55 different components

3. Design Review and Issue Detection

During the initial design review, we identified several critical issues:

3.1 Package Size Mismatch

Some chip packages were oversized compared to the pads, making proper soldering impossible. After reporting to the client, they promptly replaced the components with appropriate models, preventing potential losses.

3.2 Switches Too Close

Two mechanical switches were placed too close together, affecting usability. Our engineers suggested replacing one with a DIP package to ensure spacing and avoid interference.

3.3 Pad and Silkscreen Deviations

Certain edge components had undersized pads, increasing the risk of cold soldering. We optimized the design by enlarging the pads by 1–2mm, ensuring reliable soldering.

4. Strict BOM and Component Management

Since this was a new product design, the BOM (Bill of Materials) included many revisions and specific notes. We carefully verified each detail:

  • Resistors: 1% accuracy (instead of the usual 5%)
  • Capacitors: required to be 8mm in height
  • LEDs: 5mm above the PCB surface for visibility
  • Part numbers and packages: strictly cross-checked to avoid errors

This meticulous process ensured consistent quality and minimized rework risks.

5. PCBA Manufacturing and Assembly Challenges

This laser receiver PCBA required double-sided mounting, combining both SMD (Surface-Mount Devices) and DIP (Through-Hole Devices). The challenges included:

  1. Precision SMD Placement
    • High-density layout required ±0.05mm placement accuracy.
    • Special package components needed customized nozzles for pick-and-place.
  2. DIP Soldering
    • Larger components at board edges risked cold soldering.
    • Pad size adjustments and optimized soldering profiles ensured solid joints.
  3. Testing and Inspection
    • AOI (Automated Optical Inspection) was used to detect soldering defects.
    • Functional testing with laser signal simulation verified performance.

6. Application of Agricultural Laser Leveling Systems

6.1 System Components

  • Laser Transmitter: generates the reference plane or slope.
  • Laser Receiver: mounted on the leveling machine to capture signals.
  • Controller: processes the signal and commands the hydraulic system.
  • Hydraulic Workstation: adjusts blade height for precise leveling.

6.2 Working Principle

The transmitter projects a reference plane. The receiver detects the signal and transmits data to the controller, which then adjusts the hydraulic cylinder to control the blade height, achieving smooth land leveling.

6.3 Advantages

  • Improved irrigation efficiency: minimizes water waste
  • Reduced soil erosion: maintains soil structure
  • Higher crop yield: maximizes farmland utilization
  • Lower labor cost: automation reduces manual workload

7. Market Outlook and Production Capacity

The designed laser receiver has a 300mm size, with a projected production volume of 500 sets per month.

Canada’s agriculture and agri-food industry accounted for 8% of GDP in 2005, with 46 million hectares of farmland (5% of total land area). With the ongoing adoption of automation, demand for laser leveling systems is expected to rise significantly.

Emerging markets such as China and Southeast Asia are also beginning to adopt this technology, creating substantial global opportunities.

From this project, we highlight the following key insights:

  1. Design review is the first defense against costly production issues.
  2. Strict BOM control ensures product consistency and reliability.
  3. Process optimization and quality testing are essential for stable mass production.
  4. Agricultural automation trends will drive widespread adoption of laser leveling systems worldwide.

By providing tailored PCB/PCBA design, prototyping, and mass production services, we aim to support the next generation of agricultural automation solutions and contribute to global farming modernization.
