1. Introduction: From Bare Board to Full Assembly – Where Quality is Truly Tested
Transforming a bare PCB into a fully functional PCBA may seem like a simple task of adding components. In reality, it is one of the most error-prone and complex stages in electronic manufacturing. Even minor negligence can lead to reduced yields, functional failures, and brand reputation damage. This article focuses on practical manufacturing insights to highlight five critical, often overlooked failure points in the assembly process—providing actionable advice for engineering teams and procurement professionals.
2. Why Do Assembly Risks Keep Happening?
Despite the high level of automation in transitioning from PCB to PCBA, hidden risks lurk beneath the surface—ranging from latent defects to human-machine coordination failures. It’s more than just soldering components; it’s a multifaceted process requiring robust control, compatible design, consistent equipment behavior, and sound engineering judgment.
The underlying causes of recurring mistakes include:
- Underestimating production line compatibility during process design;
- Non-closed-loop material control;
- Inadequate compensation for equipment misjudgments;
- Overly simplistic testing setups lacking cross-verification.
Next, we’ll explore five critical areas prone to failure—each with serious implications—and how you can proactively address them for a more stable and reliable assembly process.
3. Five Critical Pitfalls in PCBA Assembly
1. Pad-to-Solder Ratio Misjudgment: Soldered Doesn’t Mean Secured
- Common Oversights:
- Mismatch between pad size and solder paste volume leads to superficial solder joints;
- Inconsistent solder width on multi-lead components causes bridging or tombstoning.
- Potential Impact:
- Components pass functional tests but fail under long-term thermal fatigue;
- Increased rework rates and lowered customer satisfaction.
- Recommendations:
- Build an IPC-compliant database of pad-to-paste ratios for standard reference;
- Predefine soldering profiles per package type and integrate them into SMT programming.
2. Material Traceability Gaps: What Matches Visually May Fail Systemically
- Common Oversights:
- Slight variations within the same batch go unrecorded in traceability logs;
- Substitute parts used without proper BOM updates, causing ERP-floor mismatches.
- Potential Impact:
- Functional inconsistencies become hard to diagnose;
- Batch recalls are nearly impossible to localize.
- Recommendations:
- Implement strict binding between part numbers and unique batch IDs;
- Adopt MES systems for end-to-end traceability from raw material to finished PCBA.
3. Pick-and-Place Path Interference: Hidden Culprit Behind Misalignment
- Common Oversights:
- Multi-rail SMT machines cross-interfere, causing nozzle misplacement;
- Worn or misplaced fiducial markers lead to misaligned vision calibration.
- Potential Impact:
- Slightly offset ICs result in short circuits;
- Large inductors or capacitors placed skewed, compromising solder strength.
- Recommendations:
- Periodically calibrate conveyor paths and visual systems, setting pre-alerts for deviations;
- Enable secondary optical verification for critical components.
4. Soldering Atmosphere Instability: The Invisible Factor in Joint Quality
- Common Oversights:
- Excessive oxygen in the reflow oven disrupts flux activation;
- Improper nitrogen mix degrades solder paste wetting characteristics.
- Potential Impact:
- Solder joints show voids, dullness, or partial bonding;
- Shorter component lifespan and reduced product reliability.
- Recommendations:
- Monitor nitrogen concentration throughout the reflow process in real-time;
- Test solder paste behavior under different atmospheres to optimize selection.

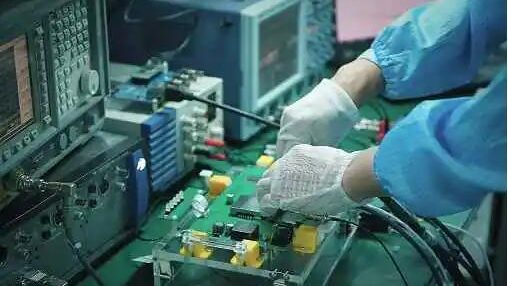

5. Final Inspection Blind Spots: The Defects You Can’t See Hurt the Most
- Common Oversights:
- AOI fails to detect defects under BGA packages;
- ICT doesn’t cover analog high-impedance areas, missing key faults.
- Potential Impact:
- Products fail post-deployment due to intermittent or latent defects;
- Undermined quality control, eroding customer trust.
- Recommendations:
- Integrate X-Ray inspection for BGA and QFN parts;
- Design Functional Circuit Tests (FCT) focused on coverage and reliability, not just function.
4. Precision Manufacturing Happens in the Details
PCBA assembly demands meticulous engineering and well-orchestrated systems. What truly determines product quality isn’t speed or equipment specs—it’s how well you handle the invisible details. Shifting your mindset from “Is it soldered?” to “Is it soldered well?”, and from “Does it work?” to “Will it last?” is key to long-term product success. Don’t let overlooked process flaws become the trigger for widespread failure or customer churn—build quality into every detail, every time.
