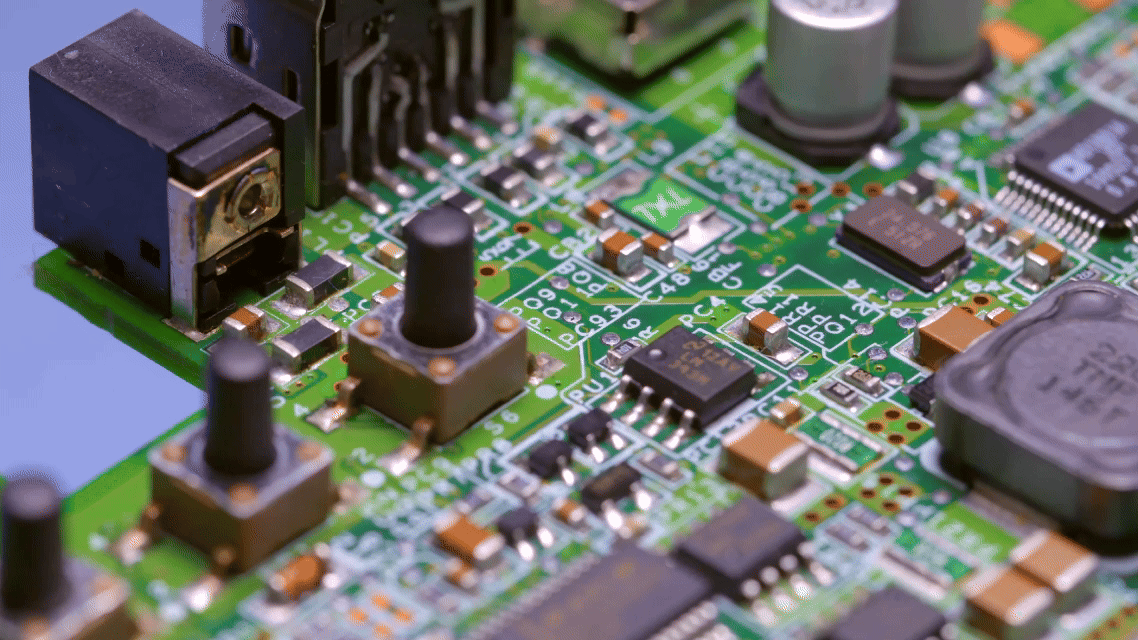

1. Why Do PCBA Defects Occur Frequently?

PCBA (Printed Circuit Board Assembly) is a core process in electronics manufacturing, directly affecting product reliability and lifespan. According to IPC-A-610E standards, over 70% of electronic failures are caused by assembly quality issues, most of which stem from soldering, placement, and material control.

As miniaturization, high-density, and high-speed design trends continue, PCBA faces increasing technical challenges. The ability to control defect rates has become a key benchmark for evaluating suppliers.

2. Common Types of PCBA Defects

2.1 Cold Solder Joints

These appear visually intact but result in poor electrical connections due to incomplete solder melting or component movement. Common causes include insufficient temperature or unstable reflow processes.

Detection methods: AOI (Automated Optical Inspection) for solder joint morphology and ICT (In-Circuit Test) for impedance anomalies.

2.2 Solder Balls

Solder balls often result from excessive solder paste, print misalignment, uneven reflow cooling, or rapid flux vaporization. These can lead to short circuits or leakage, especially in humid environments.

IPC Acceptability: Diameter < 0.13 mm and distance from conductor/solder joint > 0.13 mm.

2.3 Component Misalignment and Misplacement

Placement inaccuracies may arise from vacuum fluctuations, nozzle pressure deviations, or paste collapse. Misplacements often occur due to feeder setup errors or incorrect material loading.

Key Impact: Functional failures, weak solder joints, test failures.

2.4 Pad Lifting and PCB Delamination

These defects usually stem from PCB substrate issues, thermal stress during wave soldering, or excessive rework. Multilayer PCBs are particularly prone to delamination under uneven heating.

3. Root Cause Analysis of Defects

3.1 Improper Process Parameters

Defects such as cold joints and solder cracking often result from inadequate preheat, excessive peak temperature, or improper cooling rates during reflow. Each component type has unique thermal profiles, necessitating tailored reflow settings.

3.2 Inadequate Equipment Maintenance and Calibration

Key equipment like SPI (Solder Paste Inspection), AOI, reflow ovens, and pick-and-place machines require regular calibration. Inaccuracies can lead to poor paste application, misalignment, and unreliable soldering.

Recommendation: Weekly precision checks and quarterly full calibration.

3.3 Material and PCB Design Deficiencies

Issues like PCB warpage, pad misalignment, lack of solder mask openings, and non-standard component packages increase placement and soldering difficulty.

4. Systematic Prevention Measures

4.1 Process Control and Reflow Profile Optimization

Use thermocouples to record full-process temperature and optimize reflow profiles:

  • Ramp-up: <3°C/s to prevent flux splatter;

  • Soak zone: 150–180°C for 60–120 seconds;

  • Reflow zone: Peak temperature between 235–250°C;

  • Cooling: <4°C/s to prevent thermal stress cracks.

4.2 Coordinated Use of SPI, AOI, and X-Ray Inspection

  • SPI: Inspects solder paste thickness and coverage.

  • AOI: Detects solder joint quality, component position, polarity.

  • X-Ray: Examines internal soldering (e.g., BGA) for hidden defects.

Used together, they can achieve over 95% defect coverage.

4.3 Building a Comprehensive Quality Management System (QMS)

Adopt IPC-J-STD-001, ISO 9001, or similar standards, and integrate MES (Manufacturing Execution Systems) for real-time production tracking. Monitor key metrics such as:

  • First Pass Yield (FPY) ≥ 98%

  • Defects Per Million Opportunities (DPMO) ≤ 500

4.4 Implementing DFM/DFX Standards

Design for Manufacturability (DFM) reviews during early development stages help optimize pad layout, via structures, and component spacing. This reduces assembly errors and enhances test coverage.

5. Building a Closed-Loop Defect Prevention System

PCBA defects result from a combination of factors. Even minor deviations at any stage can cause systemic failures. High-reliability manufacturing depends on a comprehensive quality approach that spans design, materials, processes, and testing.

In the future, with the adoption of AI-based inspection and digital twin technology, PCBA quality control will become increasingly predictive and precise—driving the evolution of smart manufacturing.
