In the automotive electronics industry, reliability and precision are paramount. Among the critical components ensuring seamless electronic performance are PCB connectors and connector-based PCBA solutions. Connector PCBA for cars involves integrating specialized automotive connectors with printed circuit boards, ensuring stable electrical performance, mechanical durability, and compliance with automotive industry standards.

This article explores the design specifications, production challenges, cost considerations, and testing strategies involved in producing customized connector PCBA solutions for the automotive sector. With the growing demand for new energy vehicles (NEVs) and intelligent automotive systems, connector PCBAs are increasingly vital for advancing vehicle performance and safety.

Understanding Connector PCBA in Automotive Electronics

What is a PCB Connector?

A PCB connector is an electronic component that connects and secures circuits within printed circuit boards. In automotive applications, PCB connectors:

  • Provide robust clamping force for FPC (Flexible Printed Circuit) cables.
  • Ensure stable current transmission in harsh automotive environments.
  • Support customized designs tailored to automotive motors and electronic control units (ECUs).

Importance in Automobiles

Automotive connectors differ from general connectors due to:

  • High reliability requirements in vibration and temperature extremes.
  • Custom design demands, as connectors often must adapt to unique automotive motor structures.
  • Critical role in conversion zones, bridging power and signal transmission in car electronics.

Design and Manufacturing Specifications

PCB Design Features

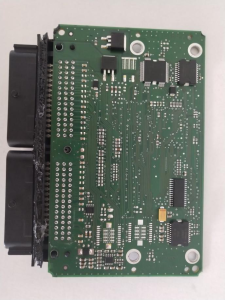

The main board in this project is a 4-layer FR4 PCB with the following specifications:

  • Board Thickness: 1.6 mm
  • Copper Thickness: 2 oz
  • Surface Finish: Lead-Free HASL (Hot Air Solder Leveling)
  • Solder Mask & Silkscreen: Blue solder mask with white silkscreen
  • Material Standard: FR4 TG130, IPC Class 2 compliance

These features ensure that the board is durable, easy to produce, and suitable for mass production. For panelization, two PCBs are placed in one panel with an additional 10 mm edge and four fiducial marks to aid in assembly and later separated after production.

Connector Challenges

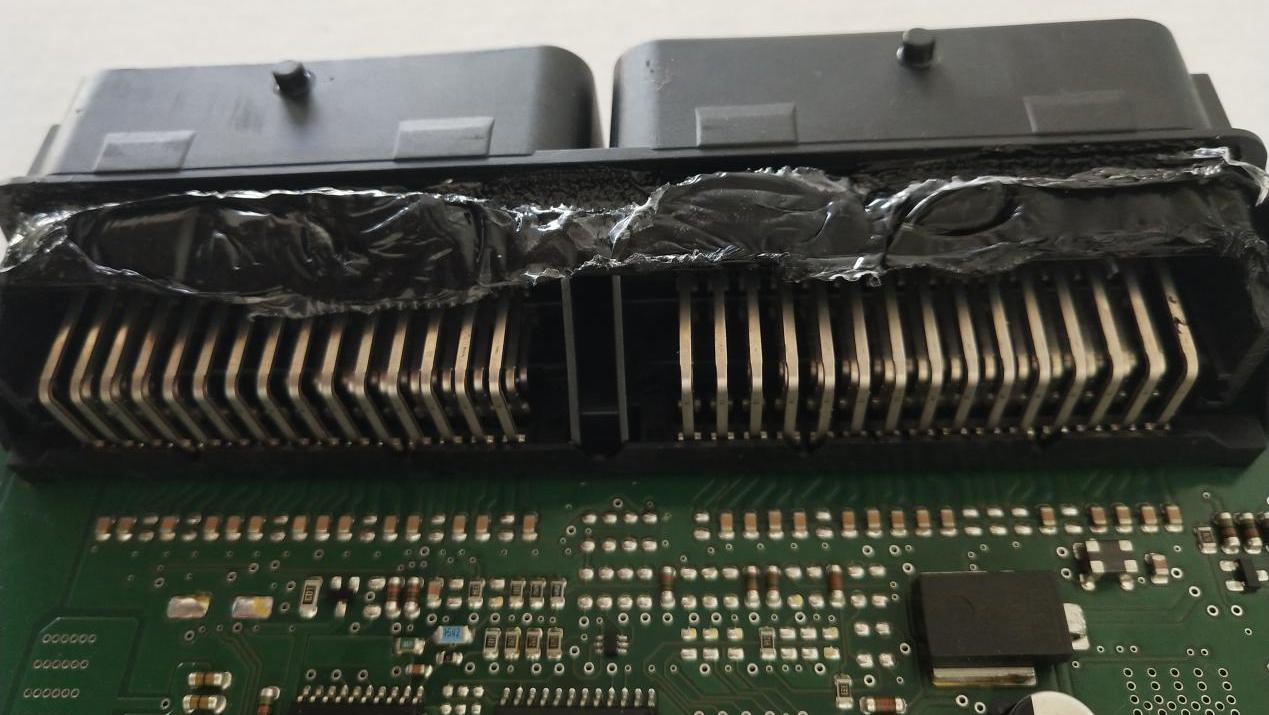

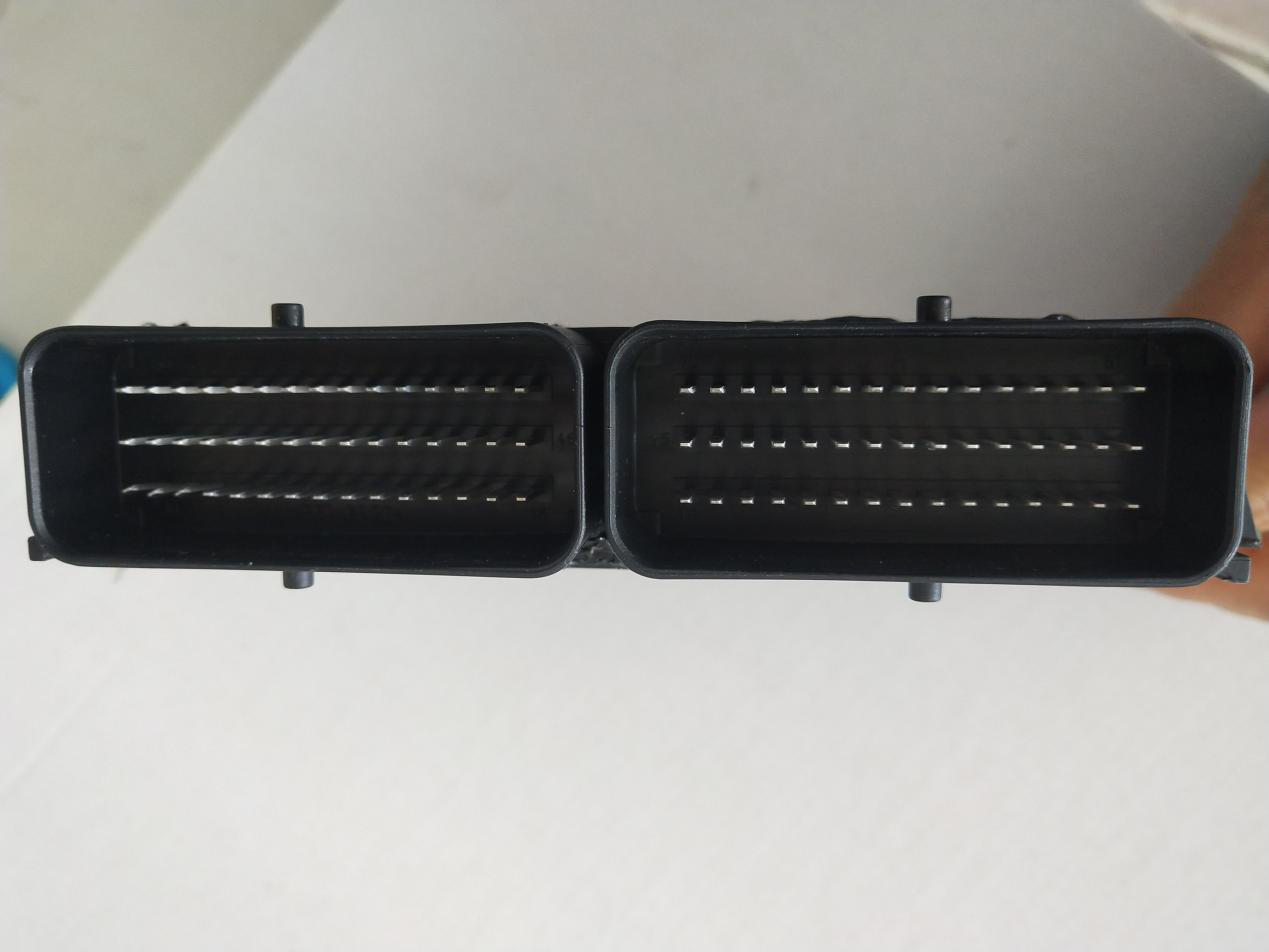

The project involved 45-pin automotive connectors, which posed two major challenges:

  1. Market Availability: Initially difficult to source from standard suppliers.
  2. Custom Mold Manufacturing: The company collaborated with a specialized automotive connector manufacturer to design and produce custom molds. Although mold development was costly, it enabled the smooth progress of the customer’s project.

The first production batch included 1,000 prototype sets, followed by larger batch orders of 2,000–5,000 sets. This approach balanced cost, testing, and scalability.

Supply Chain and Cost Management

Chip Sourcing Challenges

As an automotive PCB assembly project, sourcing chips was a critical challenge:

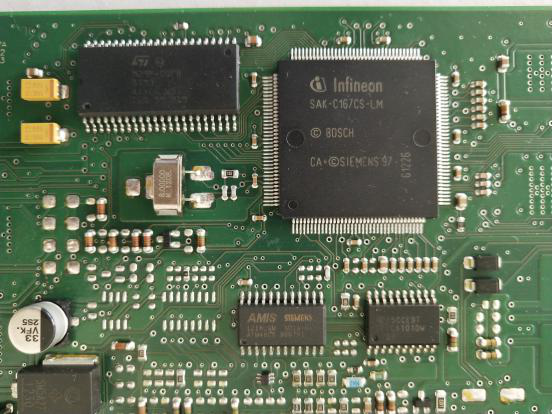

  • Imported Components: 7–8 specialized chips needed to be purchased from foreign suppliers.
  • Tariff Issues: Increased import tariffs raised production costs.
  • Exchange Rate Fluctuations: Affected procurement stability.

Strategic Solutions

To mitigate these challenges, the company:

  • Negotiated long-term purchase agreements with both customers and foreign suppliers.
  • Established a fixed pricing mechanism for one-year orders to ensure cost stability.
  • Enhanced production planning to maintain steady output despite global market volatility.

Testing and Quality Assurance

Test Fixture Development

Customers provided initial test fixtures, which were then localized and adapted by the engineering team. Testing followed strict protocols:

  • Functional verification against finished samples.
  • Adjustment of resistor accuracy levels to meet customer specifications.
  • Debugging minor discrepancies to ensure full compliance.

Outcome

The testing phase demonstrated:

  • High performance consistency.
  • Smooth integration with automotive systems.
  • Customer satisfaction with final results, ensuring long-term collaboration.

Automotive Industry Outlook and PCBA Opportunities

Growth of Automotive Electronics in China

China remains the largest automotive market globally, producing and selling over 38 million vehicles annually as of 2017. The automotive industry contributes significantly to the national economy and technology innovation.

Rise of New Energy Vehicles (NEVs)

With the rapid adoption of electric and hybrid vehicles, the demand for high-reliability PCBA solutions is growing. Connector PCBAs must adapt to:

  • Higher power requirements of electric motors.
  • Integration with advanced driver assistance systems (ADAS).
  • Smart connectivity and IoT-enabled vehicles.

Future Innovation

Our company is actively engaging with strategic partners to upgrade legacy designs, supporting:

  • Miniaturization of connectors for compact designs.
  • Enhanced thermal management for high-current applications.
  • Custom PCBA development aligned with global automotive standards.

Connector PCBA solutions are at the heart of modern automotive electronics, bridging the gap between design innovation and real-world performance. While challenges such as chip sourcing, cost fluctuations, and custom connector development pose hurdles, strategic planning and customer collaboration ensure project success.

As the automotive industry transitions toward new energy vehicles and intelligent systems, connector PCBA will continue to play a pivotal role in enabling safe, reliable, and high-performance vehicles. By leveraging advanced design, manufacturing, and testing capabilities, companies can stay ahead in the rapidly evolving automotive electronics sector.
