Exploring the Importance of PCBA Testing

In the electronics manufacturing process, PCBA (Printed Circuit Board Assembly) testing is a crucial step. It ensures that all components work as expected, prevents potential failures, and enhances the reliability of the final product. But what exactly is PCBA testing? What is its significance and benefit? In this article, we will delve into these questions And introduces 8 most popular PCBA testing methods.

PCBA testing is the process of conducting various checks and verifications on an assembled circuit board. This process includes multiple testing methods to check the electrical characteristics, physical integrity, and functional performance of the circuit board. Testing can occur at different stages of manufacturing, from early component inspection to final functional validation. Each testing method has its specific purpose and application.

The Importance of PCBA Testing

The significance of PCBA testing lies in ensuring that the circuit board operates reliably in real-world use. This not only involves confirming that all components are correctly soldered but also verifying the performance of the circuit board under different conditions. Through testing, manufacturing issues can be identified and corrected promptly, reducing failure rates and improving product quality. Additionally, PCBA testing is a necessary step to comply with industry standards and customer requirements.

Multiple Benefits of PCBA Testing

PCBA testing offers numerous benefits:

  • Increased Product Reliability: Comprehensive testing ensures that each circuit board functions reliably, reducing the need for repairs and after-sales services due to failures.
  • Cost Savings: Identifying and fixing problems early is more economical than addressing failures after product release.
  • Customer Satisfaction: High-quality products earn customer trust and enhance brand reputation.
  • Compliance with Industry Standards: Many industry standards and regulations require rigorous PCBA testing to ensure product safety and compliance.

Popular PCBA 8 test methods

Visual Inspection

Visual inspection is the most basic testing method, usually performed early in the manufacturing process. Operators or automated vision systems visually inspect the circuit board for obvious defects such as poor soldering, missing components, or misalignment. This method is simple and quick but can be limited by human factors and accuracy.

In-Circuit Testing (ICT/Bed of Nails)

In-Circuit Testing (ICT), also known as Bed of Nails testing, is a very popular method. The circuit board is fixed in a test fixture with probes contacting the board’s test points. ICT can check electrical connectivity, component values, and shorts. It is fast and accurate but requires a dedicated test fixture, making it suitable for high-volume production.

Flying Probe Testing (FPT)

Flying Probe Testing (FPT) is a flexible testing method, especially suited f

or small batches and prototype boards. Unlike ICT, FPT uses movable probes to test the circuit board. It does not require custom test fixtures, making it more suitable for diverse production and rapid iteratio

n. Although slower, it is highly accurate and suitable for complex circuits.

Automated Optical Inspection (AOI)

Automated Optical Inspection (AOI) uses optical systems and image processing technology to detect defects on the circuit board. AOI systems capture images of the board and compare them with a standard template to identify issues such as soldering defects, component misplacement, and missing components. AOI is fast and accurate, commonly used on production lines.

Automated X-ray Inspection (AXI)

Automated X-ray Inspection (AXI) is an advanced method used to check solder joints and internal connections. AXI uses X-ray imaging to detect internal defects invisible to the naked eye, such as voids, bridging, and hidden solder issues. This method is suitable for high-density and complex circuit boards.It can find faults that we cannot tell. For example, it can help detect subtle errors in alignment, nano-fractures in solder joints, etc. It is particularly useful for ball grid arrays and chip-scale packages where optical techniques cannot see the solder joints. In general, automated X-ray inspection can ensure the long-term quality of solder joints and connections. In addition, this method seems to have the highest detection rate of almost all inspection methods.

Burn-In Testing

Burn-In Testing simulates long-term usage conditions to evaluate the durability and reliability of the circuit board. The board operates under specific temperature, humidity, and electrical load for a period, monitoring performance cha

nges. This test can uncover potential early failures, ensuring the product’s stability in actual use.

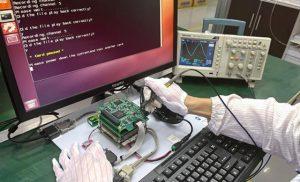

Functional Testing (FCT)

Functional Testing (FCT) verifies the overall functionality of the circuit board. By simulating real-use conditions, it checks if each functional module of the board works as expected. This method can identify potential issues in design and assembly, making it a critical step to ensure the final product’s quality.

Fatigue Testing

Fatigue Testing assesses the durability of the circuit board under repeated load conditions. By applying repeated mechanical stress, electrical load, and environmental changes to the board, it simulates long-term usage fatigue. This test helps engineers improve design and enhance the product’s reliability and lifespan.It may include running the PCB under conditions such as extreme temperature, high voltage, etc. This testing technique helps engineers identify errors in the operation of the PCBA. However, it can be a labor-intensive and extremely time-consuming task. Also, it may shorten the lifespan of the PCB. However, it ensures its reliability.

Conclusion

PCBA testing plays a vital role in the electronics manufacturing process. Through various testing methods, we can ensure that each circuit board operates efficiently and reliably. Whether it is simple visual inspection or complex automated X-ray inspection, each testing method has its unique advantages and application scenarios. I hope this article has provided you with a comprehensive understanding of PCBA testing and its significance in actual production.
