From Breadboard to Multi-Layer Board: How to Choose the Right Prototype Board for Your Project?

In the early stages of electronic product development, selecting the right carrier directly determines the efficiency of subsequent circuit debugging. Many R&D projects select the wrong solution initially. Consequently, they face the dilemma of completely reconstructing the circuit during the transition to the batch phase. Choosing a professional assembly service solves the process gap problem of transitioning from early concept verification to mass production. This article analyzes the characteristics of each prototype board from a real manufacturing perspective.

1. Solderless Breadboard: Rapid Logic Verification for Low Frequencies

A solderless breadboard is the starting point for many hardware ideas, but it has obvious limitations in high-frequency or high-current scenarios.

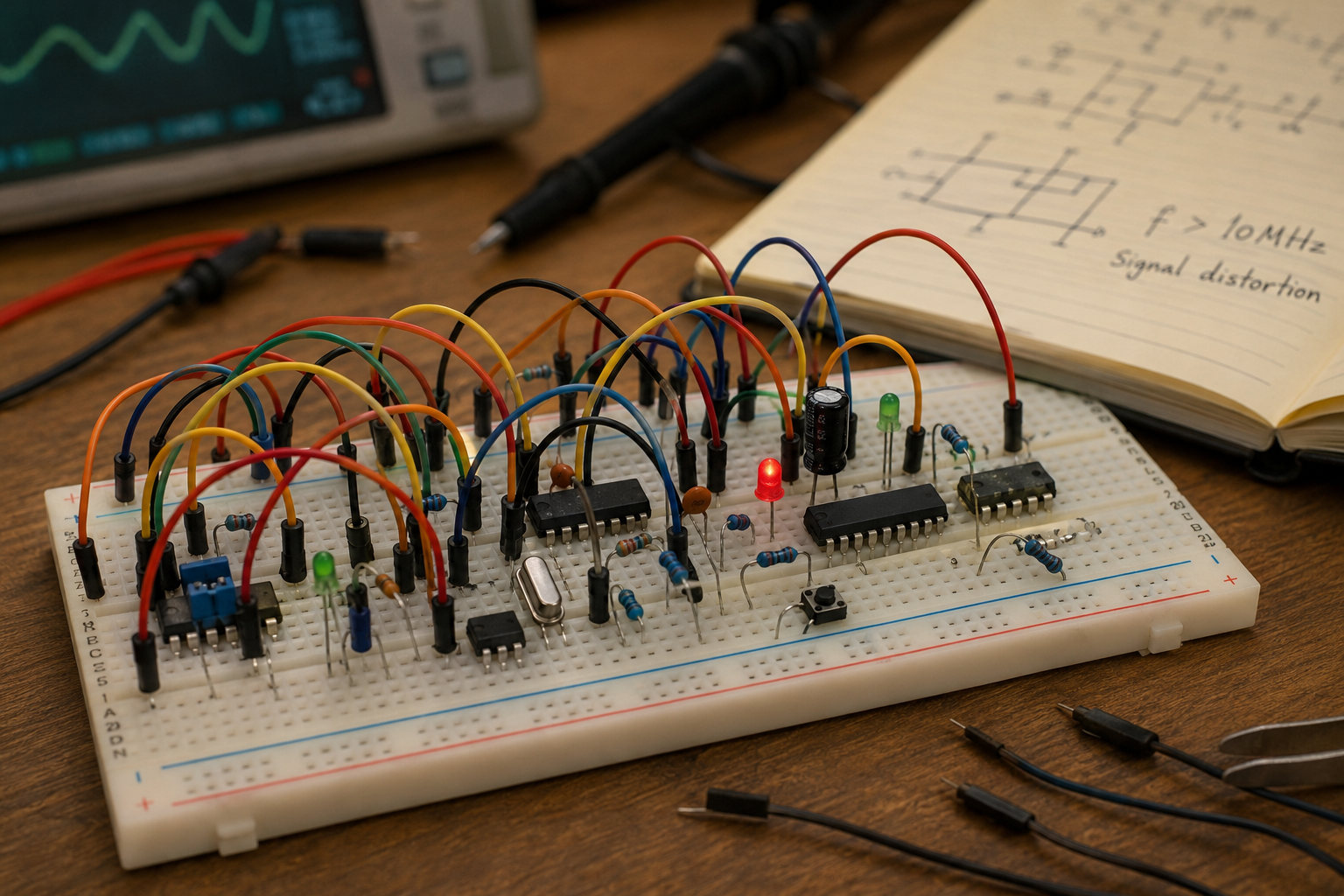

1.1 Plug-in Structure and High-Frequency Signal Limits

The breadboard relies on internal phosphor bronze spring clips to grip component pins, which is most suitable for through-hole devices. However, this physical structure inevitably introduces parasitic capacitance. When the signal frequency exceeds 10MHz, this parasitic effect causes waveform distortion. Therefore, traditional solderless plug-in boards are not suitable for high-speed digital circuits or RF modules.

1.2 Messy Wiring and Loose Contact Risks

As circuit complexity increases, jumper wires easily form a maze. In addition, the aging of the spring clips often leads to disconnected contacts. This failure at the hardware level greatly interferes with the debugging progress of software engineers.

2. Through-Hole Solder Prototype Board (Perfboard/Stripboard): First Solidification of Circuit Form

After the logic runs successfully on the breadboard, solidifying it through soldering is the next step to improve stability.

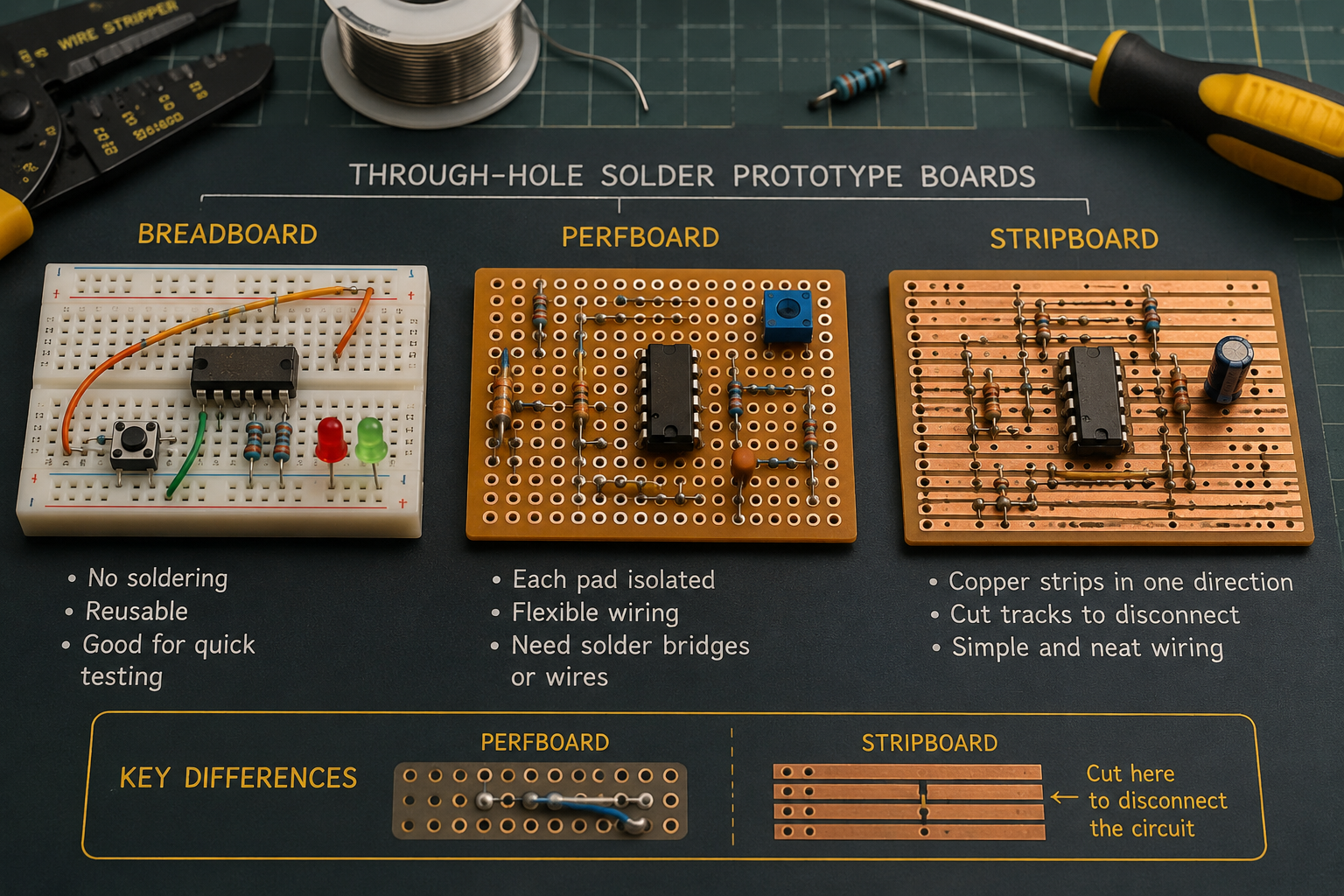

2.1 Practical Differences Between Perfboard and Stripboard

Each pad of a universal perfboard is isolated from the others. Engineers usually need to rely on routing or solder bridges for point-to-point connections. By contrast, the copper foil of a stripboard extends continuously in a single direction. Users need to cut the copper foil to disconnect the circuit.

2.2 Mechanical Strength Improvement and the Surface Mount Gap

Metal soldering greatly reduces contact resistance. As a result, this board solves the common breadboard problem of loose pins. But manual perfboards cannot directly carry miniaturized surface mount components. Because they lack a continuous ground plane, their anti-interference capability remains limited.

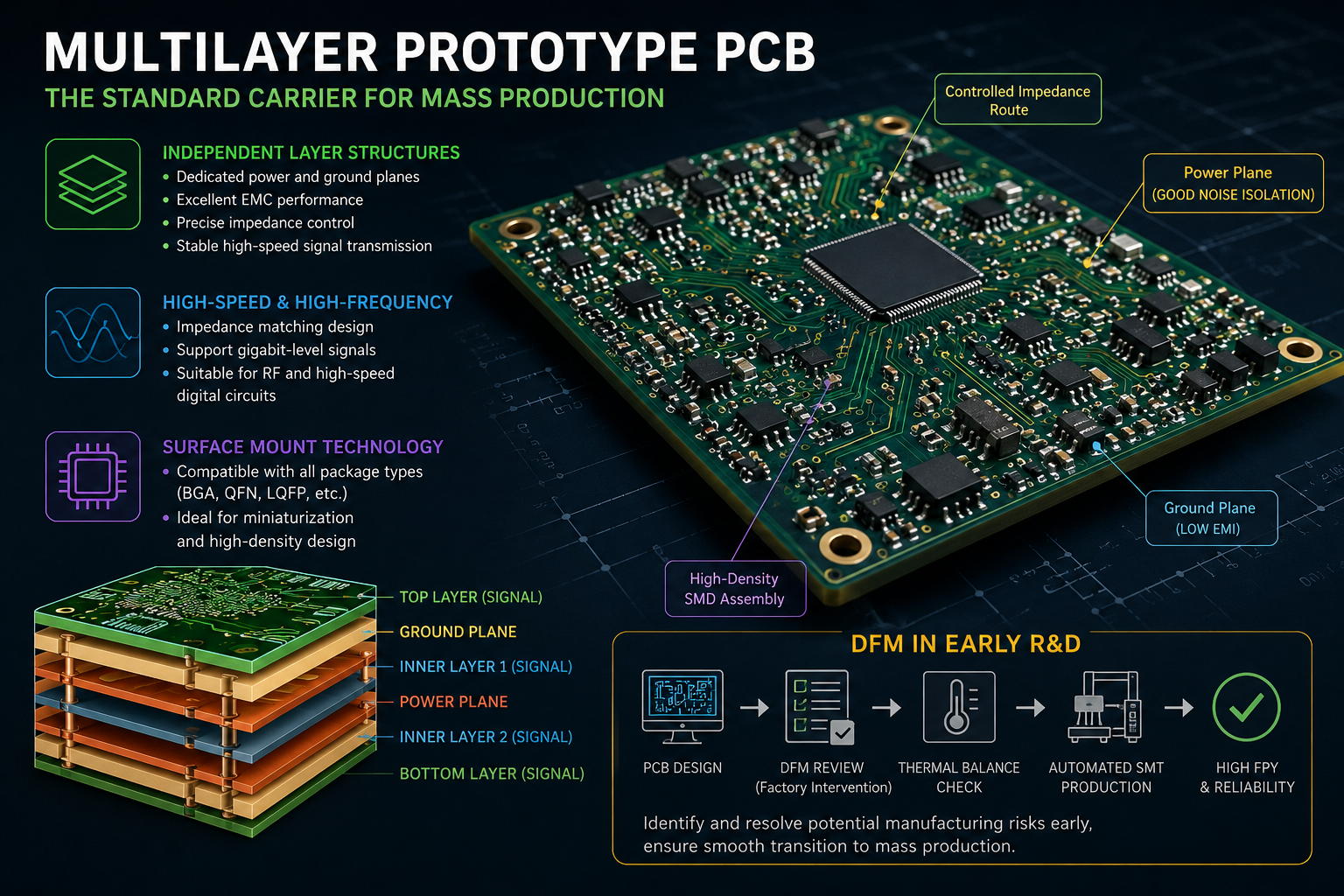

3. Multilayer Prototype PCB: The Standard Carrier for Final Mass Production

A multilayer pcb prototype board is a development carrier that truly possesses industrial-grade electrical performance.

3.1 Electrical Performance Leap via Independent Layer Structures

By designing independent power and ground planes, the multilayer board provides excellent electromagnetic compatibility (EMC). Signal lines can undergo precise impedance matching calculations. At the same time, high-frequency signals can achieve gigabit-level stable transmission. This substrate perfectly adapts to surface mount technology.

3.2 Introduction of DFM (Design for Manufacturability) in Early R&D

During the design stage, the engineering team of the factory can intervene to conduct process reviews. Therefore, potential manufacturing risks such as thermal balance are resolved before opening molds. This pre-review avoids yield risks when switching from manual soldering to automatic pick-and-place component mounting. Factory intervention effectively improves the first-pass yield (FPY) of the first batch.

4. R&D Selection Reference: Horizontal Comparison of Three Prototype Boards

To facilitate the evaluation of hardware investment at different R&D stages, the following table organizes the comparison matrix of core indicators:

Conclusion: A Rational Choice to Avoid R&D Reconstruction Risks

A rational hardware R&D path should proceed step by step. Breadboards are used to verify local logic, and solder boards are used to solidify functional modules. Ultimately, a multilayer pcb prototype board is the only choice for productized delivery. Selecting a professional prototype assembly service solves the hidden danger of process defects in the final mass production stage. High-quality prototype services make your hardware solution more competitive in the market.
