From Design to Power-On: What Machines and Processes Are Used in PCB Prototype Assembly?

In the electronics product development cycle, the PCB prototype assembly stage is often underestimated. In reality, it plays a decisive role in whether a product can smoothly enter testing, validation, and eventually mass production. Compared with volume production, prototype assembly places far greater emphasis on process flexibility, engineering involvement, and equipment adaptability.

So, during PCB prototype assembly, what key machines are actually used, and which core manufacturing processes are involved? From a professional PCBA perspective, this article systematically breaks down the equipment configuration and process logic behind prototype assembly, helping engineers, buyers, and product managers gain a clearer understanding.

1. Why PCB Prototype Assembly Is Fundamentally Different from Mass Production

Before discussing equipment and processes, it is important to clarify one premise: PCB prototype assembly is not the same as mass PCBA production.

PCB prototypes typically have the following characteristics:

  • Very low quantities (commonly 1–50 pcs)
  • Designs that are not fully finalized, with frequent revisions
  • Complex component packages and a high proportion of new parts
  • High requirements for debugging and test accessibility

These factors mean that prototype assembly relies more on engineering-driven manufacturing rather than scale-driven manufacturing.

2. Core Equipment Used in PCB Prototype Assembly

2.1 Solder Paste Printing Equipment: Stability Matters More Than Speed

The first step in most prototype assembly processes is solder paste printing. Commonly used equipment includes:

  • Semi-automatic solder paste printers

  • Fully automatic stencil printers (for high-precision prototypes)

At this stage, the focus is not on throughput, but on:

  • Matching stencil apertures to pad design
  • Precise solder volume control for fine-pitch components
  • Repeatability and stability across multiple trial prints

For QFN and BGA packages with pitch below 0.4 mm, printing quality often directly determines downstream yield.

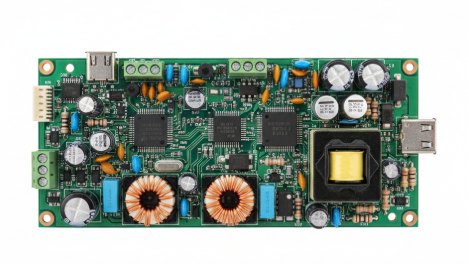

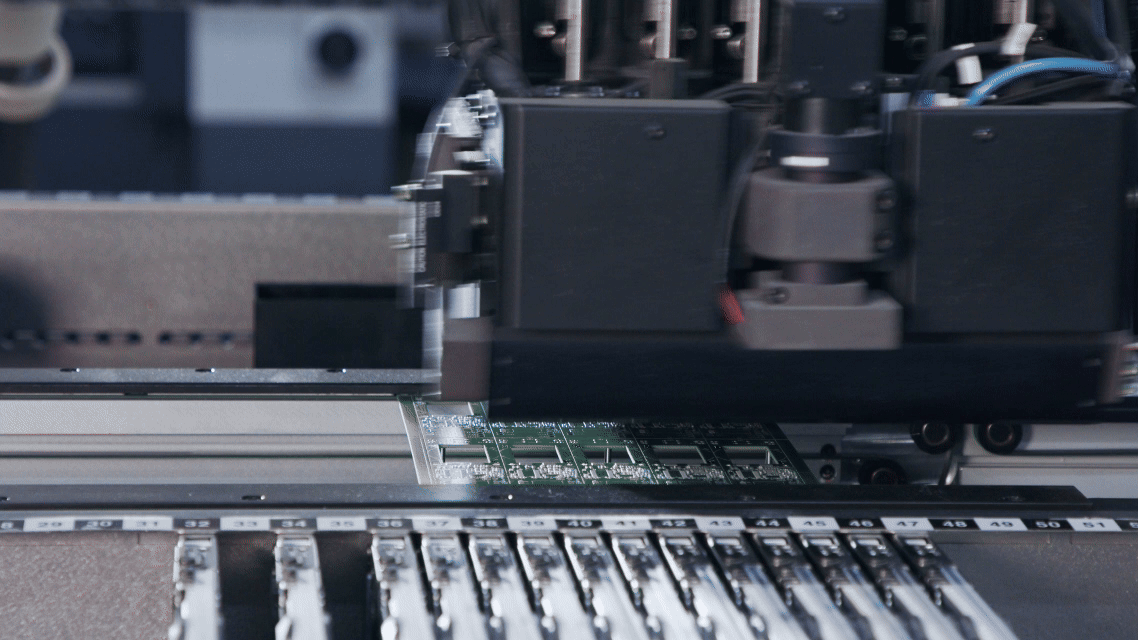

2.2 SMT Pick-and-Place Machines: The Flexibility Core of Prototyping

In PCB prototype assembly, SMT placement flexibility is far more important than maximum placement speed.

Typical configurations include:

  • Mid-speed multifunction pick-and-place machines
  • High-precision placement machines supporting 01005 and micro-BGA

Key capability evaluation points:

  • Ease of program import and modification
  • Adequate feeder availability
  • Compatibility with odd-form components and mixed small batches

For prototype projects, a machine that is easy to set up and adjust is often more valuable than a high-speed production line.

2.3 Reflow Soldering Equipment: The Critical Success Step

Reflow soldering is the step that transforms a collection of components into a functional circuit.

Common equipment types include:

  • Multi-zone hot-air reflow ovens
  • Nitrogen reflow ovens (for high-reliability prototypes)

Key process control points include:

  • Thermal mass matching across different components
  • Management of multiple solder alloys and profiles
  • Prevention of defects such as BGA voids, tombstoning, and solder bridging

During the prototype stage, process engineers often develop a dedicated reflow profile for each individual project.

3. Through-Hole and Mixed-Technology Assembly Equipment

3.1 DIP Insertion and Selective Soldering

Many prototype boards still include:

  • Connectors
  • High-power components
  • Mechanical or structural parts

Common processes and equipment include:

  • Manual component insertion
  • Selective wave soldering

Compared with full wave soldering, selective soldering is better suited for low-volume prototypes with varying board structures.

3.2 Hand Soldering and Rework Equipment

In prototype assembly, manual soldering is not a weakness—it is a necessary capability.

Commonly used equipment includes:

  • Temperature-controlled soldering stations
  • Hot air rework stations
  • BGA rework systems

These tools are essential for:

  • Component replacement during engineering validation
  • Design error correction
  • Rapid response to ECOs

4. Inspection and Verification: A Critical Step Even for Prototypes

4.1 AOI and X-Ray Inspection

Even prototype boards require inspection, but with a different strategy:

  • AOI for polarity, offset, and insufficient solder detection
  • X-ray inspection for BGA and LGA solder joint analysis

At the prototype stage, the priority is issue exposure, not inspection speed.

4.2 Electrical and Functional Testing Processes

After assembly, prototype boards typically go through:

  • ICT (In-Circuit Testing)
  • FCT (Functional Circuit Testing)
  • Power-on and debugging tests

Test results often feed directly back into the next PCB design revision.

5. The Engineering Value Behind PCB Prototype Assembly

High-quality PCB prototype assembly is not just about “getting the board soldered.” It is about:

  • Exposing design risks early
  • Verifying package-to-process compatibility
  • Establishing a manufacturing baseline for mass production

This is why more R&D teams are choosing PCBA manufacturers with strong engineering support for the prototype stage.

6. Prototype Assembly Is the First Gate to Product Success

The machines and processes used during PCB prototype assembly directly impact development efficiency and product quality. Rather than pursuing what is “fastest,” the key is choosing what is most appropriate for the current stage.

With the right equipment, clear process flow, and sufficient engineering involvement, prototype boards are not only powered on successfully—they also pave a solid path toward stable mass production.
