From Order to Shipment in Just One Day? Unveiling the Logic Behind 24-Hour PCB Rapid Prototyping

In today’s electronics industry, where product development cycles are constantly compressed, speed is no longer a bonus—it is a necessity. Especially during the PCB and PCBA prototyping stage, the ability to receive a reliable PCB sample within 24 hours can directly impact product validation, iteration speed, and even time-to-market.

This raises a key question: How is the widely advertised “24-hour delivery” in PCB rapid prototyping actually achieved? Is it simply the result of overtime and rushed production, or is it driven by a systematically redesigned manufacturing process?

From a professional PCB/PCBA manufacturing perspective, this article breaks down the reality behind 24-hour delivery by analyzing process compression, parallel manufacturing, and digitalized production systems, helping engineers and buyers truly understand what “fast” really means.

1. What Does “24-Hour PCB Rapid Prototyping” Really Mean?

In industry practice, “24-hour delivery” does not imply that all PCB types can be manufactured within one day. Instead, it refers to a closed-loop process completed within 24 hours under specific conditions, including:

  • Engineering file review (DFM/DFX)
  • Core PCB fabrication processes
  • Electrical testing and visual inspection
  • Packing and handover to logistics

This service is typically applicable to:

  • 2–4 layer FR-4 rigid PCBs
  • Standard board thicknesses (1.6 mm / 1.0 mm)
  • Standard trace/space (≥ 4/4 mil)
  • No blind or buried vias, no HDI structures

True 24-hour PCB prototyping is essentially a manufacturing model that has been fundamentally re-engineered for speed.

2. The Core Prerequisite: Not Every Order Qualifies for “Fast Track”

Order Qualification Matters More Than Overtime

Factories capable of stable 24-hour delivery usually implement a strict order screening mechanism at the quotation and order-entry stage, focusing on:

  • Completeness and clarity of Gerber files
  • Clear BOM and stack-up definition
  • Design parameters within standard process capability

Through pre-production DFM evaluation, factories determine whether an order can enter the “express lane” before production begins, avoiding mid-process rework that would disrupt the schedule.

Rapid prototyping is not about raw speed—it is about predictability.

3. First Major Time Reduction: Engineering Processing Compressed to the Extreme

From Hours to Minutes in Engineering Preparation

In traditional PCB manufacturing, engineering processing alone can take several hours. In a 24-hour rapid prototyping system, this time is dramatically reduced through the following approaches:

1. Automated DFM Rule Engines

  • Automatic checks for trace width/spacing, hole size, and annular ring
  • Automatic matching with standard stack-up libraries
  • Instant manufacturability feedback

Engineers no longer perform line-by-line manual checks; instead, they focus on exception handling and risk assessment.

2. Parallel Launch of Engineering and Production

Once no critical risks are identified:

  • Engineering data output
  • Production order creation
  • Material allocation and line reservation

are completed almost simultaneously, rather than sequentially.

4. The Manufacturing Core: Which Processes Are Compressed and Which Run in Parallel?

This is the key to achieving true 24-hour delivery.

Processes That Are Compressed (Cycle Time Reduced)

1. Inner Layer Fabrication: Standardized Stack-Ups Are Essential

  • Use of stocked inner core materials
  • Fixed copper thickness and dielectric options
  • High-speed inner-layer exposure and etching lines

Eliminating custom stack-ups is one of the fundamental guarantees of speed.

2. Lamination: Optimized Fast-Press Profiles

  • Pre-validated fast lamination curves
  • Reduced cooling and waiting time
  • Dedicated presses for small-batch prototyping

Without compromising reliability, lamination cycles can be shortened by over 30%.

Processes That Run in Parallel (Time Overlapping)

1. Drilling and Outer-Layer Preparation in Parallel

In traditional workflows:

Drilling completed → waiting → outer-layer processing

In rapid prototyping mode:

  • Drilling completed in batches
  • Outer-layer pretreatment prepared in advance
  • Immediate transfer to the next process

This eliminates hidden waste caused by waiting for equipment or operators.

2. Parallel AOI, Electrical Testing, and Visual Inspection

  • Independent AOI and electrical test stations
  • Dedicated inspection takt time for small batches
  • Immediate release decision after inspection

Instead of waiting for the entire batch to finish before testing.

5. Why 24-Hour PCB Prototyping Sets a High Bar for Factories

This Is a System Capability, Not Just Working Overtime

Factories that can consistently deliver 24-hour prototypes typically possess:

  • Dedicated rapid prototyping production lines
  • A high level of equipment automation
  • Mature process and material databases
  • Tight collaboration between engineering, production, and quality teams

Without these foundations, so-called “24-hour delivery” often means:

  • Risk transferred to the customer
  • Over-compressed process windows
  • Unstable prototype reliability

6. Extending to PCBA: 24-Hour PCB ≠ 24-Hour PCBA

PCBA Speed Depends on More Variables

Even if a PCB can be completed within 24 hours, PCBA turnaround depends on additional factors, such as:

  • Component availability and lead time
  • Whether stencils are pre-stocked

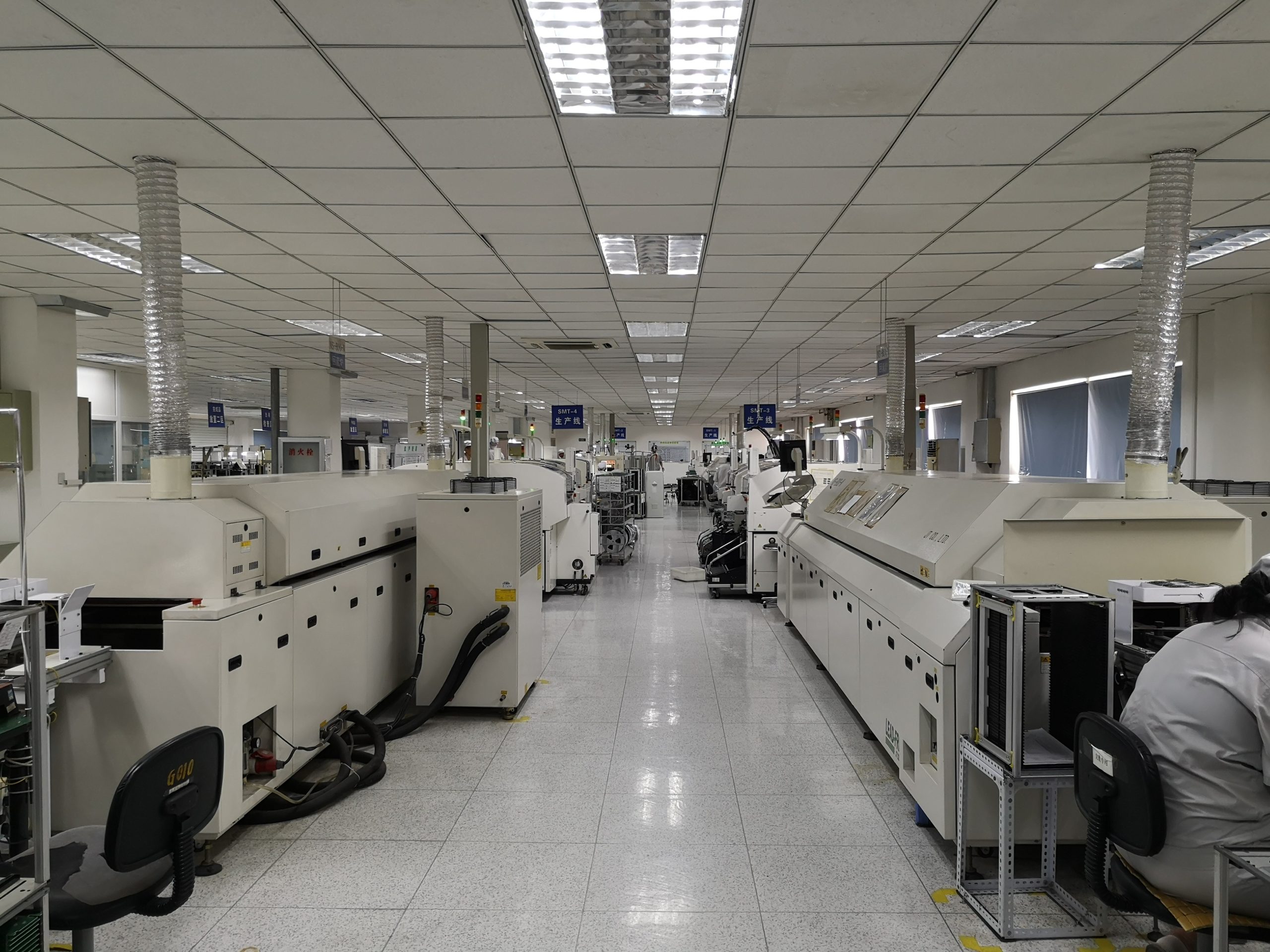

  • SMT line flexibility and quick changeover capability

In a mature rapid PCB + assembly ecosystem, some manufacturers can achieve:

24-hour PCB fabrication + 24–48 hour PCBA prototyping

This capability is extremely valuable during early-stage product validation.

7. Final Thoughts: The Real Value of Fast Prototyping Is Certainty

The true value of 24-hour delivery is not being fast once, but being fast every time—with predictable results.

For engineers, this means:

  • Shorter design verification cycles
  • Lower trial-and-error costs
  • Faster and more confident product decisions

For PCB and PCBA manufacturers, it is not a test of speed, but of system-level manufacturing capability.

The next time you see “24-hour rapid prototyping,” consider asking one more question:

Is this factory racing against time, or using systems to save time?

The answer often determines the real value of your prototype.
