In marine engineering projects, reliable high-power supply boards play a vital role in ensuring system stability and performance. This article presents a detailed case study of a high-power supply PCBA (Printed Circuit Board Assembly) developed by a technology company. From material management to soldering challenges, strict quality control, and customer collaboration, this project showcases the complexity and expertise required in the PCBA manufacturing process.

Project Background

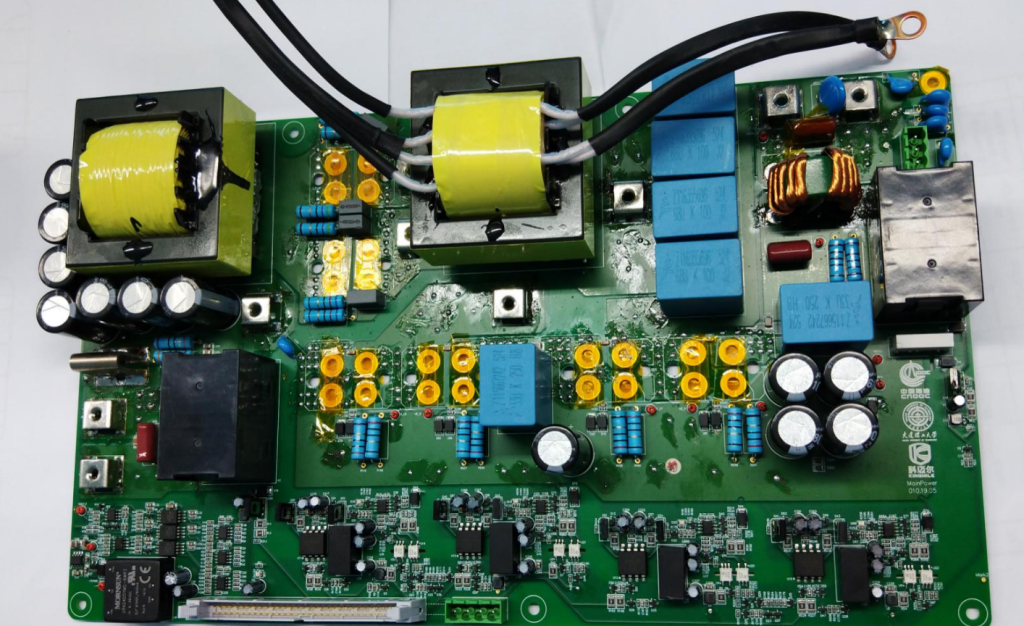

The customer required a custom high-power supply PCBA for marine engineering applications. Six different types of boards were ordered simultaneously, leading to complex material distribution and handling challenges. Despite the operational delays, the supplier prioritized long-term cooperation and supported the customer without additional charges. This case demonstrates not only technical challenges but also a commitment to customer satisfaction.

Material Management Challenges

Mixed Material Issues

  • Six product types were ordered together, leading to mixed material inventory.
  • Sorting materials became highly inefficient, affecting warehouse productivity.
  • The supplier absorbed the cost without charging the customer, strengthening trust.

Component Orientation

  • One component had a bi-directional installation possibility.
  • To avoid functional errors, the supplier confirmed orientation details with the customer before assembly.

PCB and Soldering Challenges

Copper Thickness and Tin Application

  • The PCB had a 3/3oz copper thickness, making soldering particularly difficult.
  • Staff had to lower the soldering temperature and add tin repeatedly.
  • Inefficient melting of tin required extra effort and time.

Wave Soldering Limitations

  • The board lacked edges, complicating wave soldering.
  • The customer specifically required wave soldering without additional tin, reducing efficiency.
  • To achieve quality, operators slowed down the soldering speed.

Pad and Hole Requirements

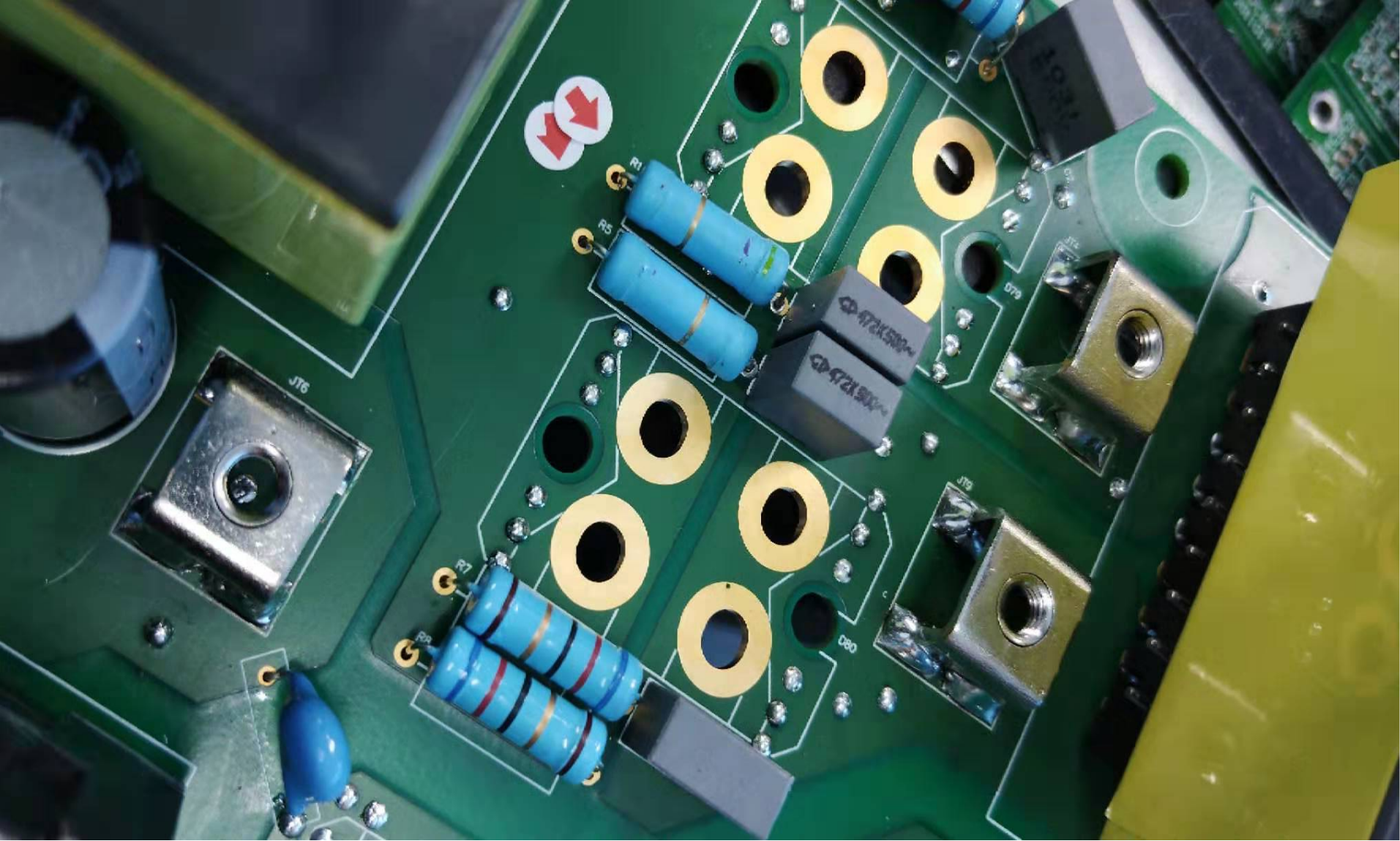

  • The board included 24 metal holes that demanded perfectly flat solder pads.
  • Pads could not have excess tin, and both sides were protected with high-temperature adhesive.
  • Certain metallized grounding holes were required to remain tin-free.
  • Workers had to carefully reprocess solder pads to meet specifications.

Component Processing Requirements

Resistor Modification

  • 12 resistors were initially required to be processed into K-feet.
  • Due to the lack of suitable machinery, manual processing would have been inefficient.
  • After discussion, the customer agreed to keep resistors in their original form, provided height consistency was maintained.

Transportation Considerations

  • The PCBA was heavy, making express delivery risky.
  • The supplier recommended self-pickup to prevent transport damage.
  • The customer accepted the suggestion, avoiding potential shipment risks.

Strict Quality Control

Welding Requirements

  • 100% tin penetration was mandatory for all THT through-hole pads.
  • All components had to be tightly mounted with no floating, tilting, or misalignment.

Customer Approval

  • The first board required a full day of validation with the customer.
  • Multiple confirmations were made regarding:
    • Missing materials
    • Installation methods
    • Wave soldering quality and results

Customer Collaboration

Technical Guidance

  • Since the customer had strong theoretical knowledge but limited hands-on PCBA experience, the supplier invited them to visit the factory.
  • Detailed explanations were provided for every step of the process:
    • SMT (Surface-Mount Technology)
    • DIP (Dual In-line Package)
    • Wave soldering and final inspection
  • By bridging the gap between design and production, the supplier helped the customer refine future product designs.

Final Customer Feedback

  • Upon delivery, the customer reported zero defects.
  • The PCBA quality fully met requirements, gaining high recognition.
  • The successful project reinforced the customer’s trust and confidence.

Key Takeaways

  1. Material management is critical when handling multiple product variations simultaneously.
  2. Thick copper PCBs require special soldering processes and skilled operators.
  3. Wave soldering constraints demand careful planning and process adjustments.
  4. Close collaboration with customers bridges the gap between theory and practice.
  5. Strict quality control ensures reliability in high-power marine engineering applications.

The successful manufacturing of a high-power supply PCBA for marine engineering demonstrates the supplier’s expertise in complex PCB design, material management, soldering challenges, and customer communication. Despite numerous difficulties—from thick copper soldering to strict pad requirements—the project was completed to a high standard, ensuring both technical excellence and customer satisfaction.

This case highlights the importance of professionalism, innovation, and collaboration in the PCBA industry, especially for mission-critical applications such as marine engineering.
