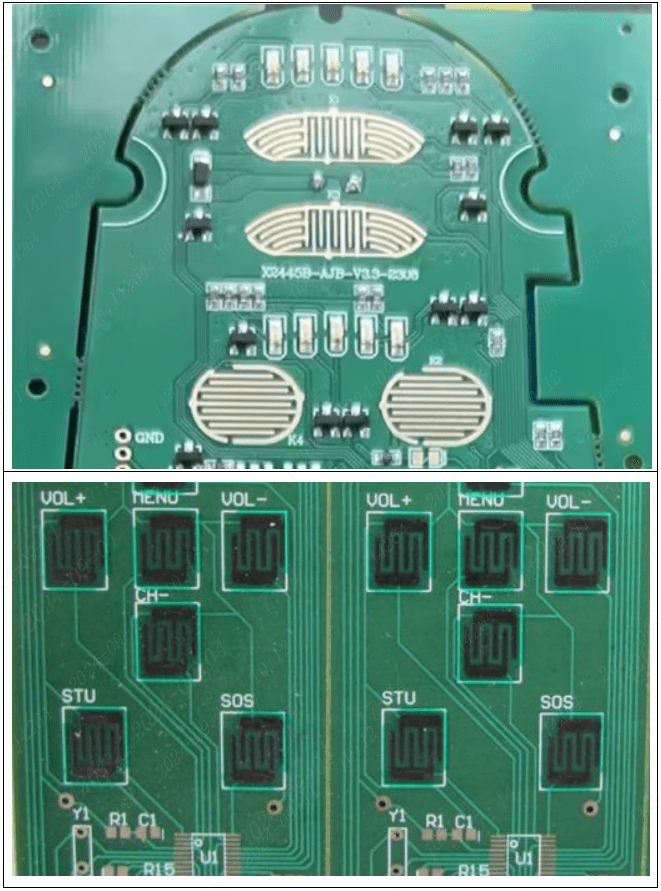

How Do Buttons on a Circuit Board Work?

Buttons on a circuit board are essential components that provide input for users to control the operation of a device. They are widely used in various electronic devices, from simple household appliances to complex industrial systems. This article explores how buttons on circuit boards work, along with their design and common applications.

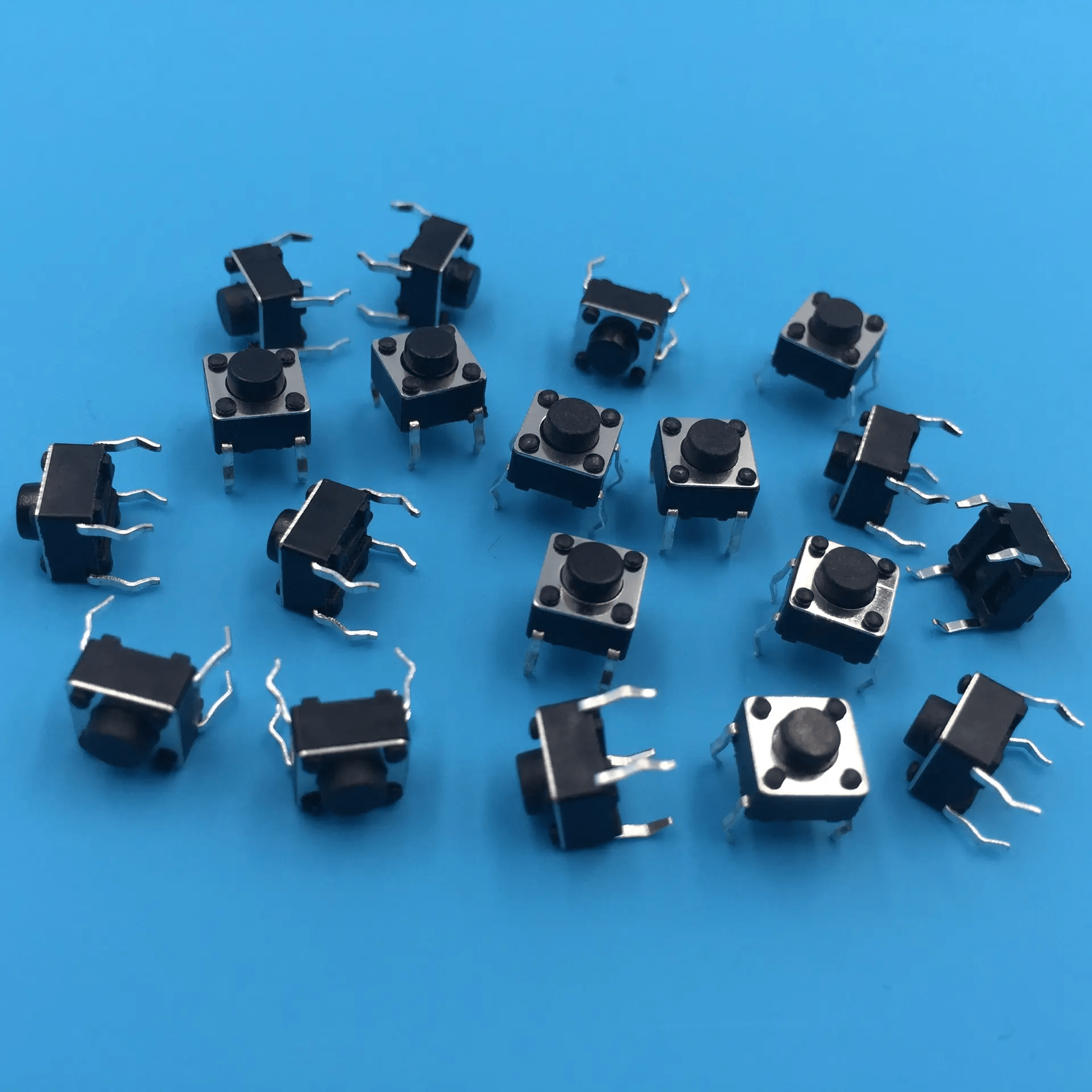

What is a Button?

A button is a simple mechanical or electronic switch that temporarily or permanently changes the state of a circuit when pressed. The working mechanism is straightforward: pressing the button connects two contacts in the circuit, allowing current to flow. When released, the contacts disconnect, and the current stops flowing. Buttons are commonly used in electronic devices such as remote controls, calculators, keyboards, and more.

Typically, buttons have two main states: pressed (closed) and released (open). This simple design makes them ideal for controlling the flow of current in a circuit, functioning as a basic switch.

How Does a Button LED Circuit Work?

The basic principle of a button circuit is to control the flow of current by changing the open or closed state of the circuit. Buttons are often used to control LEDs, relays, or other electronic components. When the button is not pressed, the circuit is open, and no current flows. When the button is pressed, the circuit closes, allowing current to flow, which can light up an LED or activate other components.

In many designs, buttons are combined with LEDs to display the button’s status. When the button is pressed, the LED lights up, indicating the circuit is active; when released, the LED turns off, signaling the circuit is off.

Button Circuit Design

When designing a button circuit, multiple factors must be considered, including stability and noise resistance. A common issue is “bouncing,” where pressing the button causes multiple rapid connections and disconnections. This can lead to unintended circuit activation, so a “debounce” circuit is necessary.

There are two main methods for debouncing: hardware debouncing and software debouncing. Hardware debouncing typically uses capacitors and resistors to smooth out the button’s contact process, while software debouncing involves programming a microcontroller to ignore multiple inputs within a short period.

Additionally, pull-up or pull-down resistors are often used in the circuit to ensure the input is at a defined voltage level when the button is not pressed, preventing floating or random signals.

Required Components

Building a basic button circuit requires the following components:

Button switch: Used to control the flow of current.
LED: To indicate the status of the button.
Resistors: To limit current and protect the LED or button.
Power supply: To provide the necessary power for the circuit.

These components can be easily connected to form a functioning circuit, where pressing the button lights up the LED.

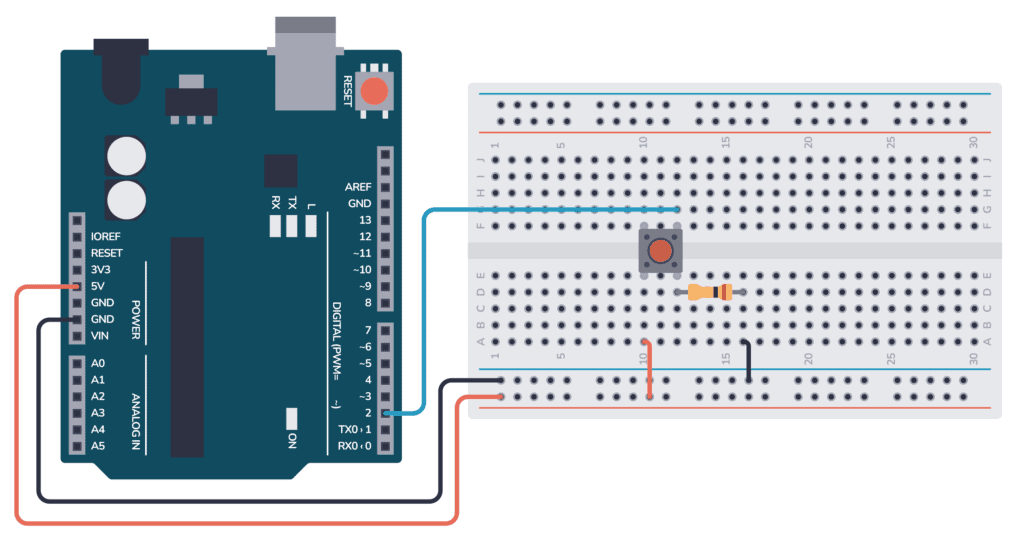

How to Build a Button Circuit

Constructing a button circuit is straightforward. Here are the steps:

Gather components: Collect all necessary components like the button, LED, resistor, and power supply.
Connect the circuit: Connect one end of the power supply to the button, the other side of the button to the LED, and connect the LED back to the power supply through a resistor.
Test and troubleshoot: Press the button to ensure the circuit closes and the LED lights up. Adjust resistor values if needed to maintain proper current for the LED.

This simple circuit is suitable for many beginner-level projects and educational settings.

Types of Button Switches

Depending on the circuit design, there are different types of button switches, each with slightly different working mechanisms:

Single Pole Single Throw (SPST): The simplest type, which controls the opening or closing of one circuit.
Single Pole Double Throw (SPDT): Allows switching between two circuits; when pressed, one circuit is opened, and the other is closed.
Double Pole Single Throw (DPST): Similar to SPST but controls the opening or closing of two circuits at the same time.
Latching and Momentary Switches: Latching switches maintain their pressed state until pressed again, while momentary switches return to their original state once released.

Each type of button is suited to different applications, making selecting the appropriate type a crucial step in circuit design.

Applications of Button Switches

Button switches are widely used in various electronic devices. Some common applications include:

Household appliances: Power buttons in devices like televisions, air conditioners, and microwaves.
Industrial equipment: Buttons that control the start and stop of machinery.
Consumer electronics: Function buttons in smartphones, remote controls, and game controllers.

In addition to these, buttons are used in safety devices, communication systems, and medical instruments, playing a vital role in these fields.

Conclusion

Buttons are one of the most common control elements in circuit boards. They function as simple switches that control the flow of current, enabling the activation, deactivation, or mode selection of devices. By carefully designing the circuit and implementing debounce techniques, the stability and reliability of button circuits can be ensured. Whether used in household appliances or complex industrial systems, the wide application of button circuits highlights their importance in modern electronics.

Mastering the design and application of button circuits provides developers and engineers with reliable control solutions, facilitating the creation of more innovative products.If you want to know more, please feel free to contact us
