Did you know that the PCBA manufacturing process has evolved to create multilayer PCBs with up to 129 layers? This remarkable advancement showcases the incredible complexity and precision of modern printed circuit board assembly technology. We understand that industrial PCBA serves as the backbone for numerous critical applications, from robotics and heavy machinery to automotive parts, medical devices, and even aerospace systems.

The PCB manufacturing process for industrial applications demands significantly higher standards than consumer electronics. Components like aluminum circuit boards offer superior heat dissipation, essential for maintaining stability in high-performance industrial machines. High-frequency PCBs can handle signal rates up to 100 GHz, making them vital for advanced technological applications. Understanding the PCB manufacturing process flow chart is crucial for engineers who need to visualize each step from design to final assembly. In this comprehensive guide, we’ll walk through each phase of industrial PCBA production, highlighting best practices that ensure reliability, durability, and performance in demanding environments.

Understanding the PCBA Manufacturing Process for Industrial Machines

What is PCBA Manufacturing Process in Industrial Context

PCBA manufacturing involves assembling electronic components onto a bare printed circuit board (PCB). This process transforms an inert PCB into a fully functional electronic circuit. In industrial settings, PCBA refers to the complex procedure of mounting critical electronic components that enable systems in robotics, heavy machinery, automotive parts, medical equipment, and aerospace applications. Unlike consumer electronics, industrial PCBAs must withstand harsh conditions while maintaining consistent performance over extended periods.

The industrial PCBA manufacturing journey begins with circuit design using professional software, followed by material selection based on the specific application environment. Subsequently, the process involves fabricating the PCB, mounting components, and conducting rigorous testing to verify functionality.

Key Differences Between Consumer and Industrial PCBA

  • Durability: Industrial PCBAs are built for harsh environments, whereas consumer PCBAs are designed for standard conditions.
  • Thermal Management: Critical for high-power industrial applications; consumer electronics have less stringent requirements.
  • Tolerance Levels: Industrial applications require tighter tolerances.
  • Component Quality: Higher-grade components are used in industrial PCBA.
  • Testing Rigor: Industrial PCBAs undergo extensive testing protocols.

Industrial PCBAs require superior heat dissipation capabilities as insufficient thermal control can lead to component failure and reduced board lifespan. Additionally, they must maintain signal integrity in high-frequency applications to prevent signal decline and electromagnetic interference.

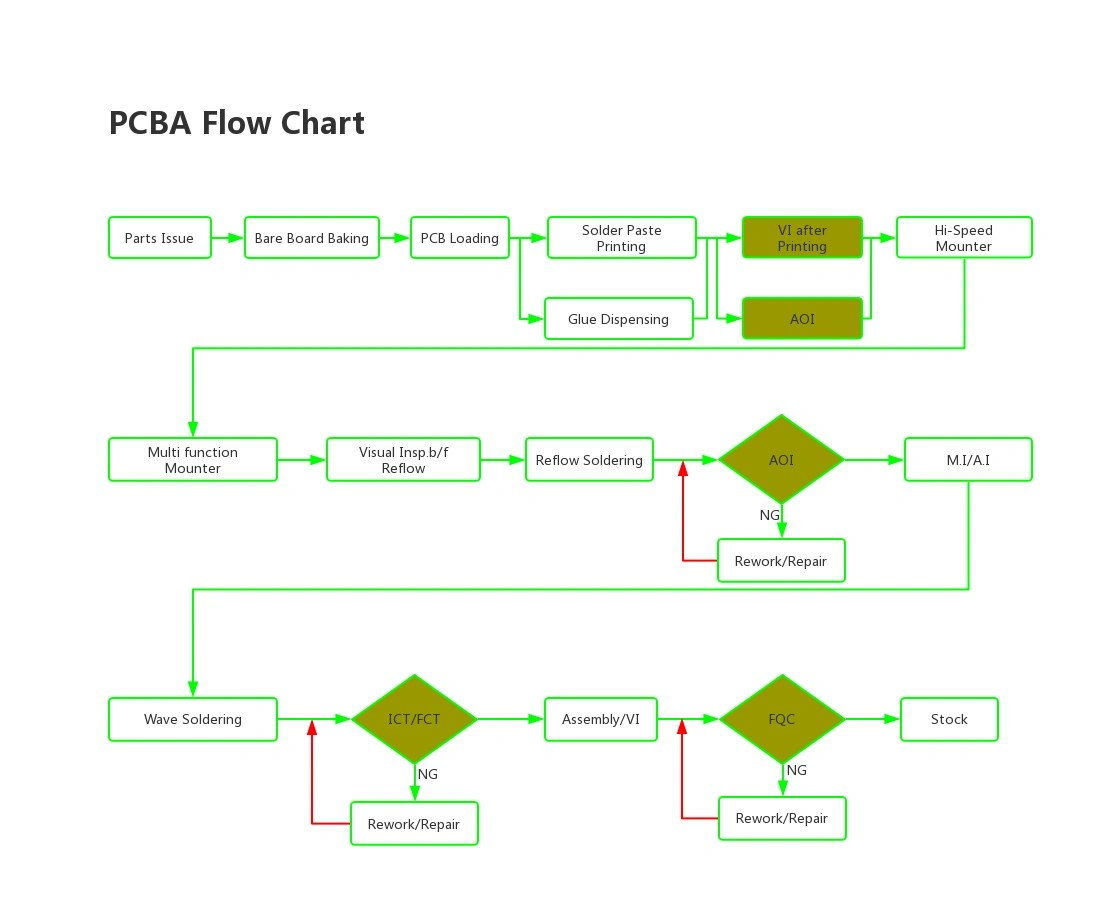

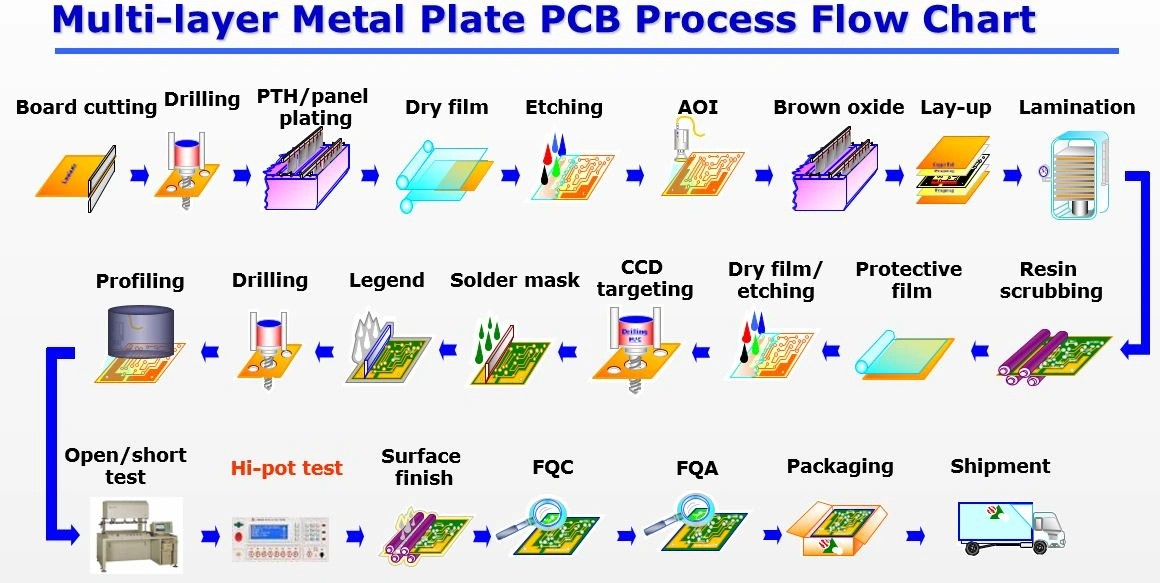

PCB Manufacturing Process Flow Chart: A High-Level Overview

The manufacturing process begins with PCB design and verification before moving to fabrication. First, engineers create schematics detailing necessary traces and connections. After designing, the process flows through several critical stages:

  1. Material preparation and layer creation
  2. Copper etching to form conductive pathways
  3. Drilling precision holes for component placement
  4. Application of solder mask to protect copper traces
  5. Component mounting using automated machinery
  6. Testing for quality assurance and reliability

Each step requires meticulous attention to detail. Industrial PCBAs often undergo additional inspection processes including automated optical inspection, X-ray testing, and burn-in testing to ensure long-term reliability.

Step-by-Step Breakdown of the PCBA Manufacturing Process

Schematic Design and Netlist Generation

Engineers begin with schematic development, creating detailed blueprints describing electrical component relationships. This step generates a netlist—an ASCII text file containing essential connectivity data, serving as the electrical roadmap for the board.

Bill of Materials (BOM) Creation and Validation

A comprehensive Bill of Materials lists all components required for assembly. It includes quantities, manufacturer part numbers (MPNs), reference designators, and descriptions. Validation ensures that all information is accurate, minimizing manufacturing errors.

PCB Fabrication and Layer Stack-up

Stack-up design impacts signal integrity and overall performance. Industrial PCBs require advanced stack-up techniques for thermal management. Lamination involves combining sheets of copper foil, prepreg, and laminate.

Component Placement and Soldering Techniques

Components are placed using Surface Mount Technology (SMT) or Through-Hole Technology (THT). SMT uses automated pick-and-place machines, while THT involves inserting leads through holes in the PCB. Mixed technology boards use both methods.

Reflow Soldering and Wave Soldering Methods

  • Reflow Soldering: Melts solder paste in controlled heating stages.
  • Wave Soldering: Passes boards over a wave of molten solder, mainly for THT components.

Each technique requires precise temperature control to prevent defects.

Final Assembly and Cleaning Procedures

Boards are inspected using AOI or X-ray testing. Cleaning removes contaminants such as flux residue or solder balls. Final functional testing ensures quality before packaging.

Design and Assembly Best Practices for Industrial Reliability

Thermal Management for High-Power Components

Temperature is a primary cause of failure in industrial electronics. Effective heat management strategies include:

  • Thick copper layers
  • Thermal vias
  • Insulated Metallic Substrates (IMS) with high thermal conductivity

Mechanical Constraints in Harsh Environments

To ensure mechanical stability:

  • Use reinforced mounting holes
  • Design shorter, thicker traces
  • Choose high-Tg materials for high-temperature operations

Power Distribution and Grounding Strategies

Key elements of a good Power Distribution Network:

  • Dedicated ground planes
  • Separate ground planes for different voltage sections
  • Uniform, wide ground traces

Routing Guidelines for Signal Integrity

For high-frequency signals:

  • Use stackups with even layer multiples
  • Ensure proper coupling in differential pairs
  • Choose substrates with low loss tangent
  • Keep traces short and minimize vias

DFM and DFT Checklist Before Gerber Generation

Design for Manufacturing (DFM) tips:

  • Ensure stackup meets mechanical and electrical requirements
  • Include clear documentation
  • Design correct land patterns
  • Allow sufficient space for assembly
  • Avoid acid traps

Testing, Inspection, and Quality Control Measures

Automated Optical Inspection (AOI) and X-ray Testing

  • AOI: Detects surface defects such as misaligned components and short circuits.
  • X-ray: Inspects internal layers, BGA connections, and solder voids.

In-Circuit Testing (ICT) for Functional Validation

Two ICT methods:

  • Bed of nails: Uses spring-loaded pins
  • Flying probe: Uses movable probes for flexible testing

Both methods validate component placement and electrical properties.

Burn-in Testing for Long-Term Reliability

Burn-in testing simulates long-term usage:

  1. Set test parameters
  2. Apply thermal and electrical stress
  3. Monitor for failures

IPC Standards Compliance for Industrial PCBs

Key IPC standards:

  • IPC-A-610: Electronic assembly acceptability
  • IPC-A-600: Printed board acceptability
  • J-STD-001G: Soldered assembly requirements
  • IPC-7711/7721C: Rework and repair guidelines

Compliance ensures consistent quality and reliability.

Perfecting Your Industrial PCBA Manufacturing Process

Throughout this guide, we’ve explored the critical elements that make industrial PCBAs vastly different from consumer counterparts. These boards must withstand extreme conditions and maintain functionality over time.

Each manufacturing step requires precision and adherence to quality standards. Effective thermal management is crucial due to heat-induced failures. Mechanical design must account for shock and vibration. Signal integrity and power distribution are essential for high-frequency and high-power applications.

Finally, rigorous quality control—through AOI, X-ray, and burn-in testing—ensures field reliability. IPC standards provide a framework for maintaining quality across manufacturing.

By following the best practices in this guide, manufacturers can produce industrial PCBAs that perform reliably under the harshest conditions, supporting critical systems in demanding environments.
