In the electronics manufacturing industry, the costs of PCB (Printed Circuit Board) fabrication and PCBA (Printed Circuit Board Assembly) are pivotal factors influencing the overall product budget. For businesses and engineers aiming to control costs and enhance cost-effectiveness, a clear understanding of these cost components is essential. This article dives deep into the composition of PCB and PCBA costs, exploring three core dimensions—materials, manufacturing processes, and production quantities—to help you make smarter decisions in design and production.

1. Fundamental Definitions of PCB and PCBA

PCB (Printed Circuit Board) is the fundamental carrier that provides electrical connections and mechanical support for electronic components. Common types include single-sided, double-sided, multilayer, and HDI boards.

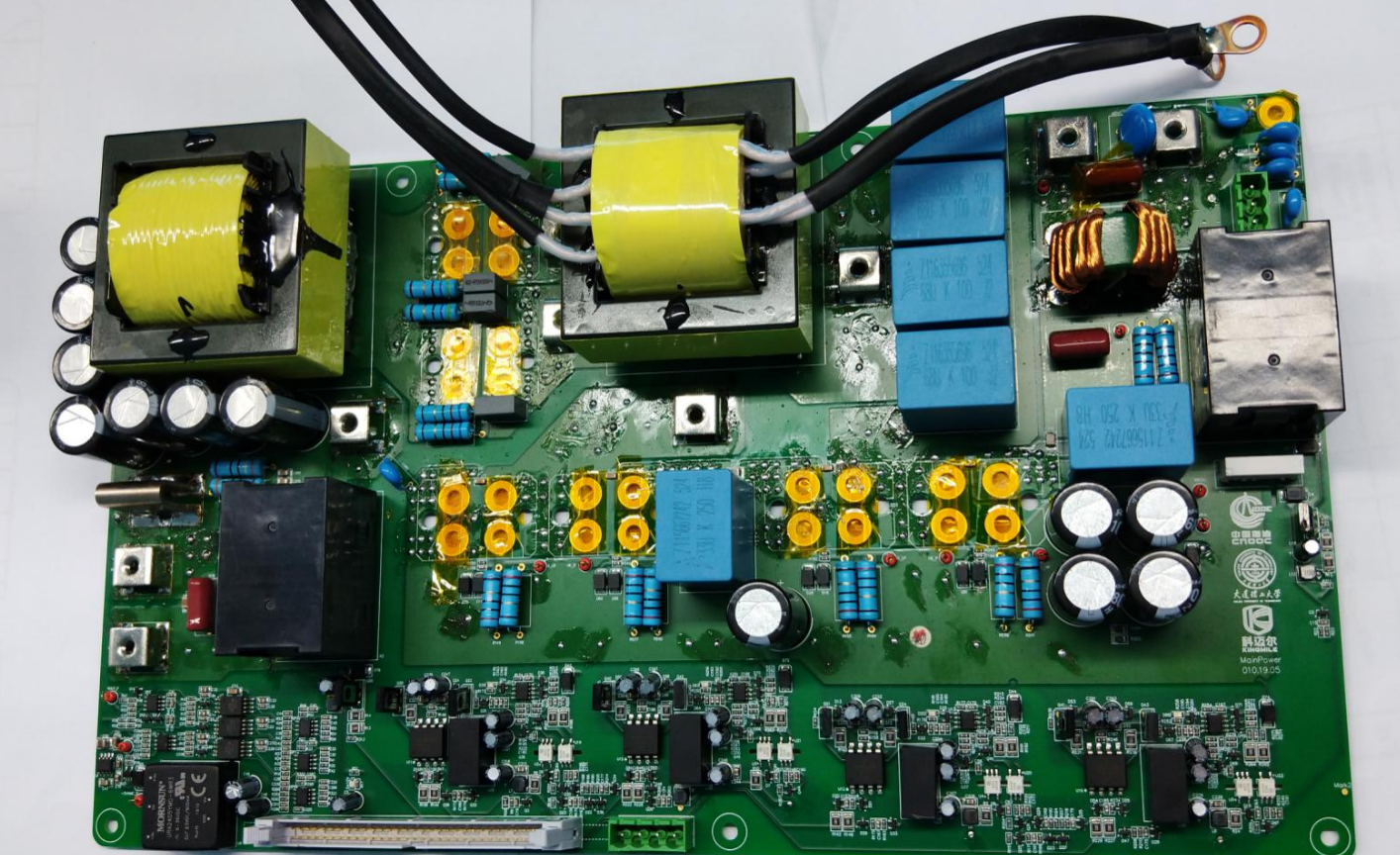

PCBA (Printed Circuit Board Assembly) refers to the process of soldering and assembling components onto the PCB. It involves several stages including SMT (Surface Mount Technology), THT (Through-Hole Technology), soldering, and testing.

Understanding the distinction helps clarify the origins of cost.

2. Breakdown of PCB Manufacturing Costs

PCB manufacturing primarily involves material costs, processing costs, and complexity- or quantity-related expenses.

1. Material Costs

Materials constitute the largest portion of PCB manufacturing expenses, including:

  • Substrate: The most common material is FR-4 epoxy fiberglass. High-frequency applications may require Rogers, aluminum-based, or flexible materials like PI. Price differences are significant; FR-4 is around $0.05/cm², while Rogers can reach $0.3/cm².
  • Copper Thickness: Standard thickness is 1oz/ft² (~35μm). High-power or high-current boards need thicker copper, significantly raising costs.
  • Solder Mask & Silkscreen: Green is standard. Special colors (black, white, blue) or optical features incur additional charges.
  • Surface Finish: Methods include OSP, HASL, ENIG, Immersion Silver, etc. These vary in solderability and joint reliability, with prices ranging from a few to several dozen USD per square meter.

2. Process Costs

PCB production involves multiple processes, each influencing cost:

  • Layer Count: More layers mean more materials and complexity. A 4-layer board can cost 60%-100% more than a 2-layer board; prices increase exponentially for 8+ layers.
  • Trace Width/Spacing: Widths under 6mil require high-precision machinery, increasing costs with tighter tolerances.
  • Drill and Via Types: Blind/buried vias are significantly costlier than through-holes. Laser drilling and microvias are expensive.
  • Impedance Control: Required for high-frequency signals. Precision in stack-up, trace routing, and dielectric thickness control adds cost.
  • Board Outline: Complex contours or CNC routing and V-CUTs increase mechanical processing time and expense.

3. Quantity & Batch Effects

  • Board Size & Panelization: Efficient panel design maximizes space usage. Custom panels may reduce efficiency.
  • Order Volume (MOQ): Prototypes or small batches have higher unit costs. Mass production spreads out fixed costs, significantly lowering unit price.
  • Prototype vs. Mass Production: Prototyping usually involves fast delivery, more manual steps, and frequent line changes—raising per-unit costs.

3. Breakdown of PCBA Assembly Costs

Compared to PCB fabrication, PCBA costs are more complex, involving component sourcing, SMT, THT soldering, AOI testing, and more.

1. Component Costs

This is the primary contributor to PCBA expenses, influenced by:

  • BOM Diversity: More part numbers increase purchasing and inventory management costs.
  • Brand & Package: Imported ICs are pricier than domestic ones. BGA/QFN packages are more complex and costly than SOP/0402.
  • Procurement Channels: Prices vary significantly between OEMs, authorized distributors, and brokers. Volume affects bargaining power.component substitution

2. Assembly Labor & Process Costs

  • SMT (Surface Mount Technology): Pricing depends on component count and machine type (high-speed, vision alignment). Typical range: $0.01–$0.03 per placement.
  • THT (Through-Hole Technology): Manual insertion costs are high. Complex boards may require wave or hand soldering.
  • Solder Paste & Flux: Lead-free materials cost 10%–20% more than leaded equivalents.
  • Testing Processes: AOI, ICT, and FCT are common. Higher coverage and stricter testing raise costs.

3. Process Complexity & QC Requirements

  • Technical Difficulty (e.g., double-sided SMT, BGA rework): Requires more equipment and skilled labor.
  • Quality Standards (e.g., IPC-A-610): Higher standards mean more inspection and rework costs.
  • Delivery Time: Expedited schedules require overtime, extra staffing, and higher costs (10%-50% increases).

4. How to Reduce PCB and PCBA Costs

Once you understand the cost structure, consider these optimization strategies:

  1. Design Optimization: Minimize PCB layers, simplify routing, improve panel efficiency, and avoid custom processes.
  2. Component Selection: Use generic models, cross-brand substitutes, and reduce BOM complexity.
  3. Consolidated Procurement: Group orders to reduce sample runs and enhance negotiation leverage.
  4. Partner with Experienced Factories: Skilled manufacturers offer design feedback, minimizing rework and scrap.
  5. Long-term Partnerships: Strategic relationships with suppliers often result in better pricing and service.

Aim for Optimal, Not Minimal Cost

PCB and PCBA costs are shaped by a complex interplay of factors—not just a single variable. The earlier these cost considerations are addressed in product development, the better the chances of budget control and enhanced competitiveness.

We hope this article helps you grasp the roots of cost structures and serves as a reference for your electronic product development, component selection, and mass production planning.
