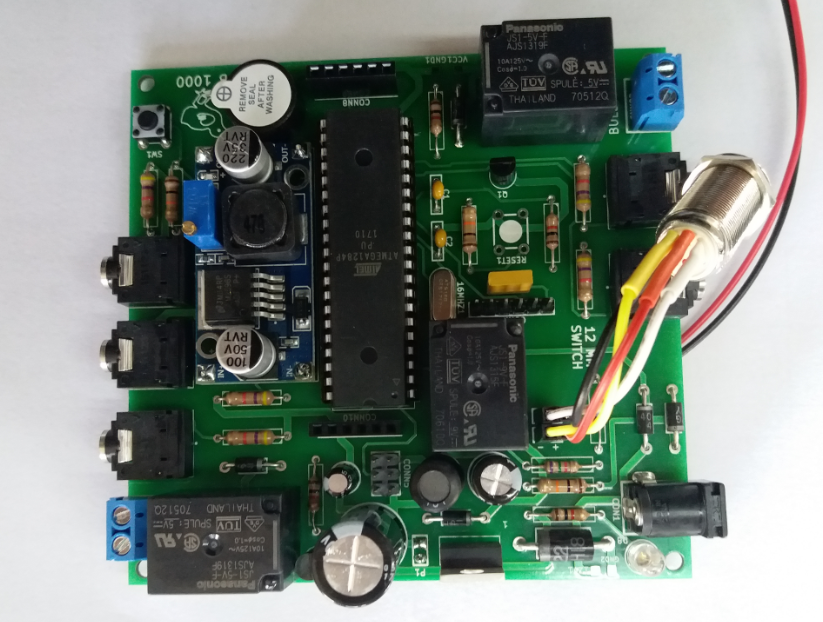

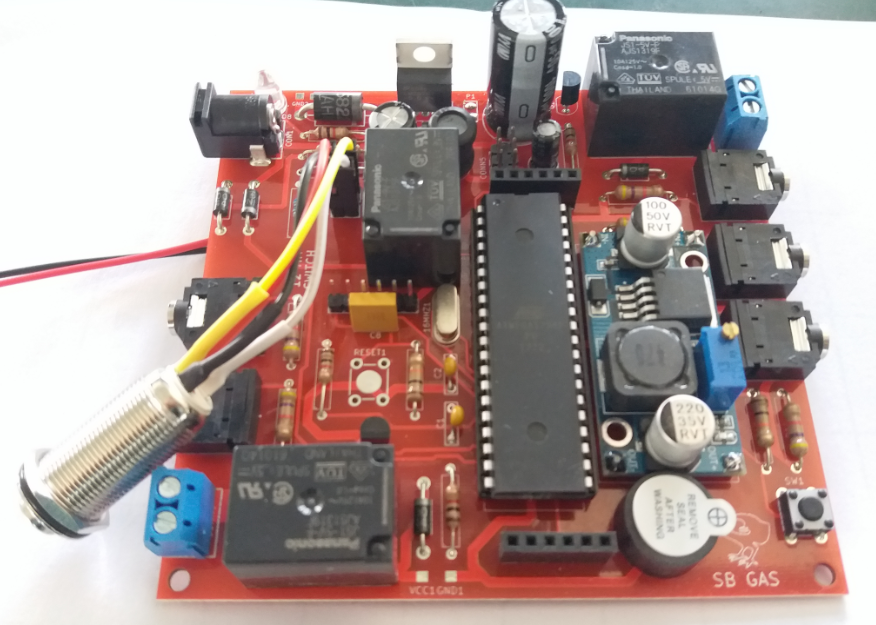

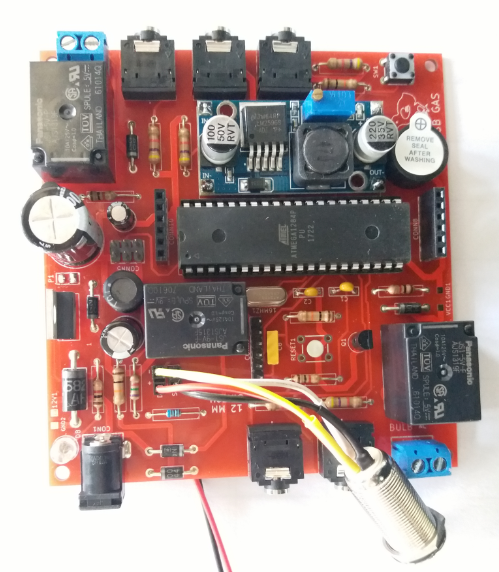

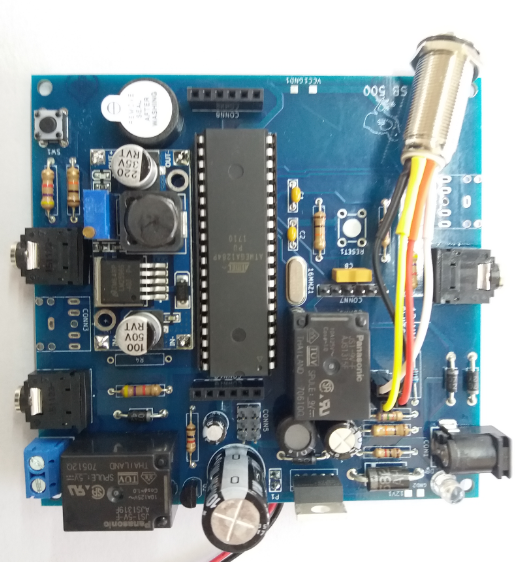

With the rapid growth of smart security systems, garden alarm equipment has become an essential part of modern residential safety. Recently, our company received an order for three types of PCBs designed specifically for garden alarm devices. Although these boards appear quite similar in structure, subtle differences in components require meticulous production and assembly processes. This article provides a comprehensive overview of the PCB and PCBA features, challenges, and market prospects for this project, ensuring an SEO-friendly and professional perspective.

PCB Specifications for Garden Alarm

Structural Features

  • Layer count: 2-layer board
  • Track width/distance: 0.36mm
  • Pad treatment: Oil-filled in via holes
  • TG value: 130TG
  • Vias: PTN & NPTH on the same board
  • Material: KB high-quality base material
  • Solder mask & Silk screen: Green solder mask with white silk screen
  • Anti-CAF: Not required
  • PCB Class: IPC CLASS 2
  • Panel size: 60*73mm (one piece per panel)
  • X-OUT PCB: Acceptable
  • HDI PCB: Not required
  • Testing: 100% electronic test
  • V-CUT: Supported
  • Test points: Integrated on the board
  • Surface finishing: LF-HASL (Lead-Free Hot Air Solder Leveling)

Key Advantages

  • Reliable electrical performance ensured by IPC CLASS 2 compliance.
  • LF-HASL surface finishing for enhanced solderability.
  • Oil-filled via holes to improve durability and stability.

PCBA (Assembly) Specifications

Assembly Features

  • Components purchasing: Acceptance of equivalent Chinese brand components
  • Minimum component size: 0402 package (no 0201)
  • Maximum component height: 30mm (capacitor)
  • Special considerations:
    • J1, J2, J3, J5, J6 connectors have similar design but require precise directional placement.
    • Equivalent components are not acceptable for critical parts.
    • No BGA components included.
    • DIP component pins must be cut to ensure proper height fit.
    • Chips include solder bridges between pads.
    • LED lights: 12W LED integration.

Assembly Challenges

Due to the similarity between the three board versions, technicians must carefully distinguish materials and mark differences before soldering. Clear and detailed work instructions (WI) are the standard for preventing assembly errors. Workers must strictly follow these documents to avoid mistakes during manual soldering.

Functional Overview

The garden alarm PCB serves as the core control board of the system. Its main functions include:

  • Energy management: Requires extended charging cycles before operational use.
  • Control hub: Manages all alarm functions and triggers alerts based on programmed instructions.
  • Alarm activation: Immediately activates the buzzer upon detecting abnormal activity, ensuring property safety.

Market Prospects

The garden alarm system is primarily marketed in the United States, where single-family homes and townhouses dominate the residential landscape. With large gardens being common in American households, property owners place strong emphasis on security and safety.

Market Advantages

  1. High demand: Growing awareness of property protection drives continuous demand.
  2. Broad coverage: Suitable for villas, suburban homes, and townhouses.
  3. Fast updates: The market is highly dynamic, requiring frequent product upgrades.
  4. Long-term orders: Steady demand ensures sustainable production and supply opportunities.

Quality Assurance & Professional Services

Our company adheres to strict ISO9001 quality management systems, ensuring high standards in PCB production and assembly. For products involving BGA pads, we provide X-ray inspection to guarantee soldering precision.

Why Choose Us?

  • Advanced PCB manufacturing capabilities
  • Professional PCBA assembly services
  • Strict quality control and testing
  • Flexible component sourcing options
  • Customer-oriented project support

We welcome global customers to discuss their projects with us. With professional service and reliable quality, we are proud to be your trusted PCB and PCBA partner.

The Main Board for Garden Alarm exemplifies how precision PCB design and reliable PCBA assembly support the growth of smart security devices. With a strong market in the U.S. and increasing global demand for property protection, this product highlights the importance of quality, efficiency, and innovation in PCB manufacturing.

For high-quality PCB and PCBA solutions, feel free to contact us. Our expertise ensures your products achieve both technical excellence and commercial success.
