Near Field Communication (NFC) is a short-range wireless communication technology that enables easy, secure, and fast data exchange between devices. By leveraging unique signal attenuation, NFC offers high bandwidth with low energy consumption over very short distances. This makes it a preferred solution for applications such as access control, public transportation ticketing, contactless payments, logistics management, and device pairing.
In this case study, we present the end-to-end process of assembling and testing NFC PCBs for an Argentina-based client. The order consisted of 2,500 units, each requiring precise manufacturing, assembly, and quality assurance.
Project Overview
- Order Quantity: 2,500 pcs
- PCB Type: TG140, 94 V-0, FR4 material
- Layer Count: Single layer
- Dimensions: 62 mm × 53 mm
- Board Thickness: 1.0 mm
- Surface Finish: Lead-free HASL
Copper Thickness: 1 oz- Solder Mask Color: Green
- Silkscreen Color: White
- Panelization: 4 pcs per panel, separated via V-cut
The PCB layout was straightforward, without complex trace spacing or fine-pitch pads, which allowed for efficient mass production.
Assembly Process
Component Specifications
The Bill of Materials (BOM) contained five unique components, with detailed part numbers for precise sourcing. The design required both SMD and DIP component placement on both sides of the board.
One critical DIP component, JP1, was located centrally. The client specified that JP1’s pad height must be thinner than the adjacent IC to ensure proper housing fit. Solder joint aesthetics were also a priority, as any irregularities could impact enclosure compatibility.
Assembly Guidelines
The client provided a dedicated assembly guide emphasizing JP1’s soldering requirements. Our assembly team implemented special handling procedures:
- Adjusting solder volume for JP1 pads
- Ensuring consistent solder height and clean joints
- Adding protective measures during packaging to avoid damage to protruding parts
Testing Procedure
Testing was a critical stage to ensure 100% functional boards before shipment.
Client-Provided Resources
The client supplied:
- A detailed test process PDF
- Three instructional videos
- Recommendations for using the mobile app “NFC Taginfo by NXP”
Internal Testing Approach

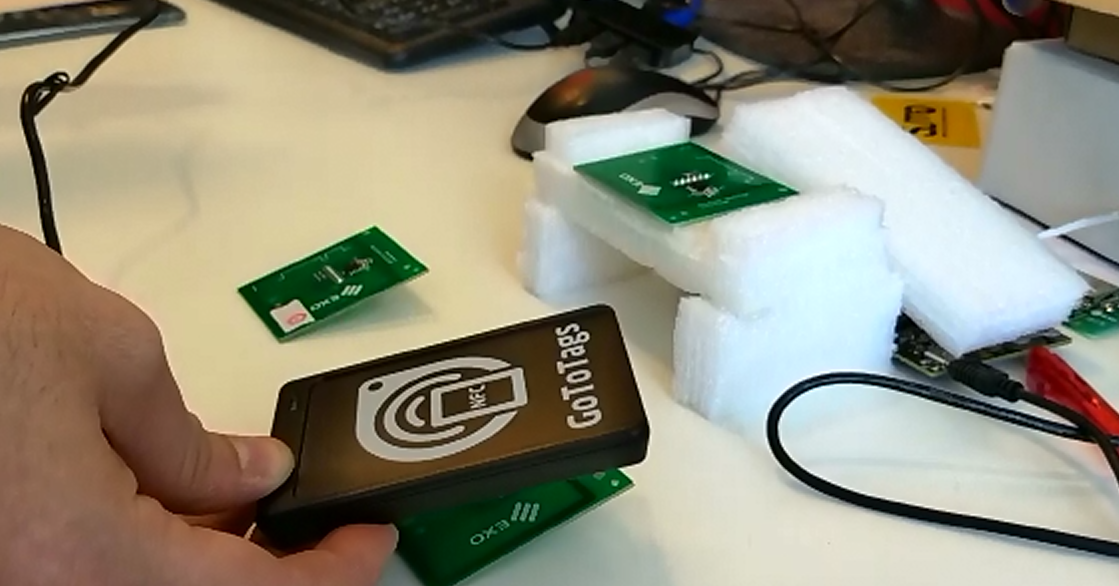

Due to tight delivery deadlines, we procured our own NFC testing device instead of waiting for the client’s shipment. Testing involved:
- Launching the NFC app on a smartphone
- Placing the phone over the assembled PCB
- Verifying detection and data exchange
Failure analysis showed that any detection issue was likely due to a faulty capacitor, PCB coil, or IC. Fortunately, all 2,500 units passed the test successfully.
Application Scenarios of NFC Devices
Our client’s NFC device has wide-ranging applications:
1. Access Control & Ticketing
Used for secure entry systems, event ticket verification, and public transport boarding.
2. Contactless Payments
Enables transactions by bringing a device close to an NFC-enabled POS terminal.
3. Device Pairing & Data Transfer
Facilitates point-to-point connections between NFC devices for sharing music, photos, or contacts.
4. Information Browsing
Allows NFC smartphones to connect to smart posters, public kiosks, or transport terminals for real-time data access.
5. Remote Access Control
Users can authorize or revoke entry permissions remotely via GPRS-connected NFC systems.
This project demonstrates the importance of precision in PCB assembly and rigorous functional testing, especially for NFC-enabled products. By adhering to strict client requirements, implementing specialized soldering techniques, and ensuring 100% pass rates in functional testing, we delivered 2,500 high-quality NFC PCBs on schedule.
The success of this order highlights our capability to handle specialized PCB projects with complex quality standards, making us a reliable partner for clients seeking top-tier PCB assembly and testing services.
