In the rapidly evolving transportation market, electronic devices play a vital role in ensuring efficiency, safety, and convenience. Among them, electric meters for taxis and three-wheelers stand out as indispensable tools. One notable product is the STS30S taximeter, widely adopted across India, especially in the rural market. This article introduces the product’s design, PCB and PCBA specifications, and assembly challenges, while highlighting how one-stop PCBA service ensures reliability and scalability.

Understanding the STS30S Taximeter

What is a Taximeter?

A taximeter is a mechanical or electronic device installed in taxis and auto-rickshaws that calculates fares based on distance traveled and waiting time. The STS30S version is designed specifically for Indian three-wheelers, combining durability with affordability.

Market Application

  • Widely used in rural and urban areas of India.
  • Cost-effective and reliable for autorickshaw drivers.
  • Potential to integrate with smart technologies such as GPS and fleet management systems.

PCB Design Specifications

The STS30S main board is designed with practicality and manufacturability in mind. Below are the detailed PCB parameters:

General Parameters

  • Board Layers: 2 layers
  • Board Thickness: 1.6 mm
  • Copper Thickness: 1 oz
  • Material: FR4, TG130
  • Surface Finish: Lead-Free HASL
  • Solder Mask Color: Green with white silkscreen
  • IPC Standard: Class 2

Panelization & Fabrication

  • Designed for 2 pcs per panel.
  • V-Cut technology used for easy separation after assembly.
  • No X-out boards, ensuring consistent quality.
  • Conventional production flow, reducing manufacturing risks and costs.

PCBA Assembly Challenges and Solutions

IC Components & Fine Pitch

One key challenge was the tight pin spacing of ICs. Skilled SMT technicians carefully managed soldering to avoid bridging issues. Enhanced inspection and solder paste control were applied to maintain high assembly yield.

Customized Components Procurement

  • Coil Inductor: Custom-made by suppliers with a lead time of around 4 weeks.
  • Capacitors: A large capacitor with slight overhang was accommodated without affecting the assembly, thanks to thoughtful enclosure design.

Protective Coating

Customers required conformal coating for ICs and connectors to protect against dust and moisture, thereby extending the product’s lifecycle in harsh outdoor environments.

Back-Side Design Features

  • SMT for ICs on the back side.
  • 9 touch points for driver interface (on/off functions).
  • Two white connectors coated for additional protection.

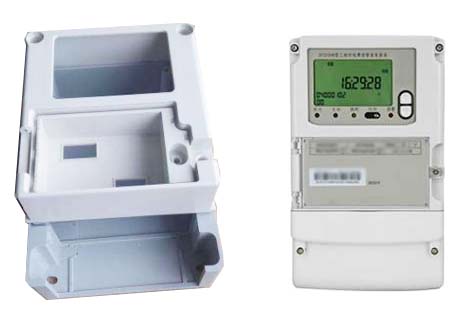

Final Assembly & Enclosure

  • PCBA secured with four screws at the corners and reinforced with tape inside the enclosure.
  • Additional two screws inside the box for crash resistance.
  • LCD screen integrated to display fare and electric meter readings.
  • Compact and durable design ensures easy installation and replacement in vehicles.

Technical Specifications of STS30S

  • Dimensions: 155mm × 60mm × 50mm
  • Sensors: Electronic, magnetic, or mechanical
  • Display: 7-segment LED
  • Mounting: Rear left side of driver
  • Operating Temperature: -30°C to 70°C
  • Power Supply: 9–16V DC (nominal), up to 52V DC short-term
  • Body: Durable plastic enclosure
  • Functions:
    • Fare inhibit above speed threshold
    • Multiple rate support (time-based auto rate change)
    • Last fare memory
    • Built-in signal divider/amplifier

Why One-Stop PCBA Service Matters

A one-stop PCBA solution covers every stage—from PCB design, component sourcing, assembly, to final testing. For products like the STS30S taximeter, this ensures:

  1. Faster Time-to-Market: Eliminating multi-vendor coordination.
  2. Cost Optimization: Efficient procurement and manufacturing.
  3. Consistent Quality: IPC Class 2 compliance and rigorous inspections.
  4. Customization Flexibility: Ability to meet specific client needs (e.g., customized inductors).
  5. Durability & Reliability: Conformal coating, robust enclosure, and safety design considerations.

Market Outlook in India

The STS30S taximeter is tailored to the Indian transportation ecosystem:

  • Affordable for autorickshaw drivers.
  • Durable enough for rural and urban environments.
  • Scalable to integrate with IoT and smart fleet management.
  • Positioned for long-term adoption due to government regulations on metering and passenger safety.

The STS30S taximeter demonstrates how thoughtful PCB and PCBA design, combined with reliable one-stop service, creates a durable and cost-effective solution for India’s growing transport sector. By addressing assembly challenges, ensuring protective measures, and designing for scalability, this product not only serves today’s needs but also lays a foundation for future smart mobility solutions.
