Optimizing Output Impedance for Better Amplifier Circuit Boards

When it comes to designing a power amplifier circuit board, especially one utilizing class AB amplification stages, achieving optimal performance is a top priority. One critical factor that can significantly impact the amplifier’s performance is the output impedance. In this comprehensive guide, we will explore various techniques and strategies to reduce output impedance effectively, ensuring that your amplifier delivers high-quality sound and meets your project’s requirements.

I.Understanding Class AB Amplification

Before we dive into ways to reduce output impedance, let’s briefly review what class AB amplification is and why it’s a popular choice for audio amplifiers. Class AB amplifiers combine the best of both class A and class B amplifiers, offering high efficiency and excellent linearity. This makes them ideal for audio applications where fidelity and efficiency are crucial.

II.Reducing Output Impedance on Your Amplifier Circuit Board Design

1. Careful Component Selection

Select high-quality components with low internal resistance to minimize output impedance. Components like the 2SC5200 and 2SA1943 transistors are excellent choices for your amplifier circuit.

2. Feedback Networks

Implement negative feedback loops to stabilize and reduce output impedance. These networks provide precise control over the amplifier’s output impedance, especially in class AB amplifiers.

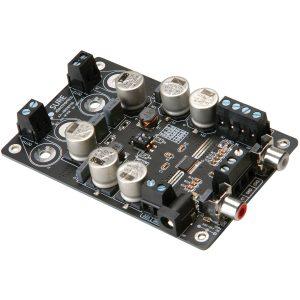

amplifier circuit board

3. Impedance Bridging

Match the amplifier’s output impedance to the load impedance using output transformers or impedance matching networks. This technique is useful when driving speakers with varying impedance levels.

4. Output Stage Design

Design a robust output stage using high-current transistors. This ensures low output impedance and efficient power delivery.

5. Power Supply Regulation

Maintain a stable and well-regulated power supply voltage to minimize output impedance. Voltage fluctuations can lead to variations in output impedance.

6. Grounding and Layout

Implement proper grounding and layout techniques to minimize unwanted capacitance and inductance that can contribute to higher output impedance. A well-designed PCB layout is crucial.

7. Heat Management

Manage temperature effectively with heat sinks and thermal management solutions to maintain component stability and prevent impedance fluctuations.

8. Quality Printed Circuit Boards

Use high-quality PCBs designed for specific ICs like the TDA2030 or PAM8610 to enhance circuit performance, including reducing output impedance.

9. Utilizing IC Boards

For compact or integrated amplifier designs, consider using IC boards like the 7294 IC board, 2030 IC board, or 7297 IC board. These boards often come with optimized layouts and components for lower output impedance.

10. Testing and Tuning

Thoroughly test and tune your amplifier to ensure it meets the desired output impedance specifications. Use equipment like oscilloscopes and impedance analyzers for fine-tuning.

Conclusion

Achieving a low output impedance in a class AB power amplifier circuit board design is crucial for delivering high-quality audio with minimal distortion. By carefully selecting components, incorporating feedback networks, impedance bridging, optimizing the output stage, and paying attention to power supply regulation, grounding, and layout, you can significantly reduce output impedance and improve the overall performance of your amplifier.

Remember that quality PCBs and IC boards, such as the TDA2030 amplifier circuit 12V, PAM8610 amplifier board, or 7294 IC board, can simplify the design process and contribute to lower output impedance. With these techniques and strategies in mind, you can create audio amplifiers that meet the demands of even the most discerning audiophiles.
