PCB Manufacturing vs. Assembly: Understanding the Complete Journey from Bare Board to Finished Product

In the electronics manufacturing industry, the terms PCB manufacturing and PCB assembly (PCBA) are often used interchangeably. Many customers even assume they refer to the same process. In reality, however, these are two fundamentally different stages of production, each with its own technical focus, cost structure, and quality implications.

If you are sourcing PCB or PCBA services, or transitioning a product from R&D to mass production, clearly understanding the difference between PCB manufacturing and assembly can significantly improve decision-making and project success.

1. What Is PCB Manufacturing?

1.1 Definition of PCB Manufacturing

PCB manufacturing, also known as bare board fabrication, refers to the process of transforming design files (Gerber data) into a physical printed circuit board without any electronic components installed.

The final output of PCB manufacturing includes:

  • Single-sided and double-sided PCBs
  • Multilayer PCBs (4-layer, 6-layer, 8-layer, and beyond)
  • Flexible PCBs (FPC) and rigid-flex boards

At this stage, the focus is on physical structure and electrical integrity, not circuit functionality.

1.2 Key Processes in PCB Manufacturing

1.2.1 Engineering Review and DFM Analysis

Before production begins, manufacturers perform DFM (Design for Manufacturability) analysis, evaluating:

  • Trace width and spacing
  • Hole size-to-board thickness ratio
  • Controlled impedance requirements
  • Layer stack-up design

1.2.2 Inner Layer Imaging and Lamination

For multilayer boards, inner layers are fabricated first using imaging and etching processes. These layers are then laminated together under high temperature and pressure to ensure accurate layer alignment.

1.2.3 Drilling and Plating

Mechanical drilling or laser drilling is used to create vias and through-holes, followed by chemical copper deposition and electroplating to form plated through holes (PTH).

1.2.4 Outer Layer Processing, Solder Mask, and Surface Finish



Common surface finish options include:

  • HASL / Lead-Free HASL
  • ENIG (Electroless Nickel Immersion Gold)
  • OSP
  • Immersion Silver or Immersion Tin

1.3 The Core Value of PCB Manufacturing

  • Determines long-term reliability and durability of the board
  • Directly affects signal integrity (SI) and power integrity (PI)
  • Forms the physical foundation for high-speed and high-frequency designs

2. What Is PCB Assembly (PCBA)?

2.1 From Bare Board to Functional Circuit

PCB assembly (PCBA) is the process of mounting and soldering electronic components onto a fabricated PCB according to the BOM and placement files, transforming the board into a fully functional electronic module.

Once assembled, the PCB becomes an active part of a complete electronic system.

2.2 Main PCBA Process Flow

2.2.1 BOM Management and Component Sourcing

The complexity of PCBA largely depends on:

  • Number and types of components
  • Advanced packages such as BGA, QFN, or 01005
  • Component traceability and substitution strategies

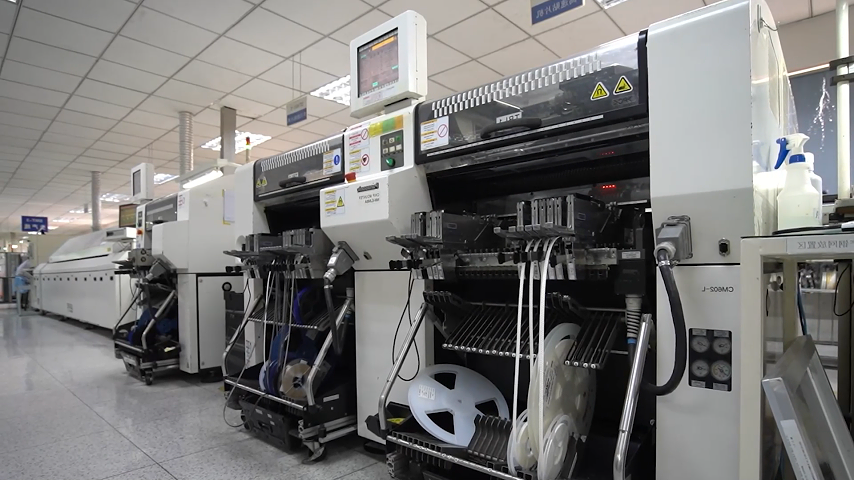

2.2.2 SMT Assembly Process

Surface Mount Technology (SMT) is the core of modern PCB assembly and includes:

  • Solder paste printing
  • SPI inspection
  • High-speed pick-and-place
  • Reflow soldering

2.2.3 THT Assembly and Selective Soldering

Through-hole technology (THT) or selective soldering is still required for connectors, power components, and high-current applications.

2.2.4 Inspection and Testing

Typical inspection and testing methods include:

  • AOI (Automated Optical Inspection)
  • X-ray inspection for BGA solder joints
  • ICT and FCT functional testing

2.3 Key Challenges in PCBA

  • Solder joint reliability
  • Component compatibility
  • Process window control
  • Flexibility for high-mix, low-volume (HMLV) production

3. Core Differences Between PCB Manufacturing and Assembly

3.1 Product Form Perspective

  • PCB Manufacturing: A passive structure with no electrical functionality
  • PCBA: An active, functional electronic assembly

3.2 Technical Focus Comparison

PCB Manufacturing Focuses On:

  • Layer-to-layer registration accuracy
  • Copper thickness control
  • Impedance consistency
  • Material selection (FR-4, high-Tg, PTFE)

PCB Assembly Focuses On:

  • Soldering yield and consistency
  • Component reliability
  • Process stability
  • Design for Testability (DFT)

3.3 Cost Structure Differences

PCB manufacturing costs are mainly driven by:

  • Raw materials
  • Number of layers
  • Process complexity

PCBA costs are largely influenced by:

  • Component sourcing
  • Labor and equipment depreciation
  • Testing and quality control

4. Why More Customers Choose One-Stop PCB + PCBA Services

4.1 Reduced Interface Risks

When PCB fabrication and assembly are handled by different suppliers, common issues include:

  • Pad designs unsuitable for assembly
  • Surface finishes incompatible with soldering processes

One-stop services enable early-stage optimization of both DFM and DFA (Design for Assembly).

4.2 Shorter Lead Time and Better Consistency

Unified supply chain management helps:

  • Shorten project cycles
  • Improve batch-to-batch consistency
  • Reduce communication costs

5. Choosing the Right Partner Matters More Than Price

PCB manufacturing and PCB assembly are two highly specialized yet tightly interconnected processes in electronics manufacturing. Understanding their differences allows engineers, purchasers, and project managers to make better supplier decisions and avoid costly risks during production.

As product lifecycles shorten and demand shifts toward high-mix, low-volume production, partners who truly understand both fabrication and assembly—and can seamlessly integrate them—are becoming the preferred choice for modern electronics projects.

If you are evaluating PCB or PCBA solutions, a good starting point is asking whether your supplier can truly bridge the gap between manufacturing and assembly.
