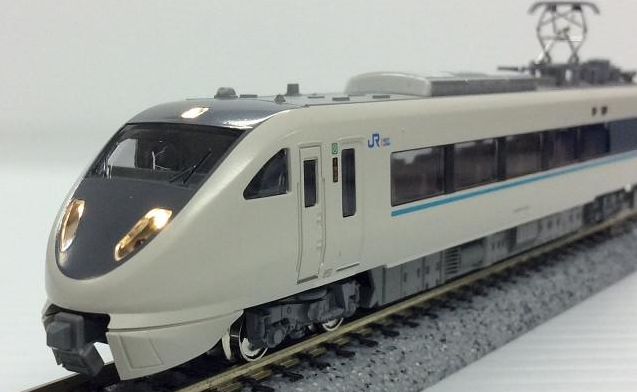

In the electronics manufacturing industry, printed circuit boards (PCBs) are everywhere — from consumer gadgets to industrial machinery. Recently, we took on an exciting challenge: producing PCBA (Printed Circuit Board Assembly) for a Japanese client’s model train project. At first glance, the PCB design appeared straightforward, but as we progressed, we realized it was far more intricate than expected. The client’s finished model train was a work of art, and our PCB had to match that same level of precision and craftsmanship.

Project Overview

The PCB was to be integrated into the model train, requiring it to be extremely compact and lightweight. The final board featured only 4–5 components, but each was unusually small and required advanced soldering skills.

Key specifications:

  • Material: FR4
  • Board Thickness: 0.6mm
  • Surface Finish: HASL
  • Copper Thickness: 1oz
  • Dimensions: 14 × 11 mm per piece
  • Components: 2 lead frames, 1 resistor, 4 LEDs (3014 and 3020 packages)

Despite its simplicity on paper, the project presented significant manufacturing challenges.

Manufacturing Challenges

1. Panelization Limitations

Due to the ultra-thin board thickness of 0.6mm, we could not use large panels. Larger panels would risk deformation during handling, leading to soldering alignment issues and potential defects.

2. Component Handling

The LEDs (3014 and 3020) were as small as grains of rice, making placement accuracy and solder quality critical.

3. LED Failures in Testing

During initial production, functional testing revealed that two PCBs had non-functioning LEDs. This prompted a rapid troubleshooting session with our engineering team.

Problem Analysis & Solutions

A. LED Pre-Baking

Issue: SMD LEDs tend to absorb moisture during storage. During reflow soldering, rapid expansion of absorbed water can damage internal structures, causing dead LEDs.

Solution: Implement a mandatory LED baking process before assembly.

  • Method 1: Bake reels directly in the oven at 75°C for several hours.
  • Method 2: For bulk LEDs, bake at 130°C for 1 hour.
  • Precaution: Baking time must not exceed 8 hours to prevent component degradation.

B. Low-Temperature Solder Paste

Issue: The miniature components could not withstand reflow temperatures above 200°C.

Solution: Use a tin-bismuth alloy solder paste with a peak reflow temperature between 170–200°C. This approach reduces thermal stress and is widely adopted in the LED industry.

C. Strict Hand Soldering Temperature Control

Issue: Excessive manual soldering temperatures can damage small, sensitive components.

Solution: Set strict temperature limits and ensure operators adhere to standard operating procedures during any manual rework.

Final Testing and Quality Assurance

After implementing these process improvements, subsequent production runs were flawless — all assembled boards passed functional tests.

We also emphasized the importance of replicating the customer’s testing process in-house:

  • Develop a custom test fixture to simulate the operating conditions.
  • Test 100% of the finished boards before shipment.

This extra step ensured product reliability, upheld our quality reputation, and built customer trust.

Key Takeaways

  • Miniature PCBs require specialized handling: Thin boards and tiny components increase the risk of defects.
  • Moisture-sensitive components need pre-treatment: Baking LEDs before use can drastically improve yield rates.
  • Low-temperature solder paste is essential for heat-sensitive parts.
  • End-to-end quality control — from raw materials to final testing — is the foundation of customer satisfaction.

Our model train PCBA project was a reminder that even the smallest products demand meticulous attention to detail. By adapting our process for thin boards, delicate LEDs, and specialized soldering requirements, we successfully delivered a high-quality, reliable product that delighted our client.

This case reinforces an essential truth in electronics manufacturing: precision is not optional — it’s the standard.
