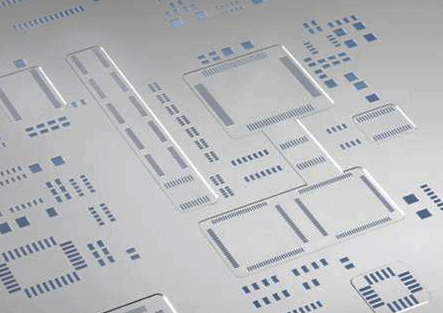

What is a PCB Stencil?

A stencil is a specialized mold used in the Surface Mount Technology (SMT) process. Its primary function is to accurately deposit solder paste onto specific areas of a bare PCB where components will be mounted.刷胶

Evolution of Stencil Technology

Originally, stencils were made from wire mesh materials like nylon or polyester and were referred to as masks. Later, wire mesh types evolved into copper and finally stainless steel due to durability requirements. However, traditional silk screens were prone to poor molding and low precision.

With the rapid development of SMT, demand for precision stencils increased, leading to the adoption of steel meshes. Initially made from iron or copper for cost reasons, these were eventually replaced by corrosion-resistant stainless steel SMT stencils.

Types of Stencils

Based on their manufacturing process, SMT stencils can be classified as:

  • Laser Stencil
  • Electropolishing Stencil
  • Electroforming Stencil
  • Bonding Stencil
  • Nickel Plating Stencil
  • Etching Stencil

Among these, laser stencils are the most commonly used.

Why Use a PCB Stencil?

Stencils eliminate the need for manual soldering of surface-mount components by allowing the precise application of solder paste directly onto the PCB. This not only improves accuracy but also boosts production efficiency.

Key Factors Affecting Stencil Quality

    1. Production Process
      The most reliable process combines laser cutting with electropolishing. Chemical etching and electroforming can lead to defects caused by uneven substrate surfaces or exposure/development errors.
    2. Materials
      Key components include:

      • Net Frame: Must be rigid and flat.
      • Screen: Poly screen is preferred for stable tension.
      • Steel Sheet: Grade 304 is ideal, with a matte finish preferred over a mirror finish for better paste adherence.
      • Adhesive Glue: Must be corrosion-resistant and durable.

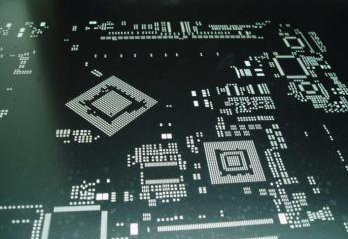

    3. Aperture Design
      The aperture (opening) design greatly impacts stencil performance. It should factor in the manufacturing process, width-to-thickness ratio, area ratio, and practical experience.开放式设计
    4. Production Data

Complete and detailed design files ensure higher-quality stencils. When multiple data formats are available, the more detailed version should be used.

  1. Cleaning
    Solder paste hardens quickly. If not cleaned promptly, it can clog the stencil openings. Cleaning is essential if printing stops for over an hour or when removing the stencil from the printer.
  2. Usage Method
    Proper printing techniques maintain stencil quality. Excessive pressure or misalignment during printing can damage the stencil.
  3. Storage
    Stencils should be stored in a designated area and never stacked. Improper storage can lead to frame bending and damage, making them difficult to handle.
