1. Overview of BGA
1.1 What is BGA?

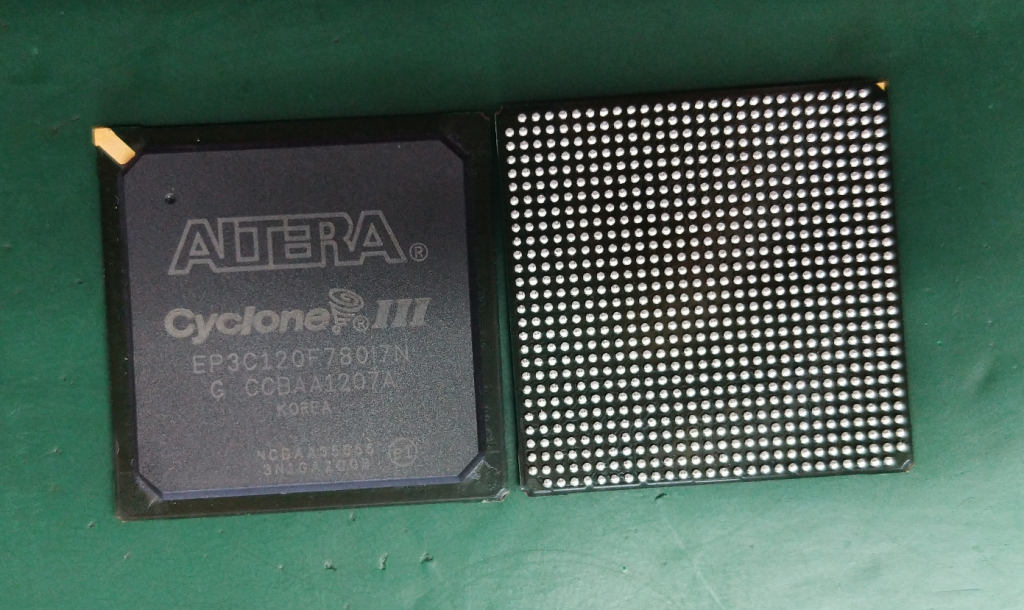

BGA (Ball Grid Array) is a surface-mount packaging technology for integrated circuits. Unlike traditional pin-through-hole designs, BGA uses solder balls at the bottom of the package to establish electrical connections with the PCB.
1.2 Features and Advantages of BGA
- High Density: Allows for more connection points, supporting more complex and integrated circuit designs
- Low Thermal Impedance: Good heat dissipation, suitable for high-speed processors and demanding applications
- Low Inductance: Shorter I/O paths reduce EMI and improve signal precision
1.3 Disadvantages of BGA
- Difficult to Inspect: Solder joints are hidden, making direct inspection challenging
- Low Ductility: Requires precise thermal management and robust compensatory design
- Complex Design Requirements: Needs more layers and fine-pitch routing on PCBs
- High Cost: Equipment, materials, and testing add to the total cost
2. BGA Classification
2.1 By Packaging Material
- Plastic BGA (PBGA): Low cost, suitable for high-volume production
- Ceramic BGA (CBGA): High-temperature resistance, used in industrial and aerospace applications
- Ceramic Column BGA (CCBGA): Uses columnar metal leads for improved reliability
- Tape BGA (TBGA): Smaller footprint, ideal for compact design
- Chip Scale Package (CSP): Ultra-small, nearly the size of the die, perfect for portable devices
3. Principle of BGA Thermal Reflow Connection
3.1 Solder Ball Placement

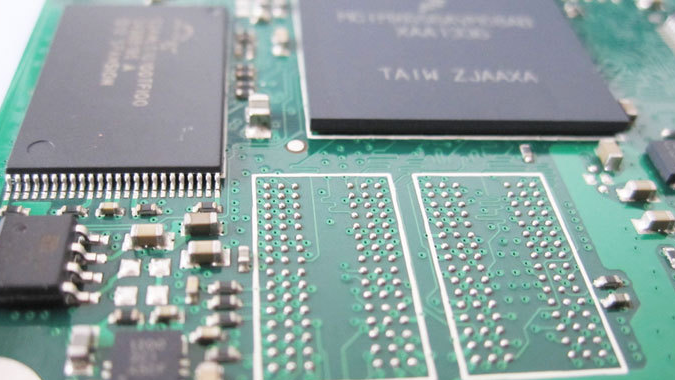

The metal pins are replaced by solder balls at the bottom of the BGA, which are positioned with flux and aligned to the copper pads on the PCB.
3.2 Self-Alignment During Reflow
During reflow soldering, molten solder balls realign themselves with PCB pads due to surface tension, ensuring precise contact.
3.3 Controlled Heating Process
Temperature-controlled reflow ovens or infrared heaters are used to precisely control soldering temperatures, ensuring optimal joint formation.
4. BGA Assembly Process Details
4.1 Pre-Processing
- Baking PCB and BGA: Heat at 80–90°C for 10–20 hours to remove moisture
- ESD Protection: Use anti-static gloves or wrist straps during all handling
4.2 Residual Solder Removal
- Apply a small amount of flux on the BGA surface
- Use solder wick and soldering iron to absorb excess solder
- Clean surface with industrial alcohol using a wiping motion from edge to center
- Inspect under a microscope for cleanliness and damage
- Wash with deionized water and brush thoroughly
4.3 Alignment and Reflow

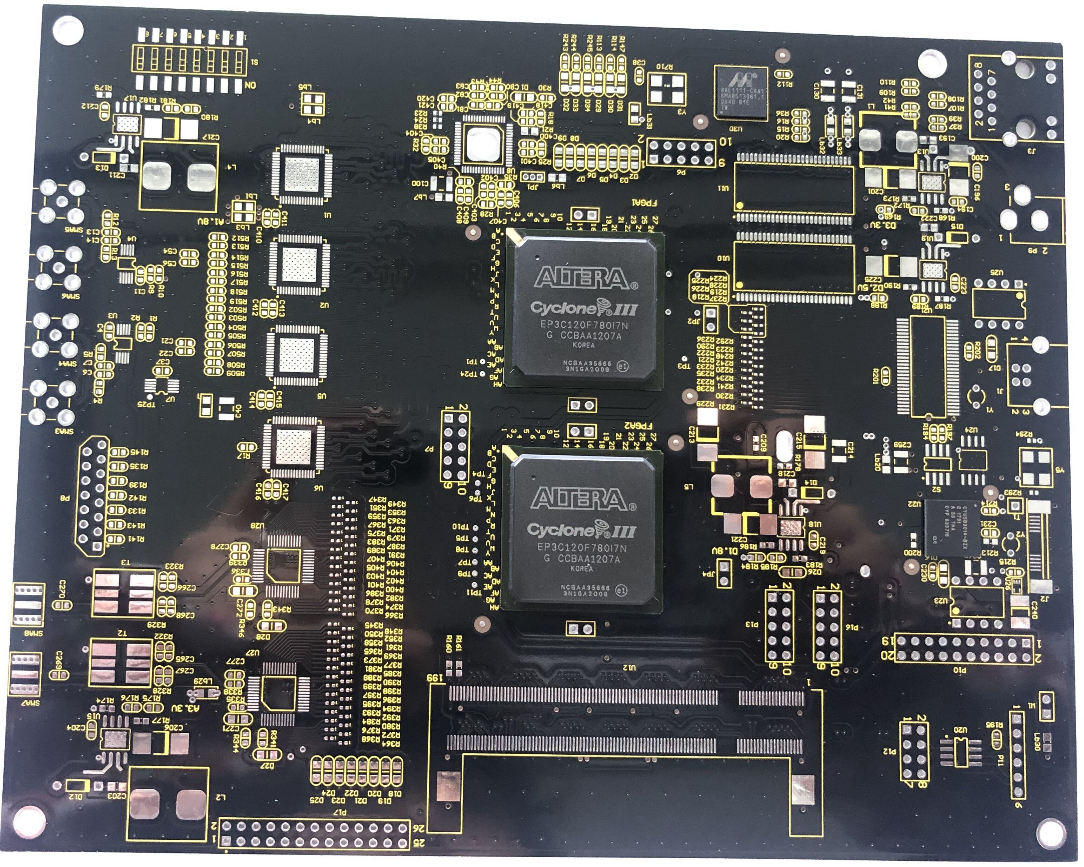

- Positioning the PCB on the Workstation: Align BGA with PCB pads using silk screen lines (manual alignment)
- Reflow Soldering: Select appropriate nozzle and temperature curve, complete the heating cycle, and allow to cool naturally
5. BGA Inspection Technologies
5.1 X-ray Imaging
X-ray machines visualize hidden solder joints as “shadows,” allowing identification of defects in non-visible areas.
5.2 Cross-Sectional X-ray Imaging
Layer-by-layer images show the shape, distribution, and quantity of solder joints, enabling detailed SPC (Statistical Process Control) analysis and defect classification.
6. BGA Repair Technology
6.1 BGA Removal and PCB Pad Cleaning
- Desolder and clean residual solder using wick and flat tip
- Avoid damaging solder pads and solder mask
6.2 Re-Application of Solder Paste
- Use small stencils for printing paste depending on ball pitch and size
- For CSPs under 0.4mm pitch, skip printing and apply flux directly to pads
6.3 Moisture Treatment
- Pre-bake returned BGA components to remove absorbed moisture
6.4 Mounting and Reflowing BGA
- Use vacuum nozzle to align and place BGA onto the PCB
- Perform reflow soldering with appropriate profile (usually 15°C higher than standard SMD)
BGA packaging technology has undoubtedly become a standard for advanced PCB designs. Despite challenges in inspection and repair, its advantages in performance, miniaturization, and integration make it the preferred choice for modern electronics. Understanding the technical nuances and handling steps is crucial for maintaining quality and optimizing costs throughout the manufacturing process.
