In the realm of PCB assembly (PCBA), the importance of wire soldering is often underestimated. However, when it comes to custom electronic projects, particularly those involving complex assemblies or customer-specified configurations, understanding how to properly select, prepare, and solder wires can significantly influence the reliability and longevity of the product.
This article provides a comprehensive overview of best practices for soldering wires in PCB assembly, tailored for engineers, PCBA manufacturers, and procurement professionals. From understanding wire specifications to soldering techniques and quality assurance, we delve into everything you need to know.
1. Understanding the Importance of Wire Selection
1.1 Customer-Specific Wire Requirements
In many PCBA projects, wires are not standard off-the-shelf components. Instead, they must meet precise customer specifications including:
- Length
- Color code
- Diameter (AWG)
- Receptacle housing type
- Terminal type (e.g., coil terminal)
- Presence of UL certification marking
- Cable tie usage
Failure to comply with any of these parameters can lead to quality issues or customer rejection.
1.2 Importance of UL Certification
UL (Underwriters Laboratories) certification is a globally recognized standard for product safety, particularly in wire and cable manufacturing. It ensures:
- Fire resistance
- Shock protection
- Compliance with electrical performance standards
More than 1,500 wire manufacturers in China alone have obtained UL certification, underscoring its importance in both domestic and international markets. For European, American, Japanese, and large domestic clients, UL certification is often mandatory.
2. Decoding Wire Gauge: What is AWG?
2.1 American Wire Gauge (AWG) Explained
AWG, or American Wire Gauge, is a standard system used to measure wire diameters. Here’s how it works:
- Higher AWG number = Thinner wire
- Lower AWG number = Thicker wire
For example, a 24AWG wire is thinner than a 20AWG wire. Thicker wires have better current-carrying capacity and mechanical strength but are more expensive and harder to install.
2.2 Cross-Sectional Area vs. Diameter
AWG values also correlate to cross-sectional areas, which affect the electrical resistance and current-carrying capacity. When designing or sourcing wires, it’s crucial to strike a balance between diameter, cost, and performance.
3. Components That Go With Wire: Receptacle Housings and Terminals
3.1 What is a Receptacle Housing?
Receptacle housings are electro-mechanical components that:
- Join electrical terminations
- Facilitate connections between wires and devices
- Come in male (plug) and female (jack) configurations
They may serve temporary, semi-permanent, or permanent connection purposes. Compatibility between connectors is crucial and sometimes requires adapters to bridge dissimilar types.
3.2 Common Applications
- Power transmission
- Signal integrity
- Control systems
Connector selection must align with both functional requirements and customer specifications.
4. Preparing Wires for PCB Soldering
4.1 Wire Stripping
Proper wire stripping is the foundation of a reliable solder joint. Here’s how:
- Use stripping pliers, not knives or scissors
- Strip 2–3mm of insulation
- Twist the exposed strands to avoid fraying
Avoid damaging the conductor during stripping, as this weakens the joint.
4.2 Pre-Tinning the Wire
Before soldering:
- Apply solder to the stripped end (pre-tinning)
- Use rosin-core solder for better adhesion
- Clean oxidation and dirt from the wire and PCB pad
Pre-tinning simplifies the final soldering process and ensures better connectivity.

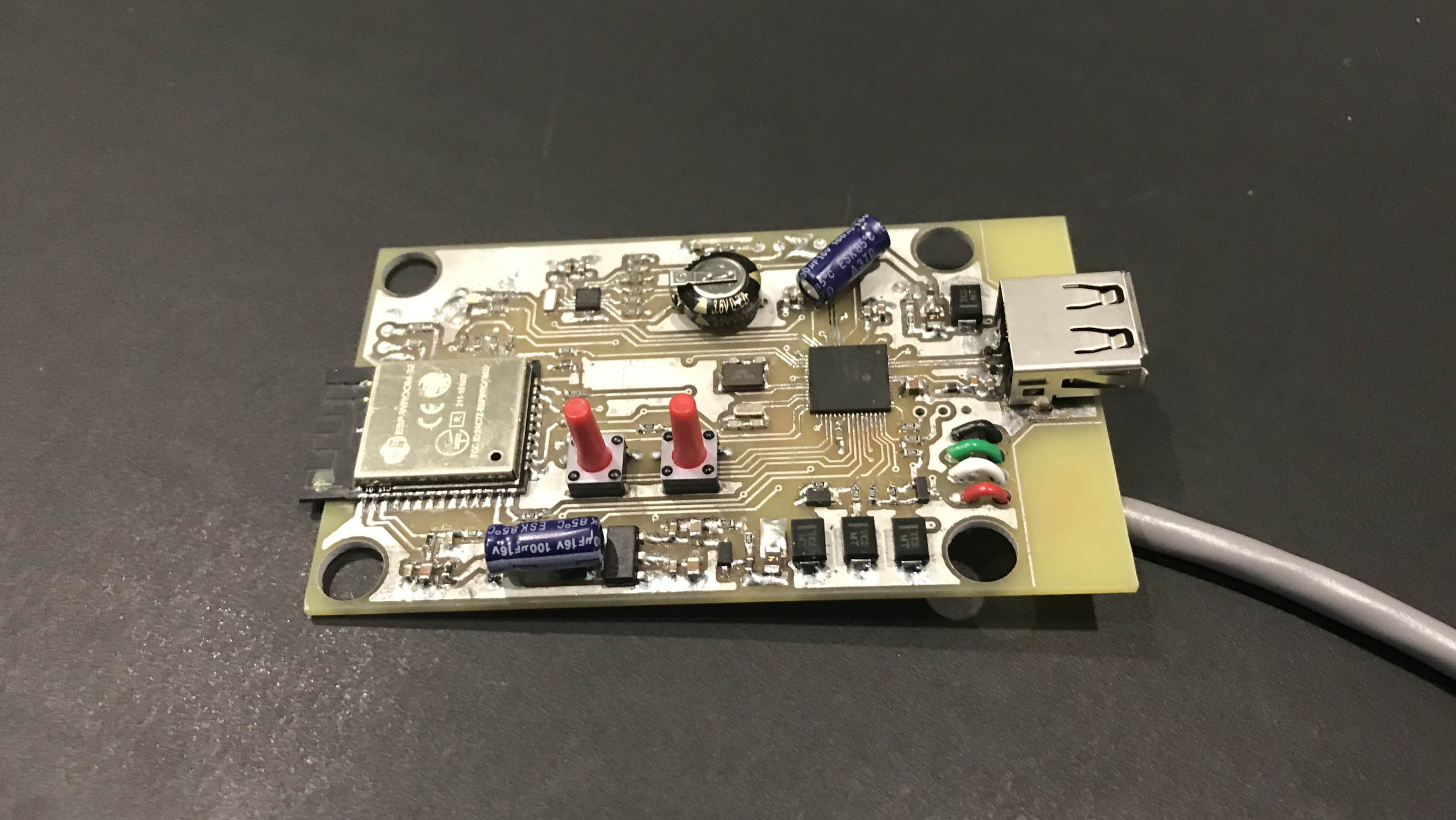

5. Soldering the Wire Into the PCB
5.1 Required Tools
- Electric soldering iron (temperature-controlled preferred)
- Rosin-core solder wire
- Solder paste (rosin flux)
- Fine sandpaper for surface prep
5.2 Step-by-Step Process
- Clean the copper pad with sandpaper
- Apply flux to both wire and PCB pad
- Insert the wire through the hole or place on the pad
- Solder by heating both the wire and pad, allowing solder to flow naturally
- Inspect for a smooth, shiny, and secure joint
Avoid cold solder joints, which appear dull or grainy and indicate poor electrical contact.
6. Final Touches: Cable Ties and Strain Relief
6.1 Why Use Cable Ties?
Cable ties ensure:
- Mechanical stability
- Neat cable management
- Reduced strain on solder joints
6.2 Types of Cable Ties
- Nylon (common for indoor use)
- Stainless steel (for high-temperature or corrosive environments)
- UV-resistant and releasable types available
Choosing the right cable tie depends on application and environment.
7. Quality Assurance and Case Studies
7.1 Common QA Checkpoints
- Wire length, color, and diameter match specs
- Correct connector and terminal types used
- UL mark present (if required)
- Strip length accurate
- Solid solder joints with no bridging or cold joints
7.2 Case Examples
We have completed numerous projects for clients in the USA and Finland requiring custom wire assemblies. These projects included:
- Multicolored 24AWG UL-certified wires
- Housing with JST and Molex connectors
- Precision soldering with ±0.5mm strip length tolerance
- Cable bundling with UV-resistant nylon ties
Each project required strict adherence to the customer’s wire specification document. While the process is straightforward, it demands attention to detail and consistent inspection.
Soldering wires for PCB assembly may seem like a minor task, but its impact on product quality and functionality is significant. By understanding customer requirements, selecting the right components, and following proven soldering practices, manufacturers can ensure high-quality, reliable PCBA builds.
Whether you are a PCB design engineer, a component sourcing specialist, or an assembly technician, mastering the nuances of wire preparation and soldering will elevate your manufacturing standards and satisfy the most demanding clients.
