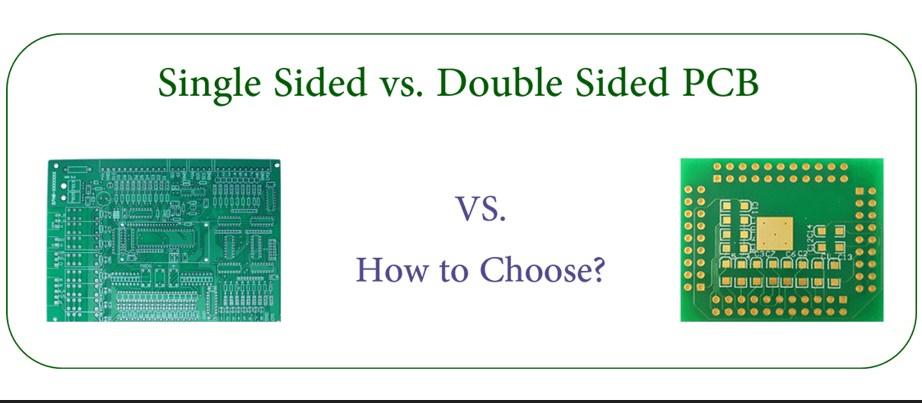

What Are the Differences Between Single-Sided and Double-Sided PCBs?

Printed circuit boards (PCBs) are the core components of modern electronic devices. Whether it’s a smartphone, laptop, or television, PCBs play a crucial role. The design and structure of PCBs vary widely, with single-sided PCBs and double-sided PCBs being the most common types. Each has its own advantages and suitable applications. Single-sided PCBs, known for their simple manufacturing process and low cost, are often used in simple electronic devices such as calculators and appliance control panels. On the other hand, double-sided PCBs can achieve higher circuit density and more complex circuit designs, making them widely used in complex electronic devices such as computer motherboards and mobile phones. Next, let’s delve into the characteristics and advantages of single-sided and double-sided PCBs.

Single-Sided PCBSingle-sided PCB

A single-sided PCB, also known as a single-layer PCB, is the most basic type of PCB. As the name suggests, it has only one layer of conductive material, typically copper. All electronic components are mounted on one side, and the circuit is etched on the same side. The process of making a single-sided PCB is relatively simple. First, a substrate (usually fiberglass or phenolic resin) is coated with a layer of copper. Next, the desired circuit pattern is etched onto the copper layer using an etching process. Holes are then drilled into the board to mount electronic components. Finally, the components are soldered onto the copper traces to complete the circuit.

The process of creating a single-sided PCB involves the following steps:

  1. Substrate Preparation: Choosing the appropriate substrate material, such as fiberglass or phenolic resin.
  2. Copper Coating: Applying a layer of copper foil onto the substrate surface.
  3. Circuit Pattern Etching: Using photolithography and etching techniques to form the circuit pattern on the copper layer.
  4. Drilling: Drilling holes in the PCB where components will be mounted.
  5. Component Soldering: Soldering the components onto the circuit pattern, completing the electrical connections.

Single-sided PCBs are widely used in simple electronic devices such as calculators, sensors, and home appliance control boards. These devices typically have low circuit complexity, which single-sided PCBs can fully accommodate.

Double-Sided PCBDouble-Sided PCB

Double-sided PCBs are more complex than single-sided ones. They have copper layers on both sides of the substrate and can have electronic components mounted on both sides. Circuits can connect between the top and bottom layers through vias (holes that are plated through with conductive material). This design allows for more complex and compact circuits.

The process of creating a double-sided PCB is more intricate:

  1. Substrate Preparation: Similar to single-sided PCBs, selecting the appropriate substrate material.
  2. Double-Sided Copper Coating: Applying copper foil to both sides of the substrate.
  3. Circuit Pattern Etching: Forming circuit patterns on both copper layers.
  4. Drilling and Via Processing: Drilling holes for component mounting and processing vias to create electrical connections between the top and bottom layers.
  5. Component Soldering: Mounting and soldering components on both sides, allowing for more complex circuit designs.

Double-sided PCBs are commonly used in more complex electronic devices, such as computer motherboards, mobile phones, and industrial control systems. These devices require more connections and complex circuit designs, which double-sided PCBs can provide with sufficient flexibility and performance.

Advantages of Single-Sided PCB

One of the main reasons single-sided PCBs are widely used is their low cost. Since single-sided PCBs only require one side to be patterned, the materials and processes involved are much simpler than those for double-sided PCBs. Producing single-sided PCBs requires only one layer of copper and a single-layer substrate material, significantly reducing material consumption and costs. Additionally, the manufacturing process for single-sided PCBs is straightforward, as it doesn’t involve handling double-layer circuitry and vias, making the production process more efficient. The simplicity of the manufacturing process allows for faster production speeds, which is especially advantageous for mass production, further reducing costs. Therefore, single-sided PCBs are particularly suitable for cost-sensitive applications, such as consumer electronics, small household appliances, and simple electronic toys.

Easy to Test and Maintain

Single-sided PCBs are easy to test and maintain due to their simple structure. This advantage makes them ideal for applications that require frequent testing and repairs. Since single-sided PCBs have only one layer of circuitry, engineers can easily identify and locate faults in the circuit, as the circuit paths are clear and straightforward without the complexity of multilayer circuits. For maintenance personnel, all components and circuits are on the same side, making repairs simpler and more direct. Whether soldering new components or replacing faulty ones, the process is quick and straightforward. Additionally, the equipment and tools needed to test single-sided PCBs are relatively simple. Basic voltage meters and oscilloscopes are sufficient for most testing needs, further reducing maintenance and testing costs and difficulty.

High Reliability

In certain aspects, single-sided PCBs exhibit high reliability. With only one layer of circuitry, the risk of short circuits is reduced. In multilayer PCBs, improper alignment and routing can lead to short circuits, whereas single-sided PCBs avoid this complexity. Moreover, the absence of vias means there is no risk of vias failing and causing circuit disconnections or instability. This ensures that single-sided PCBs remain stable and reliable during long-term use. Additionally, the simple structure of single-sided PCBs makes them perform better in certain environments, such as high humidity and high vibration conditions, where single-sided PCBs can maintain their performance stability. These characteristics make single-sided PCBs a reliable choice for certain specific applications.

Advantages of Double-Sided PCB

A significant advantage of double-sided PCBs is their ability to achieve higher circuit density. These boards allow for routing and mounting components on both sides, greatly increasing the available space and enabling more electronic components and complex circuit layouts. This is particularly crucial for modern electronic devices that require compact designs, such as smartphones, tablets, and small wearable devices. In these devices, space is extremely limited, and double-sided PCBs can provide the necessary circuit density to support multiple functions and high-performance requirements. By utilizing both sides of the board, engineers can more flexibly arrange the circuits, enhancing the compactness and efficiency of the design.

Greater Performance

Double-sided PCBs significantly outperform single-sided PCBs in terms of performance, as they can accommodate more components and more complex circuit designs. They can handle higher current and faster signal transmission speeds, making them excellent for high-performance electronic devices. For example, in computer motherboards and graphics cards, which require high data transfer rates and high power handling, double-sided PCBs provide the necessary electrical performance and reliability. With higher circuit density and design flexibility, double-sided PCBs can support more complex circuit functions, such as multi-core processors, multi-channel memory, and high-bandwidth communication interfaces. These performance advantages make double-sided PCBs an ideal choice for modern high-performance electronic devices.

Better Heat Dissipation

Double-sided PCBs also excel in heat dissipation management. Electronic components generate heat during operation, and effective heat dissipation is crucial to prevent components from overheating or becoming damaged. By placing components and circuits on both sides, double-sided PCBs can better distribute and manage heat. During the design process, heat-generating components can be strategically distributed on both sides of the circuit board, and the excellent thermal conductivity of copper foil can be used to enhance heat dissipation. Additionally, double-sided PCBs can include heat dissipation holes or connect to external heat sinks, further improving heat dissipation efficiency. This effective heat management ensures that devices can maintain stability and reliability during high-performance operation.

Conclusion

Choosing between single-sided and double-sided PCBs mainly depends on your application requirements. If you need a cost-effective and straightforward solution, a single-sided PCB is a good choice. However, if your project requires higher circuit density, greater performance, and more design flexibility, a double-sided PCB is undoubtedly the better option.

Regardless of the type of PCB you choose, understanding their advantages and suitable applications will help you make more informed decisions. In modern electronic design, PCBs play a crucial role, and selecting the right type can enhance product performance, optimize costs, and streamline manufacturing processes. Therefore, understanding the differences and advantages of single-sided and double-sided PCBs is essential knowledge for every electronic engineer.For more information about single-sided and double-sided, please contact us
