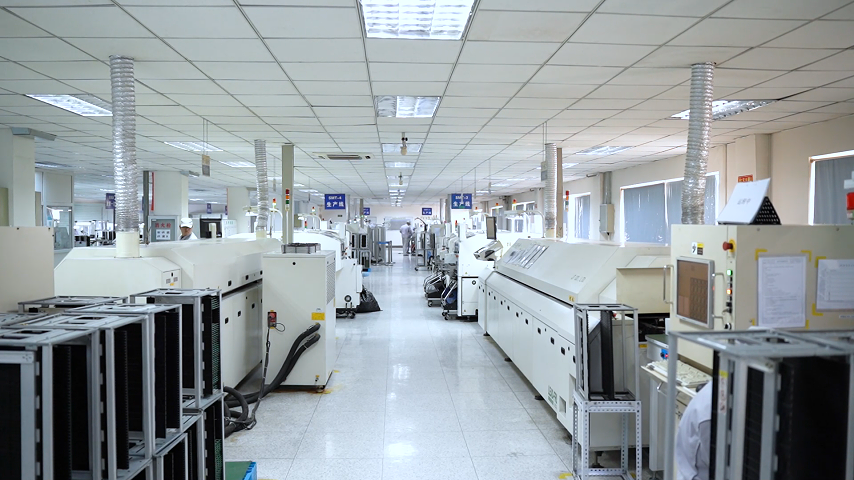

In today’s electronics manufacturing landscape, obtaining an accurate and efficient PCB Assembly (PCBA) quote is a critical step to ensure projects are delivered on time and within budget. Whether you’re a startup or an established OEM, preparing complete and standardized documentation before requesting a PCBA quote from an EMS (Electronics Manufacturing Services) provider is essential. It not only ensures quote accuracy but also significantly enhances communication efficiency and minimizes manufacturing risks. This article offers a professional and detailed overview of the documents and data you need to prepare before obtaining a PCBA quote, helping your product make a smooth transition to market.

1. Bill of Materials (BOM)

The BOM is one of the core documents for a PCBA quote. It lists every electronic component required and serves as the basis for material procurement and cost estimation. A complete BOM should include the following fields:

  • Reference Designator (Ref Des): e.g., R1, C5, U3, indicating the component’s position on the PCB.
  • Description: For example, 10kΩ ±1% 0603 resistor.
  • Manufacturer Name: e.g., Murata, TI, STMicroelectronics.
  • Manufacturer Part Number (MPN): The official part number, such as GRM188R71H104KA93D.
  • Package Type: e.g., SOT-23, QFN-32, 0603.
  • Quantity: Number of components used per board.
  • Remarks: Notes such as alternative parts or special sourcing requirements.

Note: Avoid providing only distributor part numbers (e.g., Digi-Key or LCSC). Always include the manufacturer’s part number to prevent ambiguity.

2. Gerber Files (PCB Fabrication Data)

Gerber files are standard format files used for PCB manufacturing. EMS providers rely on these files to analyze assembly complexity and determine process requirements. Required layers include:

  • Top/Bottom Copper
  • Top/Bottom Solder Mask
  • Top/Bottom Silkscreen
  • Drill File
  • Board Outline

Suggestion: Use the RS-274X format and ensure files are complete, clearly named, and free from errors or omissions.

3. Pick and Place File (Centroid File)

This file describes the location and orientation of each component, essential for SMT machine programming. It should include:

  • Reference Designator
  • X/Y Coordinates (typically in mm)
  • Rotation (usually counter-clockwise)
  • Layer (Top/Bottom)

Note: The coordinate origin should match the Gerber files to avoid placement errors.

4. Assembly Drawings

Assembly drawings help with manual verification of component placement, especially in double-sided, mixed-package, or BGA designs. Recommended content:

  • Component outlines and labels
  • Polarity indicators (e.g., for diodes, LEDs, electrolytic capacitors)
  • Part numbers and package types
  • Top and Bottom views with clear layers

Provide in PDF, DXF, or PNG format for easy readability.

5. Assembly Instructions / Process Requirements

In addition to standard files, provide clear documentation of process requirements to ensure the assembly meets product specifications and compliance standards. Include:

  • Lead-free soldering requirements (RoHS compliance)
  • BGA or high-precision parts requiring X-Ray inspection
  • Consigned parts (customer-supplied materials)
  • ICT (In-Circuit Testing) or FCT (Functional Testing) requirements
  • Cleaning or conformal coating requirements

6. Assembly Layer from PCB Design File

Some PCB design software (e.g., Altium Designer, Eagle, KiCAD) supports exporting the Assembly Layer, including pad types, pin numbers, and alignment markers. While not mandatory, this layer is valuable for complex assemblies.

7. Sample or Reference Board (If Available)

For first-time collaborations or assemblies with special requirements, providing a reference board or sample video can greatly aid the EMS provider in understanding quality standards and specific details. Though optional, it helps improve consistency and first-pass yield.

8. Quantity and Delivery Timeline

Pricing varies with volume and timeline expectations. Be specific about:

  • Assembly quantity (Prototype, Small Batch, Mass Production)
  • Required first delivery date
  • Whether batch deliveries are needed

9. Certification and Quality Standards

Industries like automotive, medical, and aerospace require higher PCBA standards. Clarify if your product needs:

  • IPC-A-610 Class II/III
  • ISO 13485 / IATF 16949 compliance
  • ESD protection requirements during handling

This helps the EMS provider determine whether they have the capability and certification to meet your needs.

10. Additional Recommendations

  • Version Control: All files should include revision numbers to avoid confusion during updates.
  • Standardized Format and Indexing: Consistent naming conventions across departments improve efficiency.
  • Clear Contact Information: Provide both technical and procurement contacts for streamlined communication.

Professional Documentation Enables Efficient and Accurate Quoting

In custom PCBA manufacturing, the completeness and professionalism of your documentation not only affect quoting speed but directly impact product quality, lead time, and cost control. By systematically preparing essential documents like the BOM, Gerber files, pick-and-place files, and assembly drawings, EMS providers can accurately assess your requirements and deliver competitive quotes.

If you’re preparing for PCBA prototyping or mass production, be sure to follow the checklist provided in this article. Doing so enhances your technical credibility and fosters effective, trustworthy cooperation with your manufacturing partner.
