What Factory Standard Tests Are Included in Custom Circuit Board Assembly?

In today’s highly complex electronic manufacturing environment, a compact custom circuit board often integrates hundreds of micro-components and dense physical solder joints. The entire processing flow is intricate. It is easily affected by multiple manufacturing variables. Without systematic factory verification, the electrical yield of the final product faces great uncertainty. Understanding the basic assembly circuit board process helps procurement and development teams avoid process defects during the early stages of production transfer.

Factories establish standardized inspection and testing procedures to ensure that the hardware delivered to users achieves high plug-and-play stability. By detecting hidden manufacturing errors early, factories significantly improve the ex-factory yield rate. Early detection also reduces sunken costs caused by later repairs. This is crucial for projects moving from prototype design to mass production.

1. Basic Visual Inspection: The First Optical Defense Line on the Production Line

Factories intercept most visible surface geometric defects efficiently through high-resolution visual comparison.

1.1 Manual Visual Process Review and Structural Verification

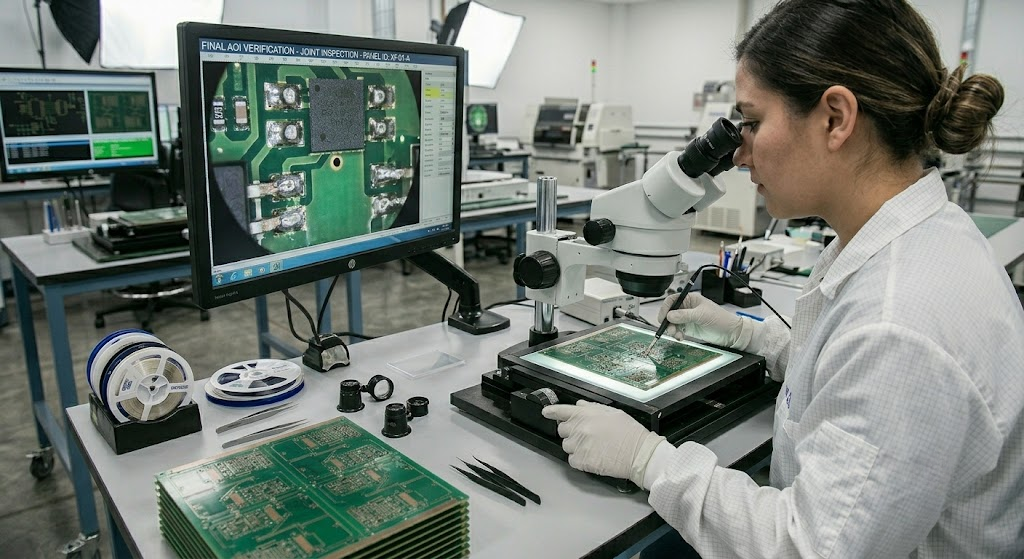

Technicians use high-magnification magnifiers or the naked eye to manually check the appearance of welded circuit boards. This process quickly identifies serious assembly flaws, such as incorrect component orientation, missing components, and surface trace stains. This primary inspection method does not require complicated mold-opening steps. The overall equipment setup is simple. It offers good cost convenience for small-batch simple designs. However, it relies heavily on the experience and mental focus of operators. Missed inspections easily occur in mass production. Technicians also cannot evaluate hidden solder joints under component pins.

1.2 Real-Time Online Coverage of Automated Optical Inspection (AOI)

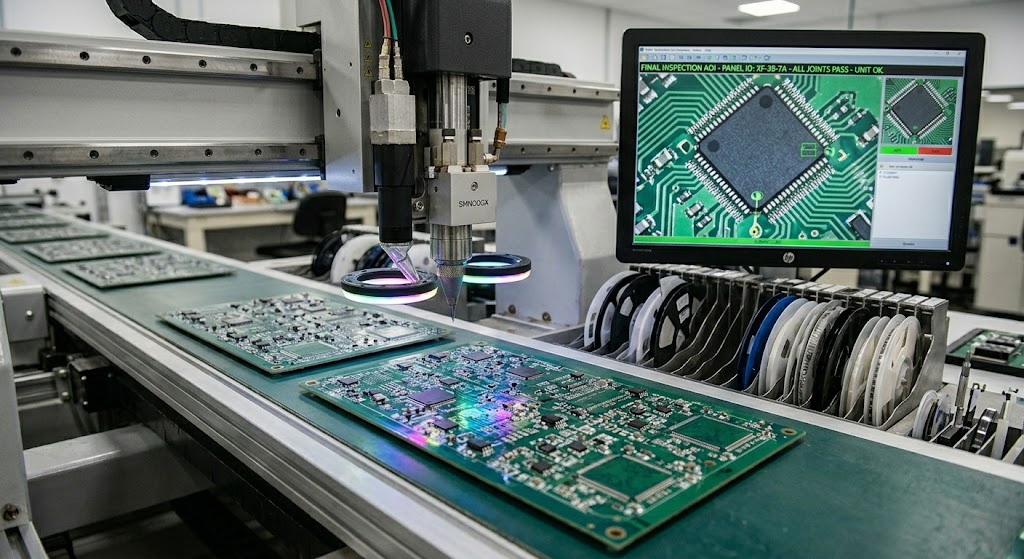

The machine captures high-speed images of boards just passing through the reflow oven using precisely configured 2D or 3D high-resolution cameras. Subsequently, the system compares them with standard reference databases or ideal design templates in milliseconds. Automated optical inspection is integrated directly at the back end of the surface mount line. It intercepts mainstream surface defects like false soldering and insufficient solder with high accuracy and objectivity. Even so, as a typical passive optical test, it remains limited to exposed surfaces directly illuminated by light. It cannot detect internal voids at the bottom of devices.

2. Electrical Continuity and Internal Micro-Nondestructive Testing

When surface vision cannot provide sufficient proof of integrity, technicians must use electrical probes or penetrating rays to view the internal connectivity of the circuit board.

2.1 High-Flexibility Hardware Path Verification of Flying Probe Testing (FPT)

Flying probe test equipment uses multiple electrical probes that move independently at high speeds. These probes directly touch uncovered vias, test points, or component pins. Therefore, by sending trace currents through designated paths, the device directly measures the true physical values of passive components. Because all movement trajectories are driven by software programs, flying probe testing eliminates the need for expensive hard fixtures. This high level of customization makes it suitable for prototype stages and small-to-medium-scale dense board inspections. Precise custom assembly circuit board manufacturing usually prefers this flexible electrical verification solution.

2.2 Micro-Void Penetration of Automated X-Ray Inspection (AXI)

Equipment generates micro-internal perspective projections of electronic component solder joints using the strong material penetration characteristics of X-rays. This method is commonly used for non-destructive testing of hidden pads under Ball Grid Array (BGA) packages. It identifies hidden voids inside solder and subtle internal open circuits, making it the gold standard for quality control of complex electronic components. In view of this, this equipment requires high professional skills from operators. Its overall procurement and single-run costs are more expensive than conventional optical equipment.

2.3 Large-Scale Automated Electrical Interception of In-Circuit Testing (ICT)

The device contacts all reserved test points on the bottom of the circuit board at once using custom “bed of nails” test fixtures with dense metal spring pins. At this time, automated electrical parameters are measured simultaneously within seconds to check for open circuits, short circuits, and diode orientation. In-circuit testing shows fast single-piece test speeds and a high fault coverage rate exceeding ninety percent for mature consumer electronics orders with huge shipment volumes. However, expensive bed-of-nails fixtures are dedicated assets. If any minor version changes occur in subsequent hardware circuits, the entire fixture must be scrapped or rebuilt.

3. Extreme Environment Simulation and Terminal Function Closed-Loop Testing

Simulating the real physical environment during the final factory stage is key to verifying the long-term operating life of the hardware.

3.1 High-Stress Burn-In Testing and Elimination of Potential Early Failures

Technicians place assembled circuit boards for a long time in harsh environments that exceed conventional rated working conditions. For example, they apply physical stresses like high-temperature alternating cycles, limit overload voltages, or continuous high-frequency commutating currents to force early failures in the product life cycle. This experiment eliminates hidden material defects with long incubation periods, ensuring long-term reliability in the field. In order to avoid irreversible fatigue to the substrate from high stress, factories usually apply this process only to special projects with zero tolerance for failure, such as defense aerospace, rail transit, and high-end wearable medical devices.

3.2 Functional Testing (FCT) Closed-Loop Verification of Final Running Status

Functional testing serves as the ultimate quality check at the end of the entire electronic manufacturing process. Because this test sets up a simulated operating environment, connects standard working voltage, and loads proprietary system software, it verifies directly whether input and output signals match design expectations. This test simulates the real operation scenarios of end users, and its test strategy features high customization flexibility. In mass manufacturing and high-specification prototyping, full 100% functional testing is increasingly recognized as an indispensable standard configuration to ensure every board leaving the workshop works normally.

Conclusion: Customized Testing Strategy Combination Guides Hardware Products to Market Safely

In actual factory operations, no single testing mode achieves a perfect defect interception effect alone. Excellent manufacturing services customize reasonable composite inspection matrices based on the product life cycle stage and development budget. Choosing our full-process circuit board processing and diversified assembly testing services solves the problems of multi-party docking and blurred quality boundaries faced by global hardware teams during new product prototyping and mass production transfer.

Now you can upload engineering drawings and process requirements directly to our system. The experienced process engineering team will provide a comprehensive Design for Manufacturability (DFM) evaluation and a cost-effective one-stop factory test quote quickly.
