PCB Copper Plating Quality Challenges in pcba manufacturing: A Full-Process Control Plan for Equipment, Parameters, and Materials

In pcba manufacturing projects, PCB copper plating affects many critical functions. It affects hole-to-hole conduction, current capacity, heat dissipation, and long-term reliability. Many copper-plating problems do not come from the plating line alone. The board material, hole structure, pretreatment, bath chemistry, process parameters, and inspection results all influence the final outcome.

Therefore, PCB copper plating cannot be judged by surface color alone. Engineers must also check hole-wall continuity. They must confirm copper-thickness distribution as well. More importantly, every result should match the actual board and customer requirements. This article explains a practical control plan for equipment, parameters, materials, inspection, and traceability.

1. Define the PCB Copper Plating Quality Targets First

Unclear quality targets make shop-floor decisions difficult. The engineering team should answer one question first. What plating result can meet the product’s functional and reliability requirements? Once the target is clear, the equipment and process parameters have a clear direction.

1.1 Distinguish Copper-Clad Laminate from PCB Metallization

Copper foil in a copper-clad laminate forms part of the base material structure. Copper metallization during PCB fabrication mainly involves hole-wall metallization and later plating. Both involve copper, but they represent different quality objects.

Hole-wall metallization must create a continuous conductive path on the insulating material. Electroless copper usually provides the initial conductive layer. Electrolytic copper then increases copper thickness on the board surface and hole walls. Later steps may include pattern plating and surface finishing.

Project documents should define the requirements for base-material copper foil, hole copper, and surface copper separately. This approach reduces confusion during acceptance. Procurement, engineering, and quality teams can also use the same definitions.

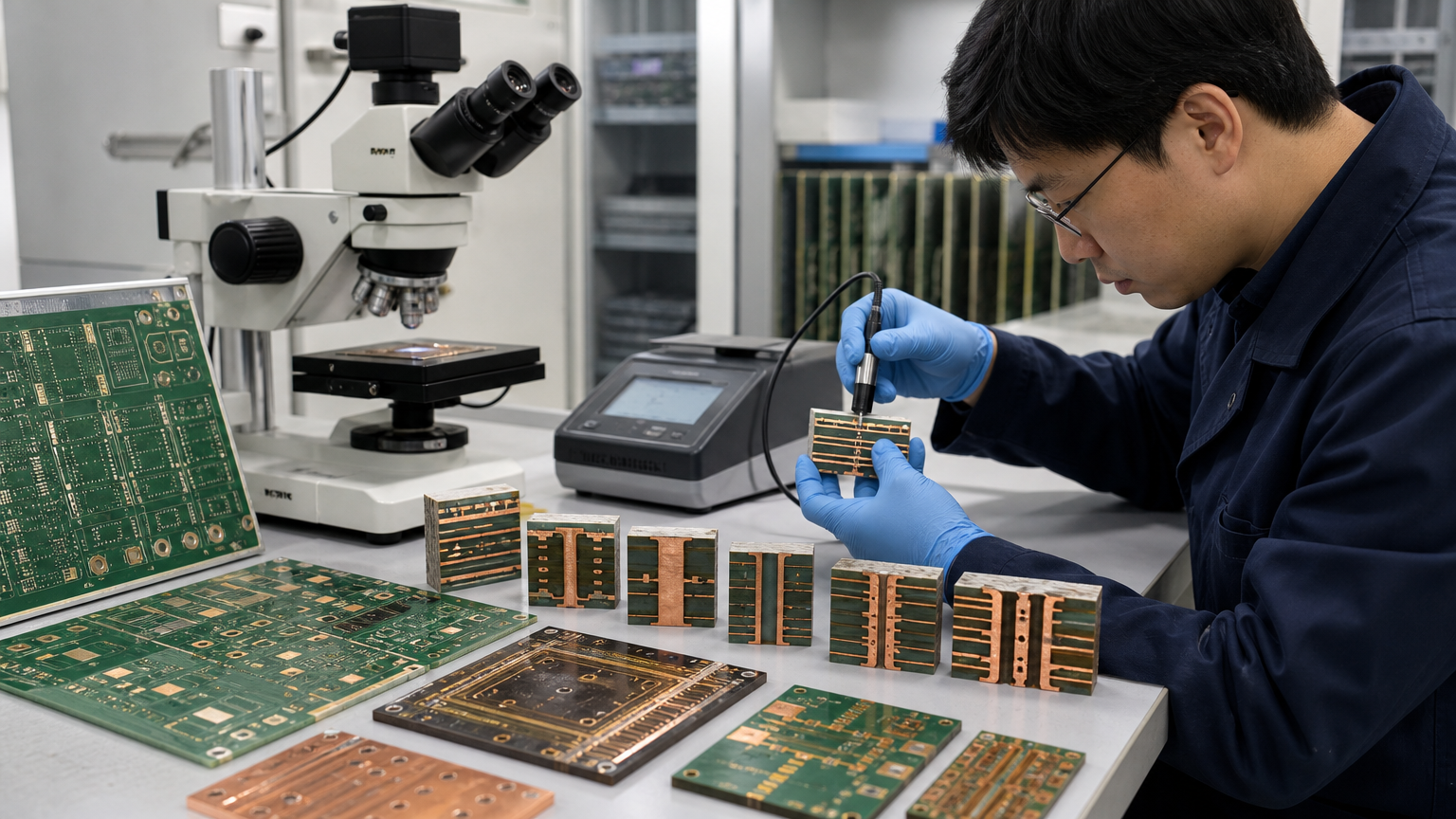

1.2 Convert Product Structure into Plating Acceptance Points

Board thickness and hole size affect metallization difficulty. Smaller holes make solution exchange more difficult. Thicker boards require more validation of hole-wall coverage. High-aspect-ratio through-holes usually require stronger through-hole distribution.

Blind vias, microvias, and filled vias also create different plating requirements. The project should check the hole entrance, center, bottom, and board surface separately. Large copper areas and dense circuit areas may also produce different current distributions.

Therefore, an acceptance document should not only state that copper thickness must pass. It should also define hole coverage, copper-layer continuity, appearance, continuity, and thermal-stress requirements. Specific criteria should follow customer documents and applicable standards.

1.3 Identify Quality Challenges through Failure Modes

Hole-wall voids may cause intermittent conduction. Thin hole copper may reduce thermal-cycle reliability. Uneven copper thickness can affect current capacity and later processing. Rough deposits, burning, and nodules may increase appearance and etching risks.

Blisters, cracks, and poor inner-layer connections also require attention. Some defects begin during electroless copper. Others relate to electrolytic copper parameters, panel racking, or bath condition.

For this reason, failure analysis should not blame current variation alone. Engineers should review incoming materials, pretreatment, equipment, bath chemistry, parameters, and inspection records together. This method helps identify the actual influencing factors.

2. Control Input Risks through Materials, Hole Structure, and Pretreatment

Copper-plating quality often starts with drilling and pretreatment. Residue or contamination on the hole wall may interrupt later copper deposition. Poor pretreatment can also reduce bonding between the copper layer and the base material.

2.1 Assess Metallization Difficulty by Material and Hole Structure

FR-4, high-Tg, and halogen-free materials may have different processing characteristics. Thick boards, small holes, and high-aspect-ratio holes can increase chemical-processing difficulty. Blind vias and microvias require separate validation methods.

Before production, engineers should confirm board thickness, hole size, layer count, and hole structure. They should also confirm the material supplier, laminate grade, and stack-up information. Terms such as multilayer board or FR-4 cannot define process difficulty by themselves.

For complex structures, the supplier should complete sample validation first. The sample should resemble the production board as closely as possible. This approach produces a process window that better represents production conditions.

2.2 Control Drilling, Desmear, and Hole-Wall Cleanliness

Drilling may create burrs, resin residue, and exposed glass fibers. Rough or contaminated hole walls can affect later activation and electroless copper. Unstable desmear results may create local non-conduction inside the holes.

Pretreatment may include cleaning, swelling, desmear, micro-etching, and rinsing. Different materials require different process logic. When the chemical system changes, pretreatment conditions also require new validation.

The production team should monitor hole-wall appearance and hole-size condition. Microsection analysis can inspect the hole wall when needed. Engineers should also record abnormal lots and trace the drilling and pretreatment status.

2.3 Confirm Activation and Surface Condition before Electroless Copper

Electroless copper requires stable surface activity. Insufficient activation coverage may leave parts of the hole wall without a continuous copper layer. Inadequate cleaning may also cause poor adhesion and electroless copper defects.

Rinsing also requires control. Carryover from one chemical bath can change the next bath’s balance. Residual water and contaminants may affect later deposition as well.

Therefore, engineers should manage cleaning, activation, electroless copper, and rinsing as one connected sequence. Each step needs a condition check. A final visual inspection cannot replace this process control.

2.4 Mark High-Risk Areas in the Engineering Data

Gerber files can help identify circuits and copper areas. Drill files show hole sizes and locations. Stack-up data adds board thickness, materials, and layer relationships. Customer copper-thickness requirements define the direction of later process evaluation.

Engineers should also mark high-aspect-ratio holes, small holes, blind vias, and large copper areas. Dense circuit areas should enter the risk list as well. Data review can support test-panel design, panel racking, and inspection-point planning.

However, engineering data cannot replace actual validation. The final process still needs confirmation through equipment capability and sample results.

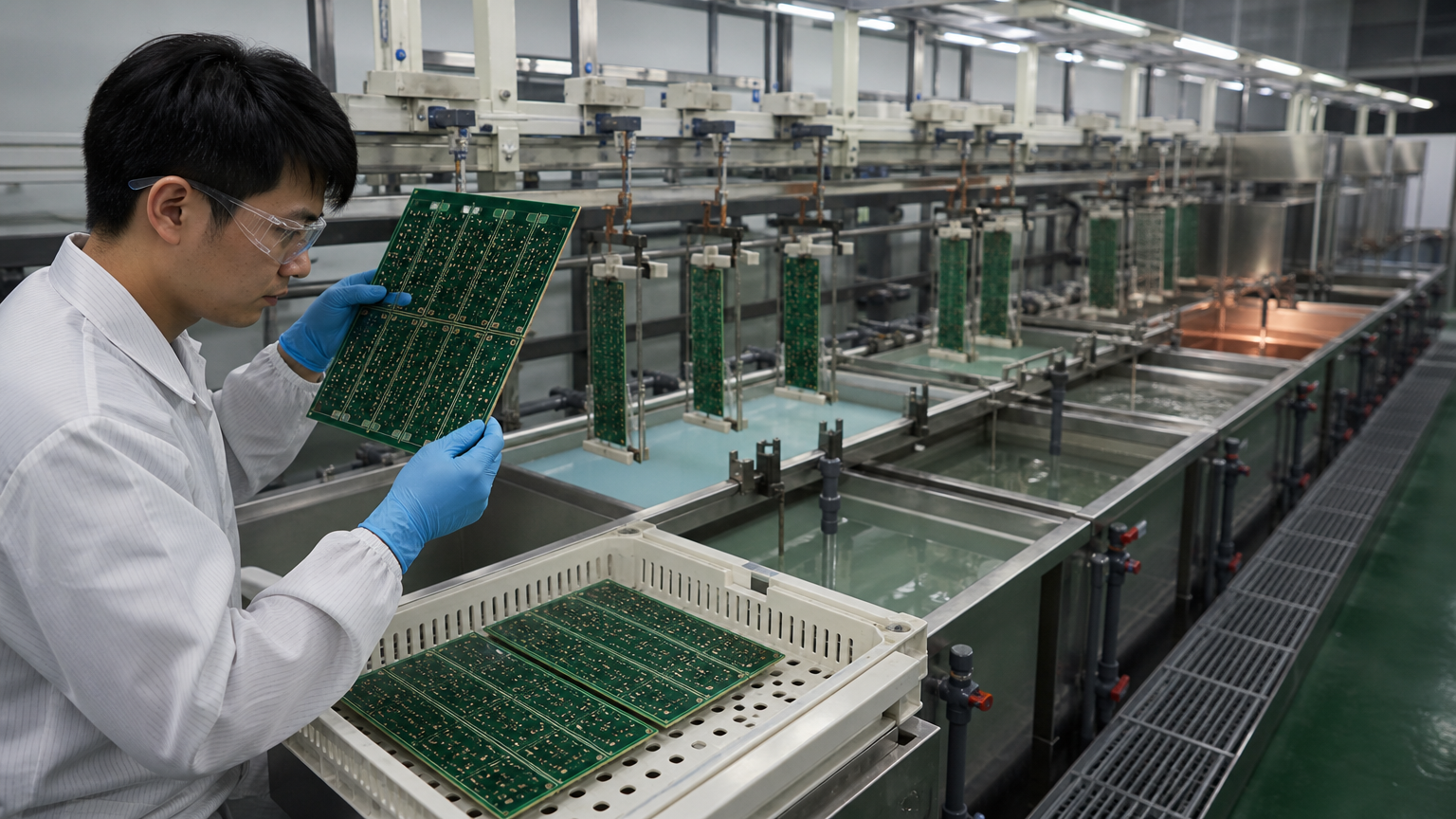

3. Stabilize Current, Fluid Flow, and Chemistry through Equipment Control

Equipment condition directly affects plating results. The rectifier controls current output. The rack affects electrical contact. Agitation and circulation affect mass transfer inside holes. Filtration helps control particles and contamination.

3.1 Check Whether the Equipment Matches the Board and Process

Equipment evaluation should cover panel size, racking method, and board-thickness range. The project should also confirm hole structure, production takt, changeover requirements, and continuous operation.

High-aspect-ratio through-holes require attention to solution exchange and current distribution. Via filling requires attention to mass transfer and deposit shape inside the hole. Heavy-copper projects also require evaluation of equipment operating range and thermal management.

Equipment selection should not rely on brand or appearance alone. Engineers should confirm that the equipment truly matches the target board and process route.

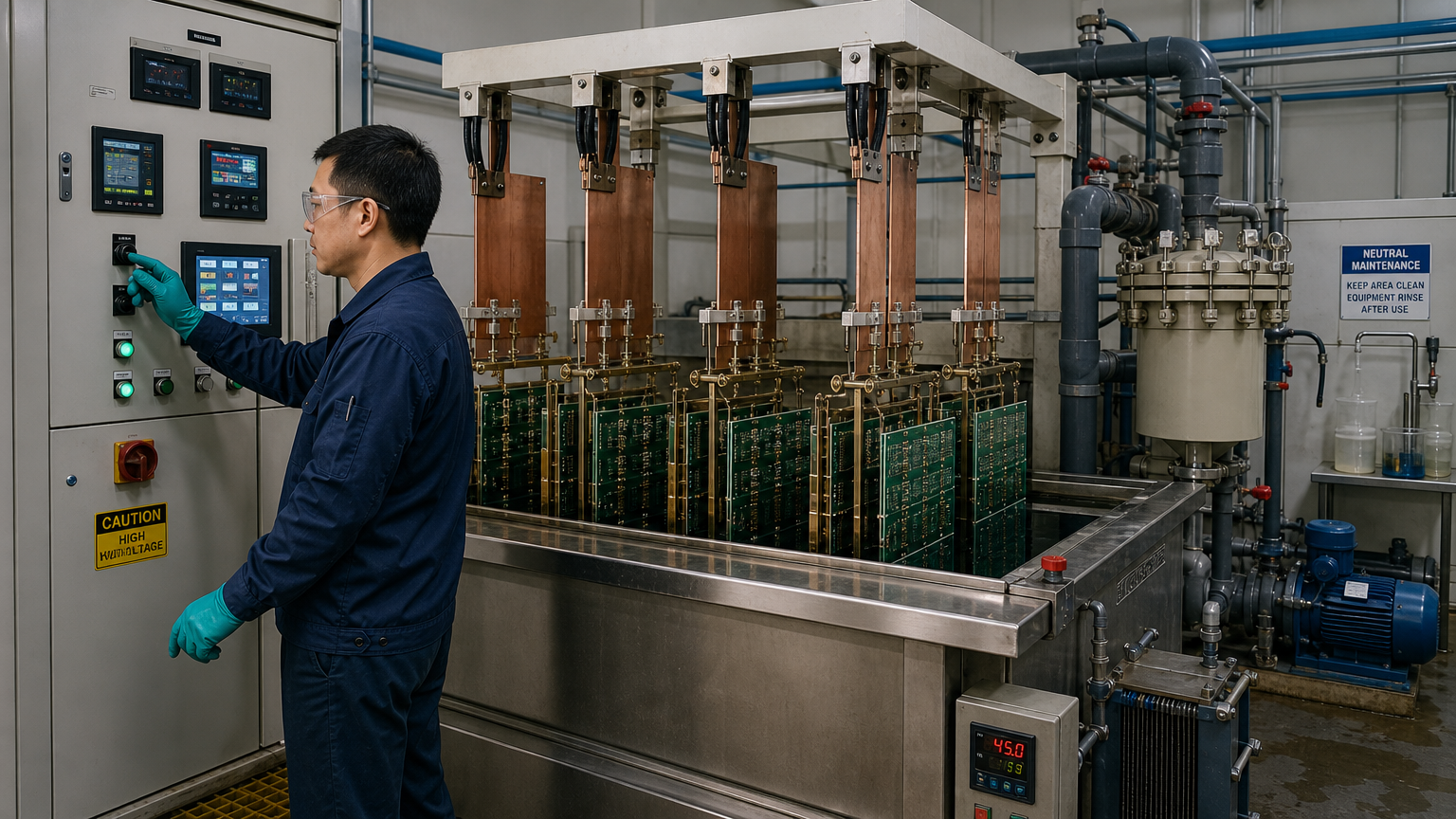

3.2 Control the Rectifier, Anodes, and Electrical Contact

An abnormal rectifier output may cause local overplating or underplating. Unstable contact at the electrical clips can also create board-level distribution differences. Oxidized or contaminated racks may affect current transfer.

Anode condition matters as well. Anode sludge, shielding, and spacing changes can alter local current distribution. Complex boards require validation together with the racking method.

The production team should record rectifier output, current changes, rack condition, and anode maintenance. The calibration interval should follow equipment documents and the internal control plan.

3.3 Control Filtration, Circulation, Agitation, and Temperature

Filtration helps control particles. Circulation improves bath exchange. Spray or air agitation affects mass transfer inside holes and additive distribution.

Temperature variation also affects deposition. Heating and cooling systems must remain stable. A normal equipment display does not prove that the board surface and hole interior receive the same fluid conditions.

Process confirmation should therefore use more than instrument readings. Engineers should also review copper-thickness distribution, hole coverage, and appearance results.

3.4 Establish Equipment Checks, Calibration, and Maintenance Records

Complete equipment checks before line start. After a changeover, confirm the racks, program, and electrical contacts again. Record filter replacement, anode maintenance, and abnormal downtime.

Link calibration results to the equipment identification. Link equipment abnormalities to the product lot and time period as well. This practice helps define the affected-board range quickly.

Complete process records support root-cause analysis better than repair work orders alone. They also support supplier audits and continuous improvement.

4. Control Electroless Copper and Electrolytic Copper with Process Parameters

Parameter control is central to the copper-plating process. However, parameters cannot be discussed separately from materials and equipment. The same current density may produce different results in different baths and on different board types.

4.1 Establish an Electroless Copper Process Window

Electroless copper requires stable pretreatment. Bath activity, temperature, treatment time, agitation, and rinsing all affect coverage. The hole wall must receive a continuous conductive base layer.

Engineers should use samples to confirm hole coverage and copper-layer continuity. Microsection analysis can show the hole-wall condition. Continuity testing can help identify local interruptions. Applicable reliability validation may also be required.

When the electroless copper process changes, the electrolytic copper parameters require a new review. The two stages cannot be managed as completely separate processes.

4.2 Control Current Distribution and Additive Balance in Electrolytic Copper

An electrolytic copper bath usually includes copper salts, acidity, chloride ions, and organic additives. Each additive has a different function. Brighteners, wetting agents, suppressors, and levelers must remain balanced.

Excess additive can change deposit appearance and structure. Rapid additive consumption can also change hole coverage. Delayed analysis increases the risk of lot variation.

Parameter adjustment should therefore combine chemical analysis, copper-thickness distribution, appearance, and hole results. Simply increasing current or extending time cannot replace complete process judgment.

4.3 Build a Test-Panel Window for High-Aspect-Ratio Holes and Blind Vias

High-aspect-ratio holes place higher demands on hole coverage. Blind vias and microvias require attention to the entrance, bottom, and fill condition. Engineers can use test panels, process coupons, or customer-representative boards for validation.

During validation, review hole copper thickness and surface copper thickness together. Also check excessive deposition at the entrance, voids, and later thermal stress. Test-panel results can help define process boundaries.

A test panel cannot fully replace production-board validation. Before mass production, confirm the actual board structure and lot performance.

4.4 Include Bath Analysis and Small-Sample Testing in Parameter Adjustment

Bath management requires analysis records. Replenishment records, contamination trends, and bath aging should also enter the process review. When necessary, small-sample or Hull Cell-type methods can support observation.

Parameter adjustment should not rely on one copper-thickness result. Engineers should also review deposit structure, appearance, hole coverage, and thermal-stress results.

An adjustment becomes more convincing when several results improve together. This approach reduces blind trial and error. It also improves production-transfer stability.

5. Manage Materials, Baths, and Lots across the Full Process

Material management is more than incoming inspection. It also includes storage, issue, replenishment, contamination, change control, and traceability. Material-condition changes can directly affect electroless and electrolytic copper results.

5.1 Confirm Material Identity, Batch, and Technical Documents

After materials arrive, verify the model, batch, and expiration date. Check the packaging, storage condition, and technical documents as well. The TDS and SDS should match the actual material.

Do not judge a material by brand name alone. Chemicals in the same category may use different formulation systems. After a material change, engineers must reassess compatibility and the process window.

The material list should include the base material, copper salts, acids, additives, activators, and cleaners. Auxiliary consumables and water quality also require attention.

5.2 Control Bath Replenishment, Analysis, and Contamination Risk

Replenishment should follow analysis results. Record the replenishment time, material, and quantity. Keep the sampling location consistent as well.

Metal impurities, organic contamination, particles, and rinse carryover may affect bath condition. When a bath becomes abnormal, engineers should identify the contamination source first. Blind replenishment may increase process variation.

Bath analysis results should also link to the product lot. This connection helps identify the real process condition when an abnormality occurs.

5.3 Treat Rinsing and Drying as Part of Material Control

Rinsing reduces chemical carryover. Water condition and overflow rate also affect cleaning performance. Insufficient rinsing may cause cross-contamination between baths.

Drying also affects later operations. Residual water on the board may affect appearance and surface stability. Rinsing and drying conditions should follow material documents and site validation.

Rinsing and drying should not be treated as minor support steps. They are part of material control.

5.4 Control Material Changes and Process Compatibility

Chemical replacement, supplier changes, and base-material changes require evaluation. Changes to anodes, racks, or equipment also require a new impact review.

Change validation should cover electroless copper continuity, plating distribution, appearance, bonding condition, and hole reliability. Compatibility with later surface finishing also requires review.

Unvalidated material replacement should not enter mass production directly. Sample validation followed by a small production run provides better risk control.

6. Use Inspection Evidence to Locate Defects and Close the Loop

Inspection does more than screen out defective boards. Inspection results should also feed back into equipment, parameters, and material management. This process turns one abnormality into a basis for continuous improvement.

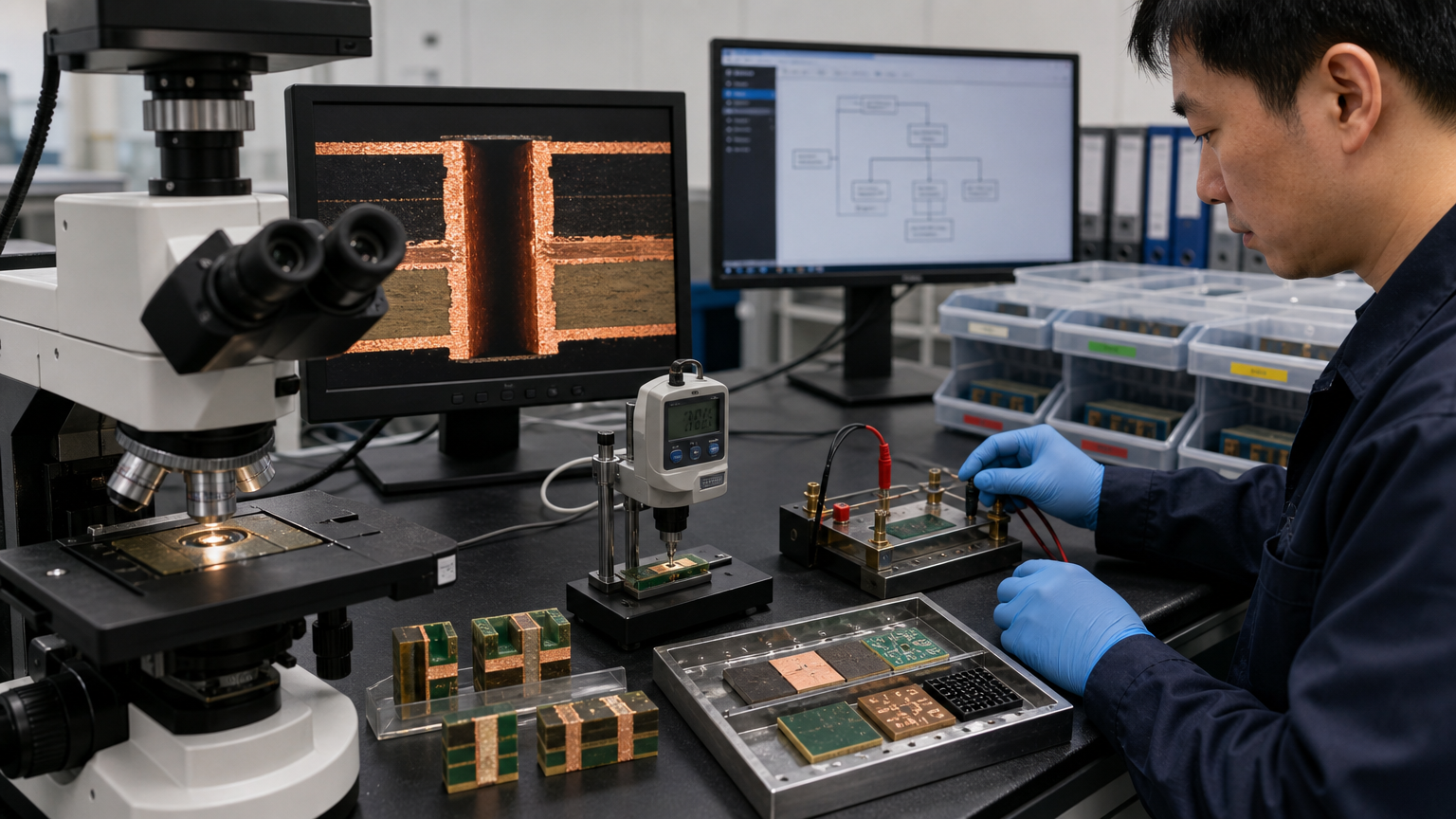

6.1 Use Microsections to Inspect Hole Walls and Copper Structure

Metallographic or microsection analysis can show hole-wall copper thickness and copper-layer continuity. It can also reveal voids, cracks, local thin copper, and abnormal inner-layer connections.

The section locations should cover representative areas. Different rack positions and hole structures should also enter the sampling plan. The exact plan should follow customer specifications, applicable standards, and product risk.

6.2 Use Thickness Distribution and Hole Coverage to Assess Uniformity

Do not measure board copper thickness at one location only. Engineers should review differences between circuit areas, large copper areas, board edges, and board centers. Compare hole-entrance and hole-center copper thickness as well.

The term microdistribution can describe the relationship between hole deposition and surface deposition. Engineers must interpret this indicator together with hole size, board thickness, and plating method.

The project should not apply a standard acceptance ratio that ignores board structure. Final requirements must return to the product design and customer specifications.

6.3 Confirm Results with Visual, Electrical, and Reliability Tests

Visual inspection can find burning, rough deposits, nodules, and abnormal particles. Continuity testing can help confirm circuit connections. Copper-layer bonding and thermal-stress validation can provide further reliability evidence.

Later surface finishing also requires compatibility review. Some plating defects may become more serious during etching, soldering, or thermal cycling.

Visual acceptance cannot replace hole-reliability validation. Test methods should follow customer documents, applicable IPC documents, material information, and the project plan.

6.4 Link Abnormal Results Back to Equipment, Parameters, and Materials

After finding an abnormality, isolate the related lot first. Then review production time, bath condition, equipment records, rack records, and material batches.

Engineers should also define the risk range under the same bath, program, and racking method. Retain samples and arrange retesting when necessary.

After corrective action, verify that the result remains stable. Inspection creates real value only when it closes the process loop.

7. How to Evaluate a PCB Supplier’s Full Copper-Plating Capability

Do not evaluate a supplier by plating-line photos alone. Engineering and procurement teams should confirm whether the supplier understands the relationships between materials, hole structure, pretreatment, electroless copper, and electrolytic copper.

The supplier should explain how its equipment matches the board type. It should also explain how the bath is analyzed and replenished. Inspection records, test-panel results, and corrective-action records should enter the audit as well.

For high-aspect-ratio holes, blind vias, heavy copper, and complex stack-ups, the supplier should provide a validation plan based on real boards. Copper plating becomes easier to stabilize when the data, equipment, materials, and inspection results match each other.

7.1 Submit PCB Data for a Copper-Plating Process Review

If the project includes small holes, high-aspect-ratio holes, blind vias, heavy copper, or complex stack-ups, describe these requirements during quotation. The engineering team can first assess pretreatment risks. It can then define the electroless copper, electrolytic copper, test-panel, and inspection routes.

Submitting Gerber or ODB++ files, drill files, stack-up data, board thickness, hole-size tables, and target copper thickness helps the supplier build a more accurate pcba manufacturing process assessment. Material information, operating environment, volume range, and customer acceptance requirements also help define the validation focus.

Final copper thickness, process parameters, lead time, certifications, and quality commitments should follow the actual project data, sample validation, and confirmed results from both sides. Choosing a supplier with complete process records and engineering assessment capability can reveal copper-plating risks earlier.

Conclusion

PCB copper-plating quality does not come from one equipment parameter or one chemical alone. It requires support from the board material, hole structure, pretreatment, equipment condition, bath management, process parameters, and inspection records.

For pcba manufacturing projects, engineers should define the quality targets first. They should then build the test-panel, inspection, and traceability logic. This approach turns copper-plating challenges into a manufacturing process that can be managed, validated, and improved continuously.
