What is the SMT Process in PCB?

Surface Mount Technology (SMT) is a key process in modern electronics manufacturing. This technology allows us to directly mount electronic components on the surface of Printed Circuit Boards (PCBs) without the need for drilling holes. This not only saves space but also significantly improves production efficiency and product reliability. In this article, we’ll delve into the SMT manufacturing process, from component and PCB preparation to solder paste printing, solder paste inspection, component placement, reflow soldering, automated optical inspection, and finally, cleaning and inspection. Let’s explore these steps together!

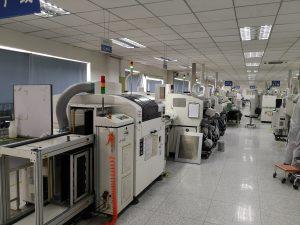

What is Surface Mount Technology (SMT)?SMT surface mounting workshop

Surface Mount Technology (SMT), initially called planar mounting, was developed by IBM in the 1960s and applied to the manufacturing of small computers, replacing traditional through-hole technology (THT). Although SMT only achieved a 10% market penetration rate in 1986, it quickly became popular. SMT components are designed with small tabs, and solder is used to connect the Surface Mount Devices (SMDs) to the PCB surface. In the THT era, components were installed by drilling lead holes into the PCB and then soldering the fixtures. SMT bypasses the drilling step, allowing components to be quickly mounted on the PCB surface, greatly reducing assembly time.

Due to the need for precision in the SMT assembly process to produce high-quality Surface Mount Assemblies (SMAs), manual SMT assembly can be very tedious and time-consuming. Therefore, to improve efficiency, most SMT manufacturing is done using automated assembly machines, especially in large-scale production. SMT components are much smaller than through-hole components, making it possible to produce modern, sleek electronic devices. Nowadays, almost all electronic devices, from toys to kitchen appliances to laptops and smartphones, use SMT technology.

SMT Manufacturing Process

1. SMC and PCB Preparation

Before the SMT manufacturing process begins, all Surface Mount Components (SMCs) need to be prepared. These components are typically supplied to the pick-and-place machine through reels or tubes. It is crucial to ensure that the components are undamaged and that there is sufficient inventory, as any issues can affect the production schedule.

Equally important is the preparation of the PCBs. The PCBs need to be cleaned and inspected to ensure that the surface is free from dirt and impurities. The cleaning step mainly involves removing dust and oil from the surface to ensure soldering quality. The inspection includes checking that the PCB pads are intact, the circuitry is not broken, and there are no other physical defects. Additionally, the PCB must be flat without warping, which is crucial for the subsequent placement and soldering process.

2. Solder Paste Printing

Solder paste printing is the first step in the SMT process. Solder paste, a thick substance containing solder powder and flux, is precisely printed onto the PCB pads through a stencil. The stencil has openings corresponding to the pads, and the solder paste is evenly spread onto the PCB using a squeegee. This process is similar to screen printing and requires the solder paste to be applied with accurate thickness and position to ensure subsequent soldering quality.

3. Solder Paste Inspection (SPI)

After solder paste printing, solder paste inspection (SPI) is necessary. This process uses automated optical equipment to check the thickness, position, and volume of the solder paste to ensure that the amount of solder paste on each pad is appropriate. Insufficient or excessive solder paste can affect subsequent soldering quality. The SPI system uses high-precision cameras and computer algorithms to quickly and accurately detect the distribution of solder paste and alert if problems are found.

4. Component Placement

The pick-and-place machine is one of the most critical pieces of equipment in the SMT manufacturing process. It uses high-speed robotic arms and precision vision systems to pick components from feeders and accurately place them onto the PCB pads coated with solder paste. The speed and accuracy of the pick-and-place machine directly affect production efficiency and product quality.

During the placement process, different types of components need to be placed in a specific order and position to ensure the functionality and performance of the circuit. The programming and debugging of the pick-and-place machine are crucial at this step to ensure that each component is accurately placed in its designated position. Modern pick-and-place machines also have automatic correction features that can make real-time adjustments when misalignments are detected.

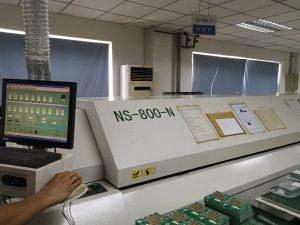

5. Reflow SolderingReflow

Reflow soldering is the process of heating the solder paste to melt it and connect the component leads to the PCB pads. The reflow oven has multiple temperature zones, gradually heating and cooling to achieve soldering. Setting the temperature profile is crucial, as different types of components require different temperature profiles. For example, some sensitive components may need a lower peak temperature, while others require a higher temperature to ensure good soldering.

After reflow soldering, the PCB needs to be inspected to check the quality of the solder joints, ensuring that each solder joint is full and bright, without defects such as cold solder joints or bridging. High-quality soldering ensures the reliability and durability of the circuit. Soldering quality inspection is usually carried out through visual inspection, X-ray inspection, and electrical testing.

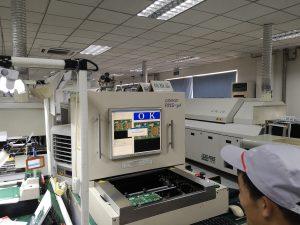

6. Automated Optical Inspection (AOI)

AOI uses optical systems to perform a comprehensive inspection of the soldered PCB. It primarily checks the quality of solder joints, the correctness of components, and their positions. Using high-resolution cameras and image processing technology, AOI can quickly identify soldering defects and component errors. Modern AOI systems also have learning capabilities, continuously optimizing detection algorithms to improve accuracy and efficiency.

If AOI detects a problem, the PCB is marked and sent to a rework station. Technicians use inspection reports to repair the PCB, ensuring each one meets design specifications. Common rework measures include re-soldering, component replacement, and solder joint repair.

7. Cleaning and Inspection

Some PCBs require cleaning to remove residual flux and other impurities. Cleaning can be done using ultrasonic cleaning, chemical cleaning, and other methods. The cleaned PCB surface is smooth, facilitating subsequent coating and packaging. During cleaning, it is important to select suitable cleaning agents and methods to avoid damaging the PCB and components.

The final step is a comprehensive final inspection of the PCB, including electrical testing and functional testing, to ensure that each PCB works correctly. Electrical testing checks the continuity and impedance of the circuits, while functional testing simulates the actual working environment to verify the performance and reliability of the circuit board. These rigorous inspections ensure the high quality and reliability of the product.

Conclusion

Surface Mount Technology (SMT) is an indispensable process in modern electronics manufacturing, significantly enhancing production efficiency and product quality. Through a series of precise manufacturing steps, from component and PCB preparation to solder paste printing, component placement, reflow soldering, and final inspection and cleaning, every step is crucial. SMT technology not only makes electronic products more compact and powerful but also drives the rapid development of the entire electronics industry.

Hopefully, this article has given you a comprehensive and in-depth understanding of the SMT process. Or if you would like to learn more about related topics, please feel free to contact us.
